S80 AWD L5-2.5L Turbo VIN 59 B5254T2
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
54/3.1
54/3.1

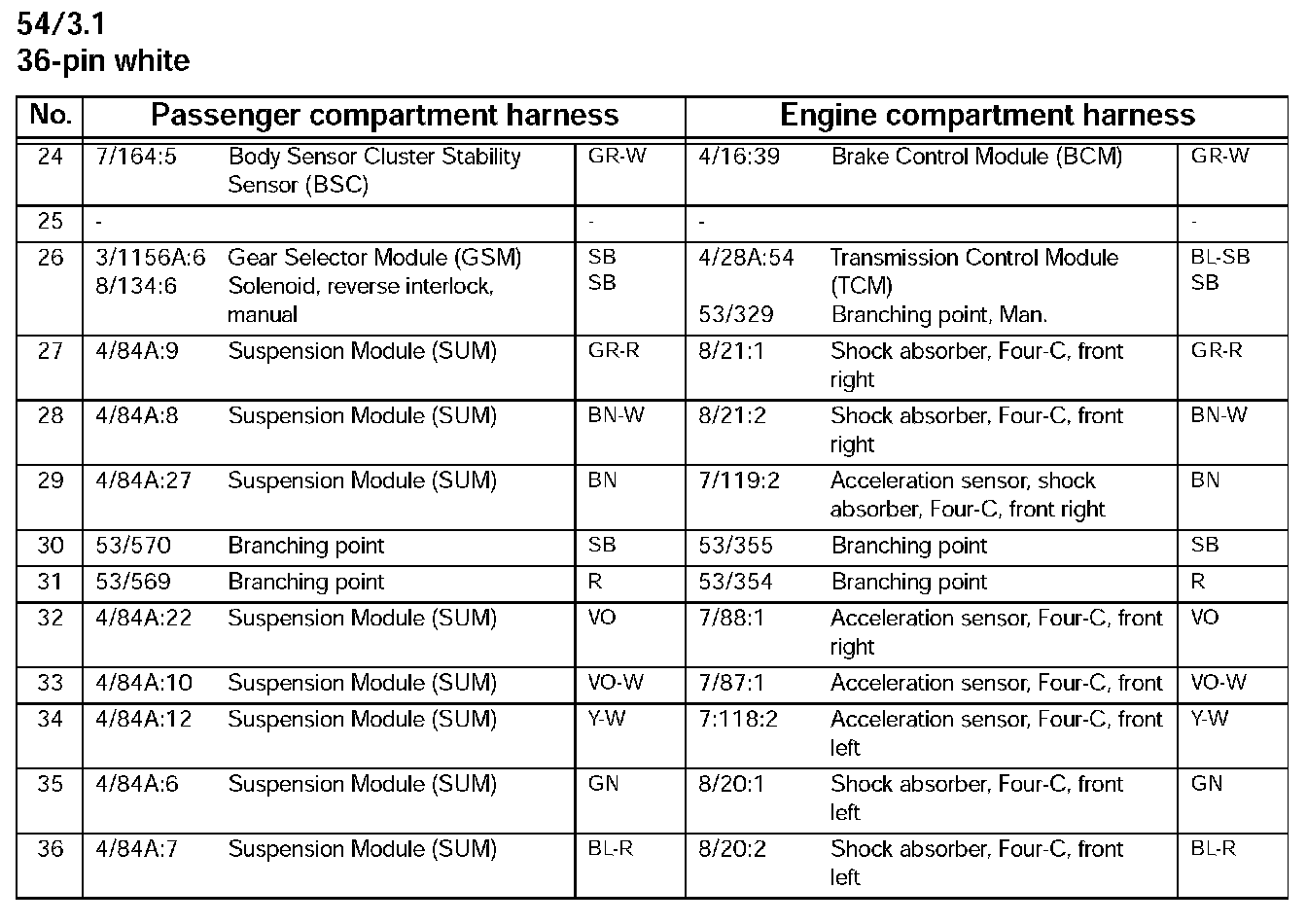

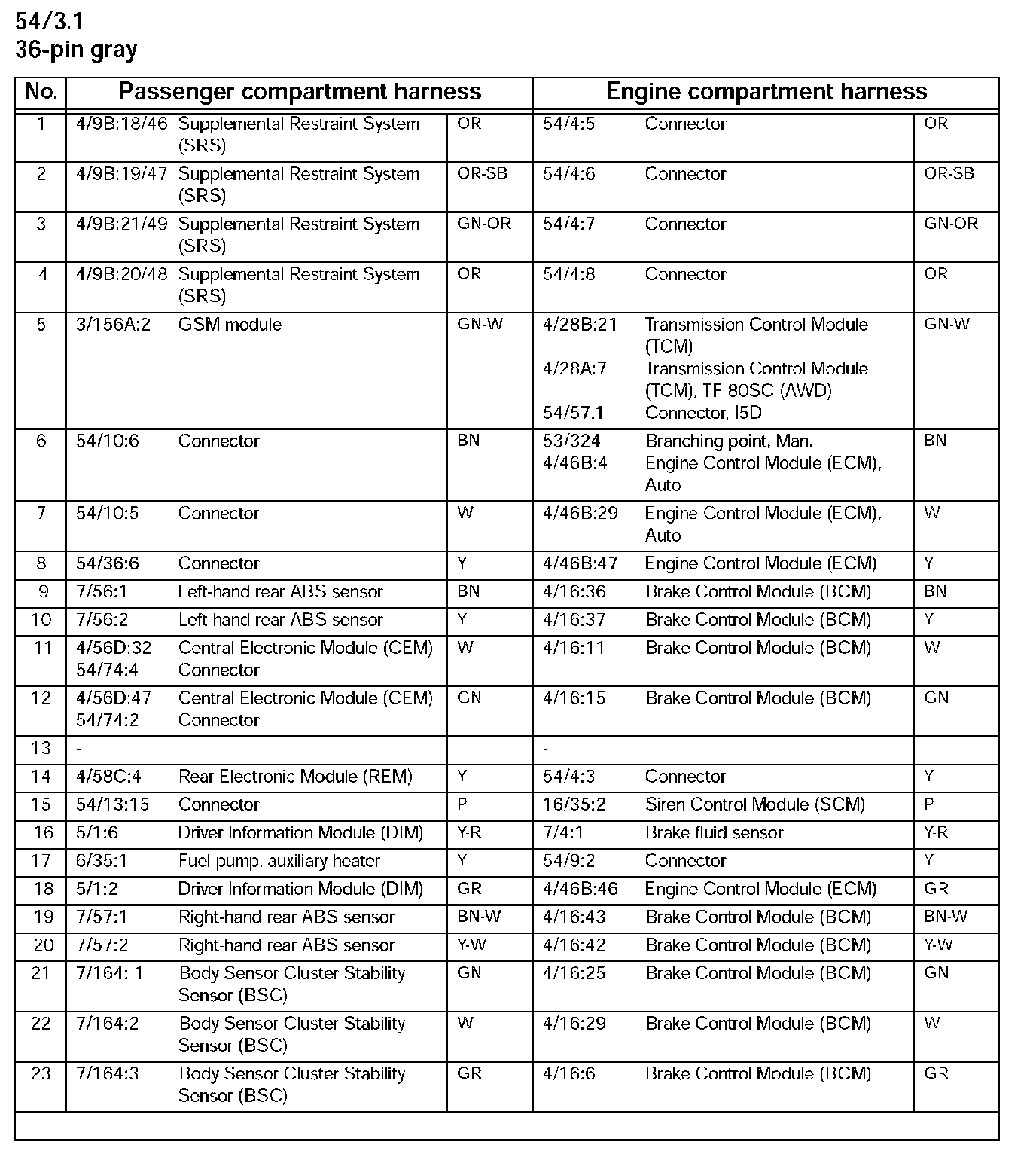

54/3.1 Part -1:
54/3.1 Part -2:
54/3.1 Connector:
