Vacuum Pump: Service and Repair

Replacing the vacuum pump

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work
Ignition off.
Disconnect the battery negative lead. See: Battery, disconnecting Battery Disconnecting.

Removing the vacuum pump

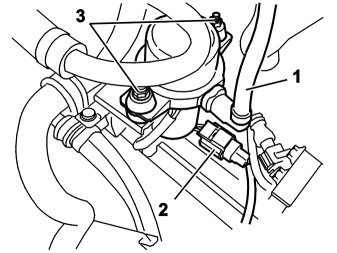

Remove:
- the hose (1)
- the connector (2).
- the 2 x screws (3)
- the pump.

Note! For tightening torques, see: Tightening torque Tightening Torque.

Fitting of vacuum pump

Install:
- the pump.
- the 2 M6 screws.
- the hose
- the connector.

Finishing
Install the battery negative lead according to: Battery, disconnecting Battery Disconnecting.
