Body and Frame: Service Precautions

Safety Information For Emergency Services Personnel

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

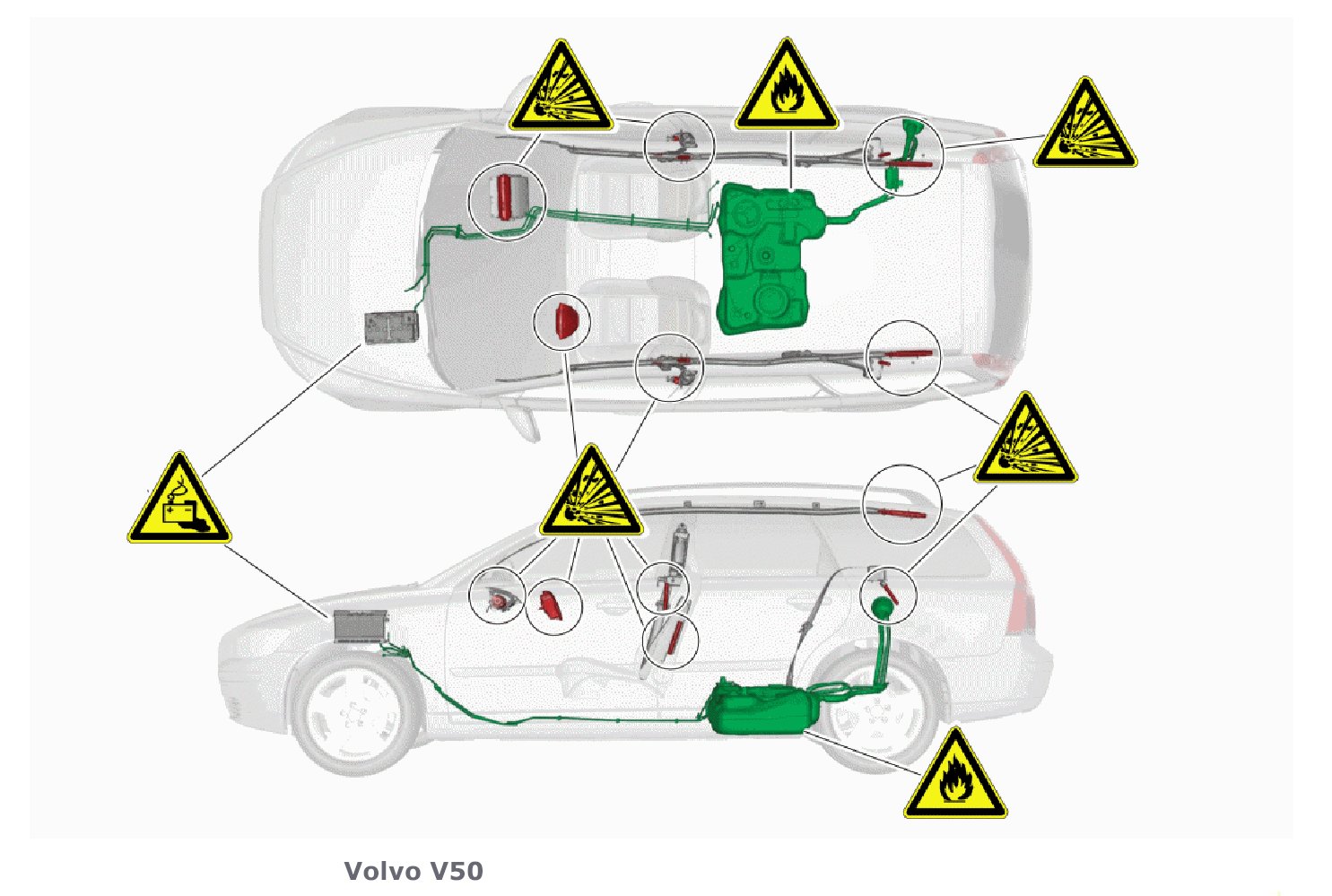

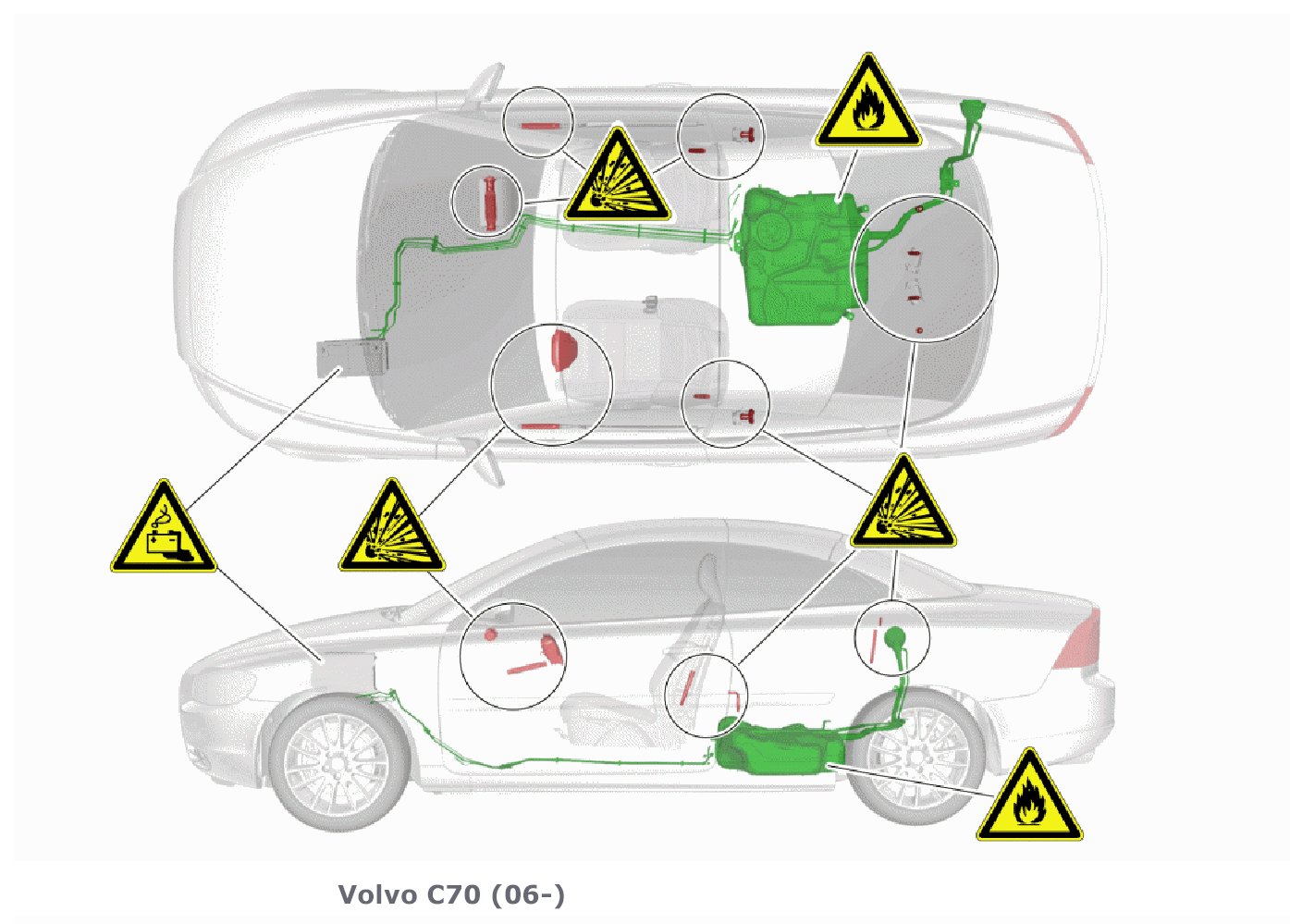

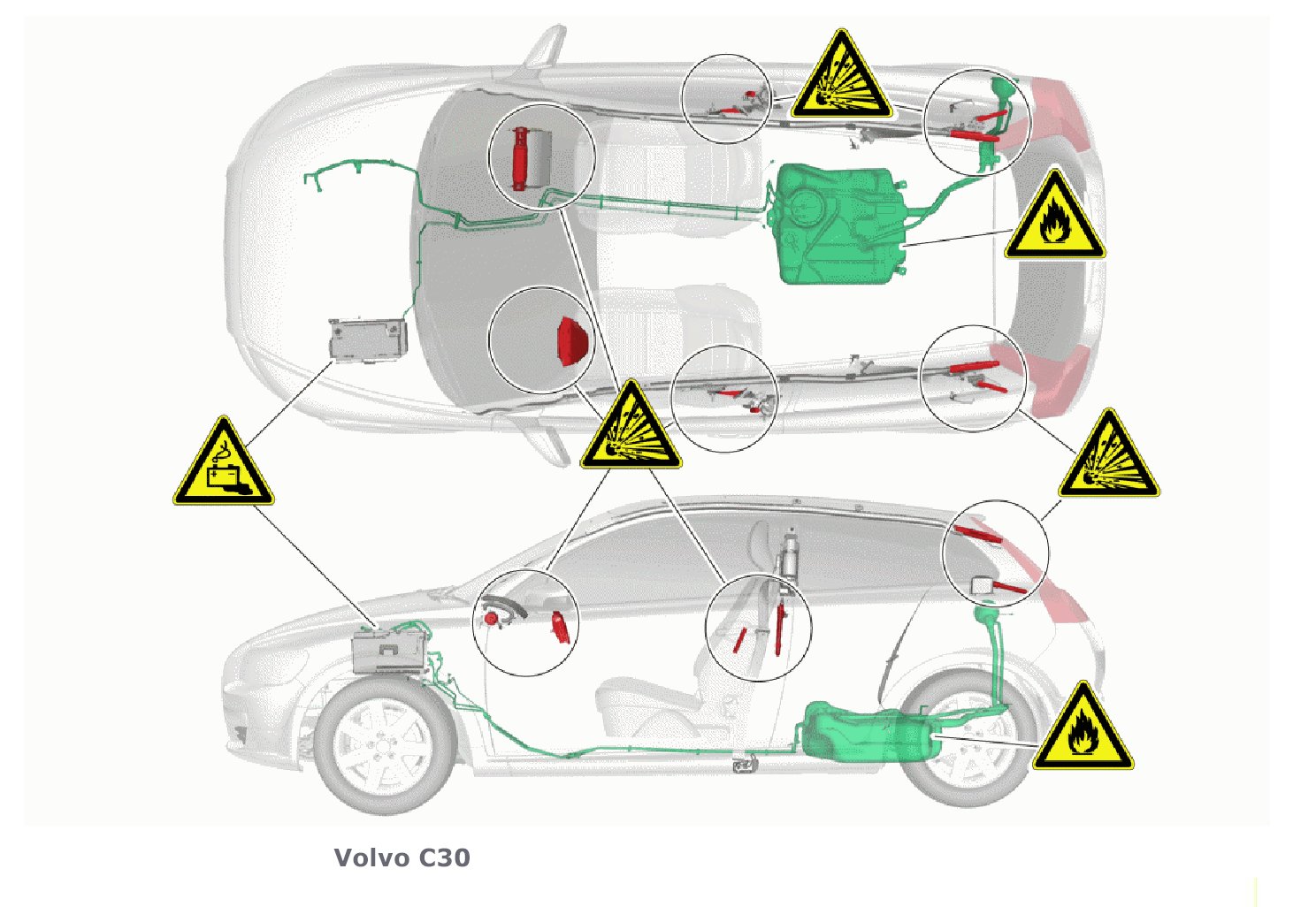

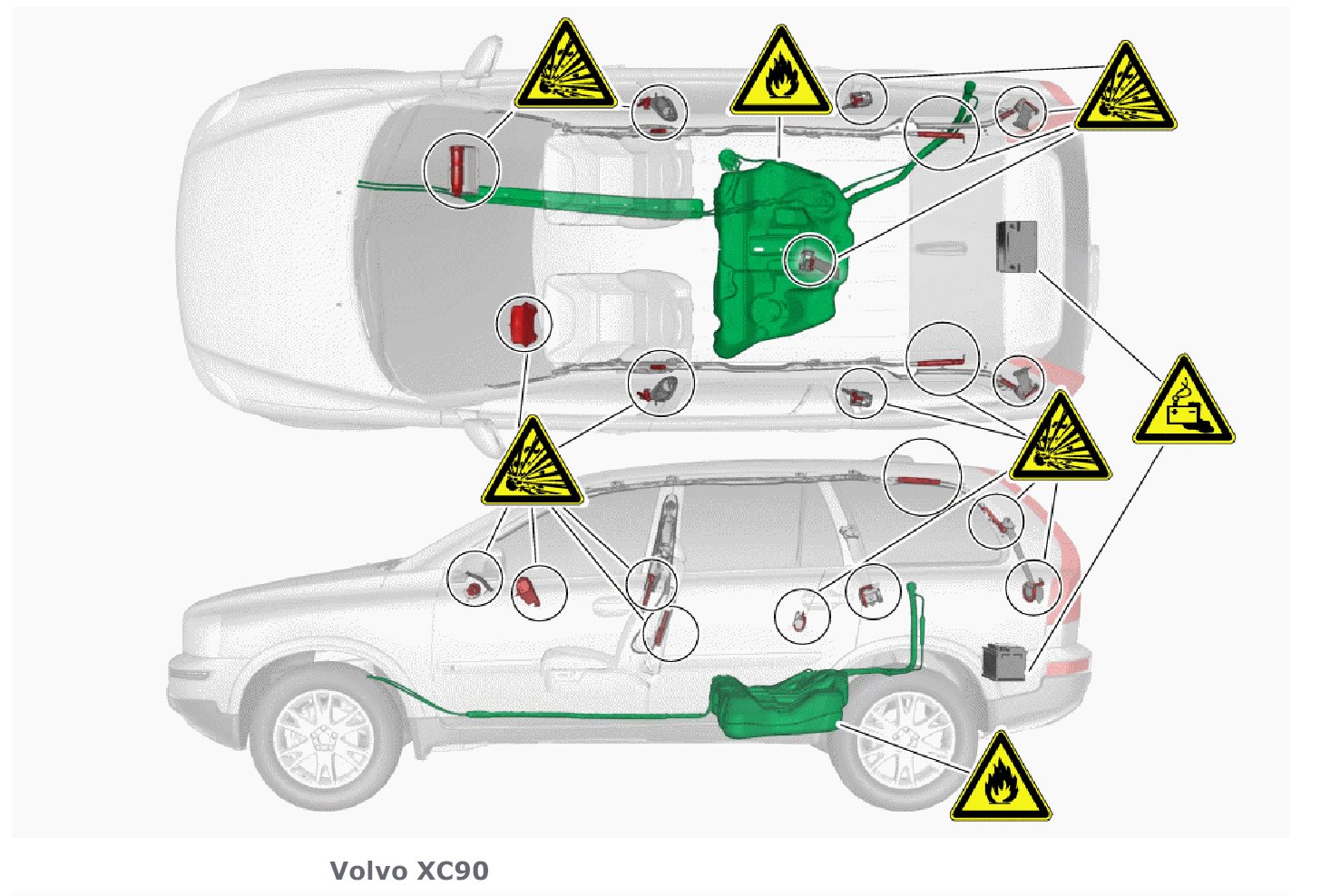

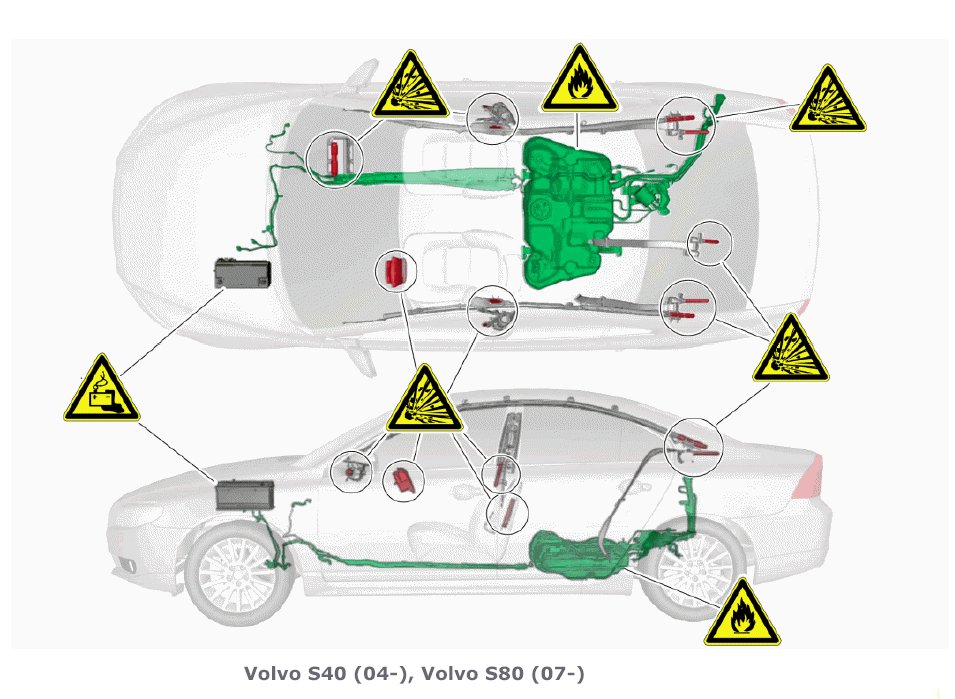

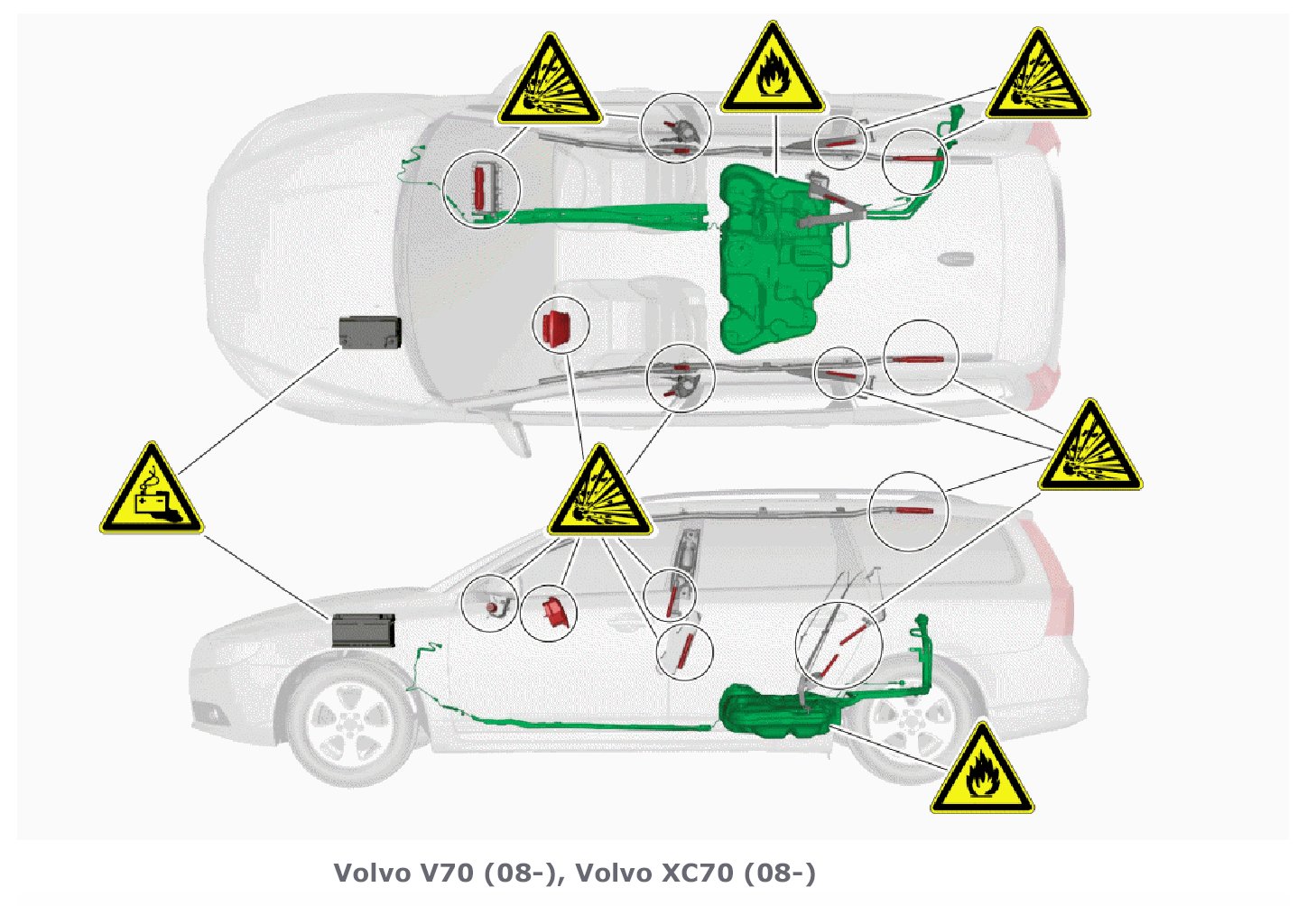

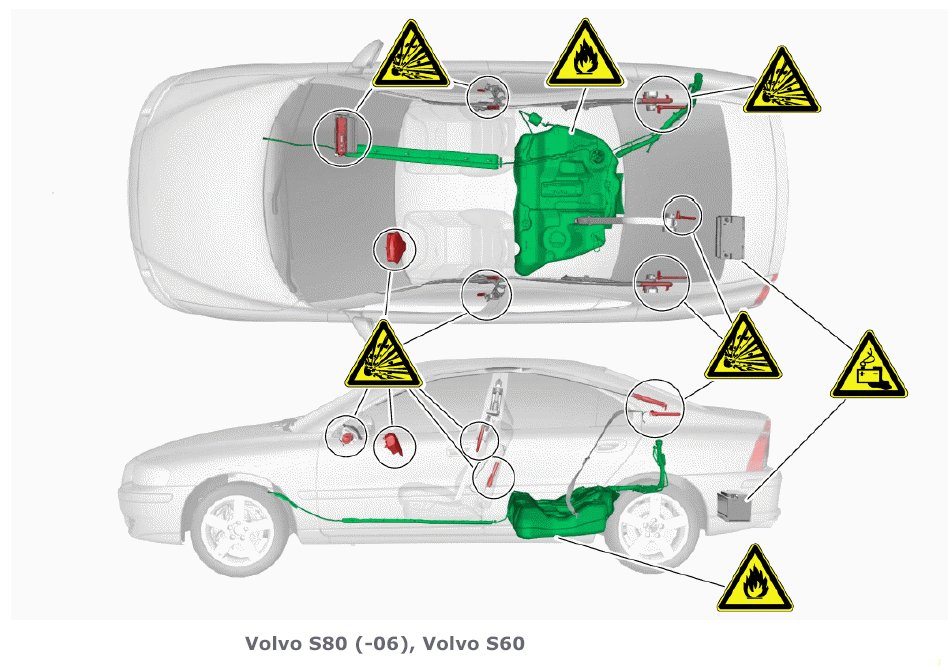

This document contains information about and location of the different types of stored energy (e.g., pyrotechnical, fuel, and electric voltage) found in Volvo's different models. All emergency services personnel should be familiar with this document to avoid accidental activation or ignition during rescue actions. The information is not exact, it shall be regarded as general.

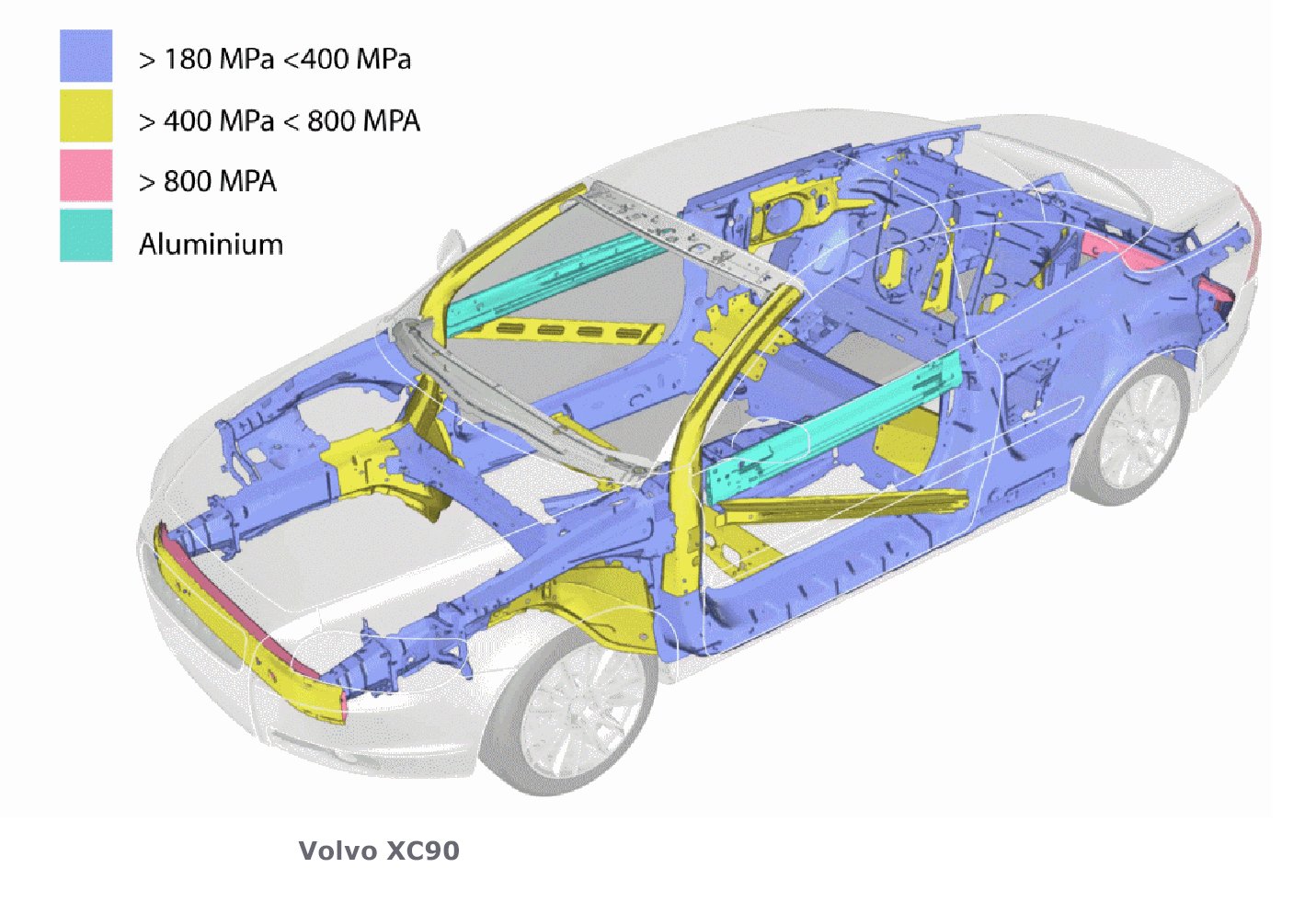

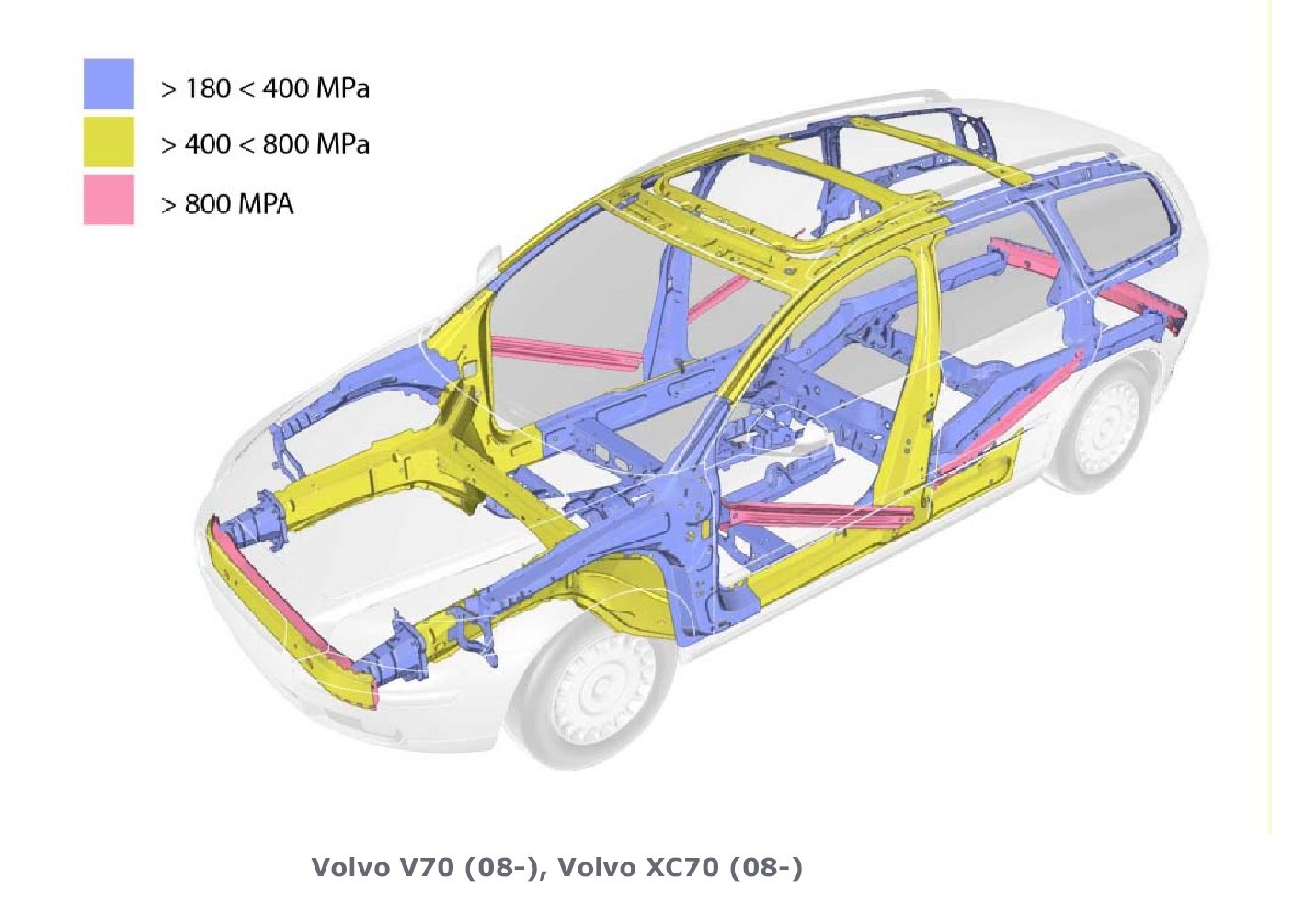

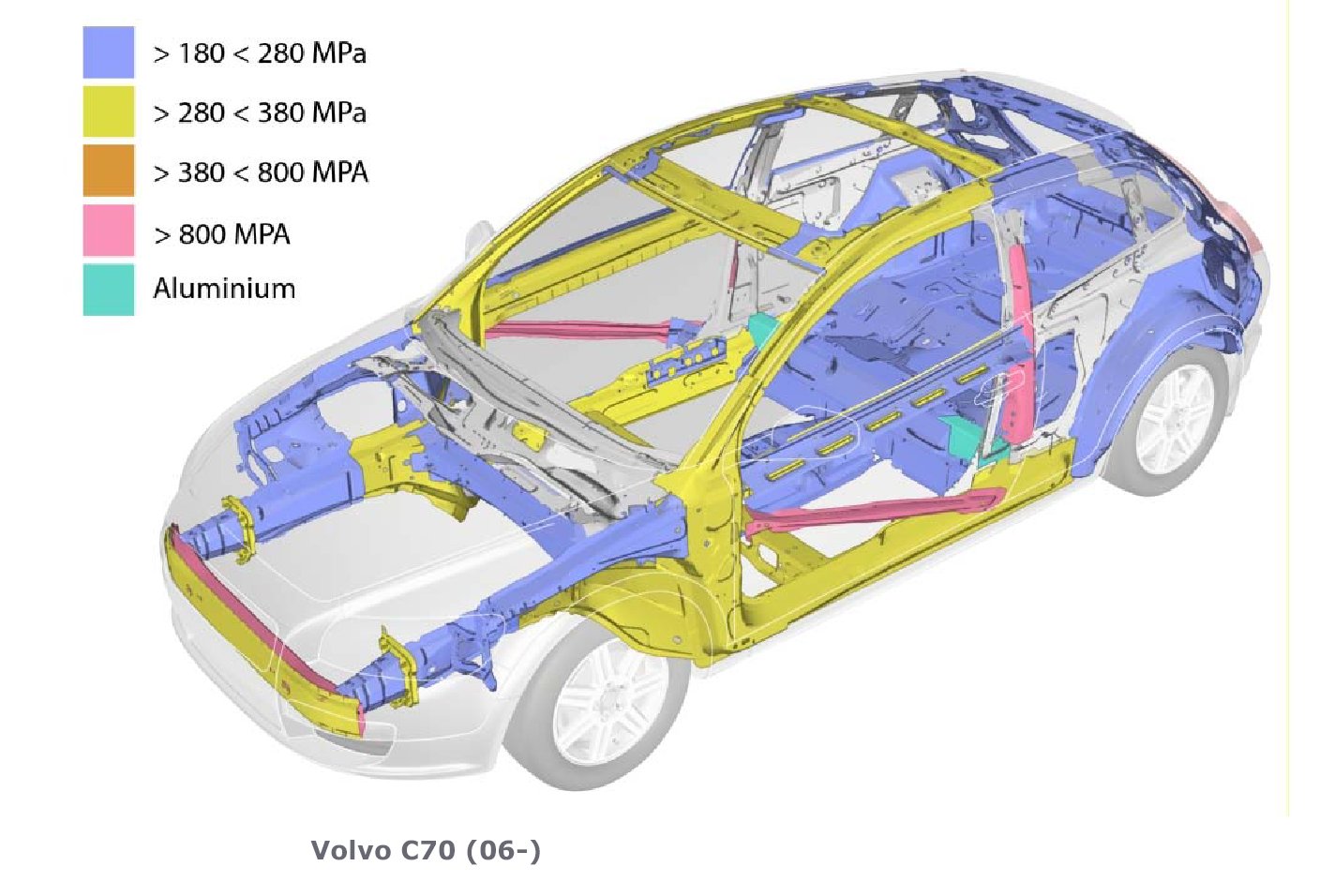

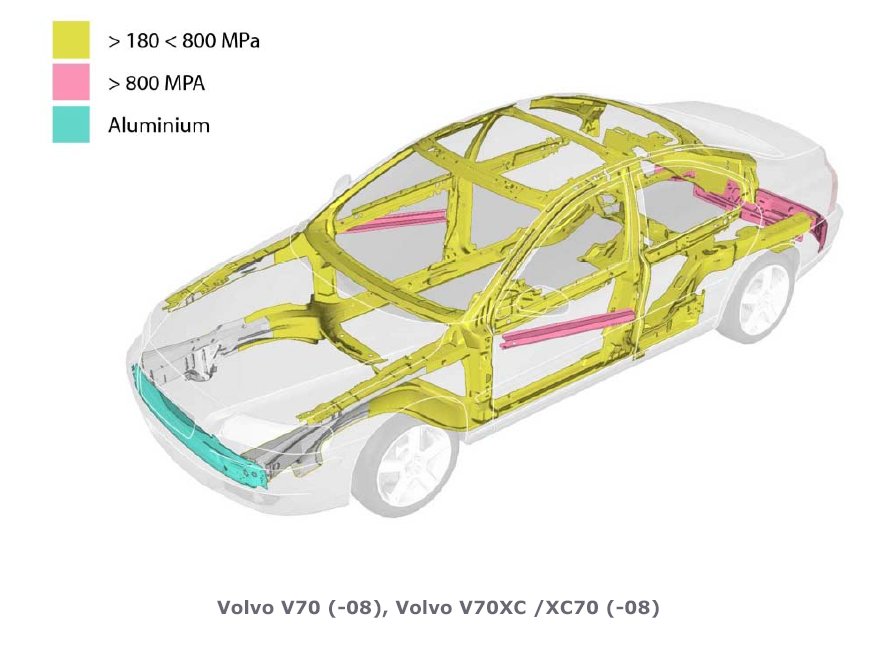

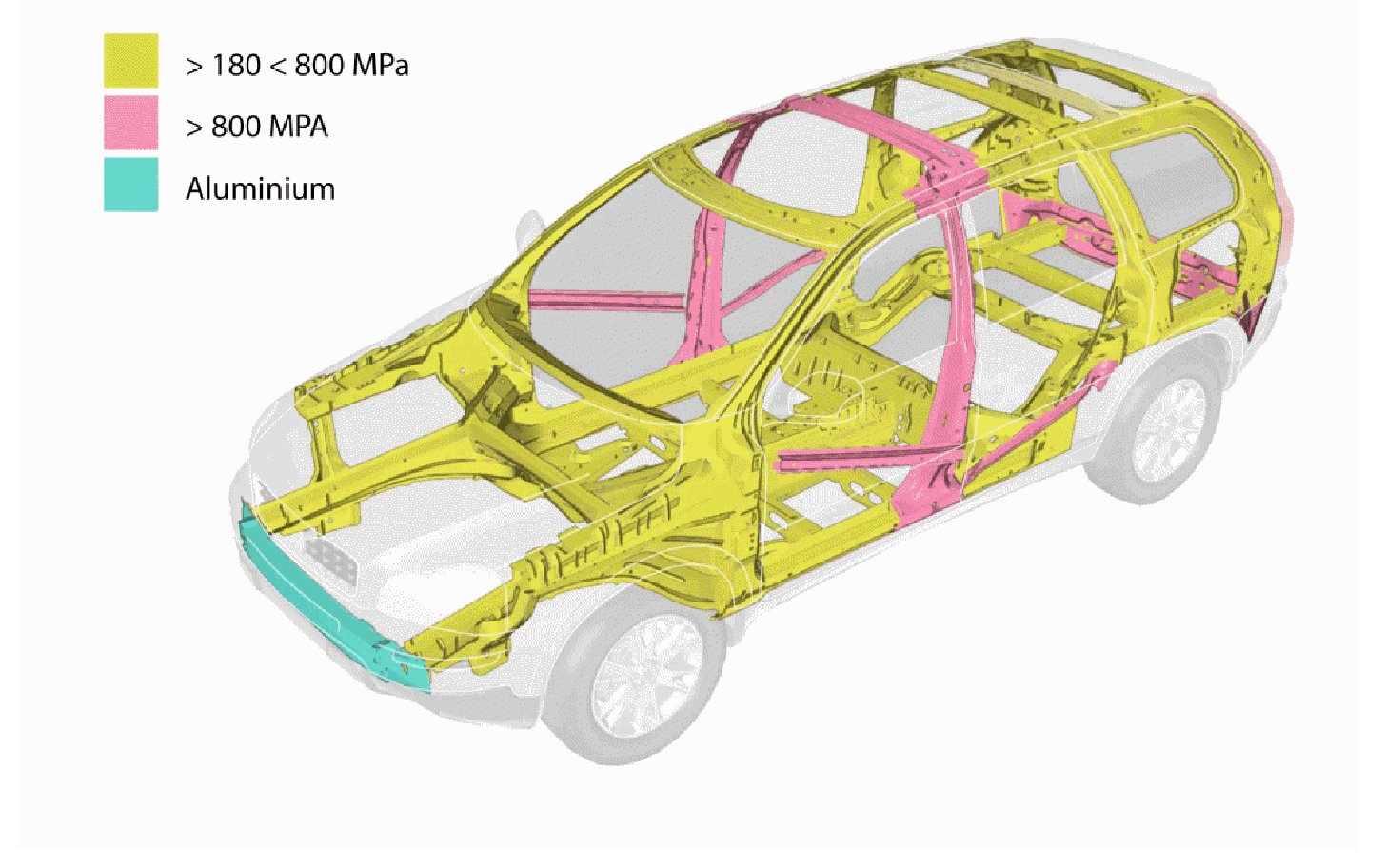

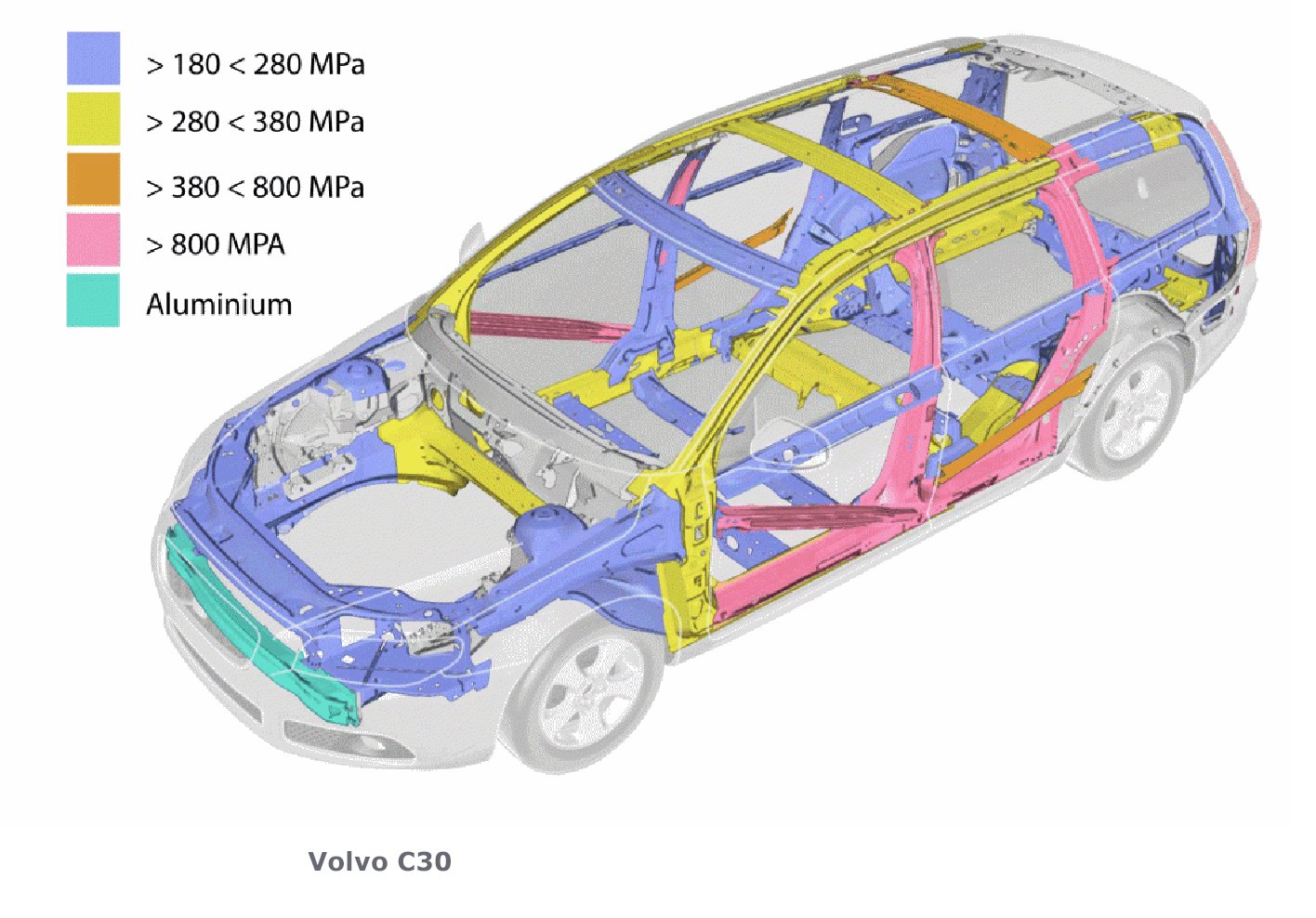

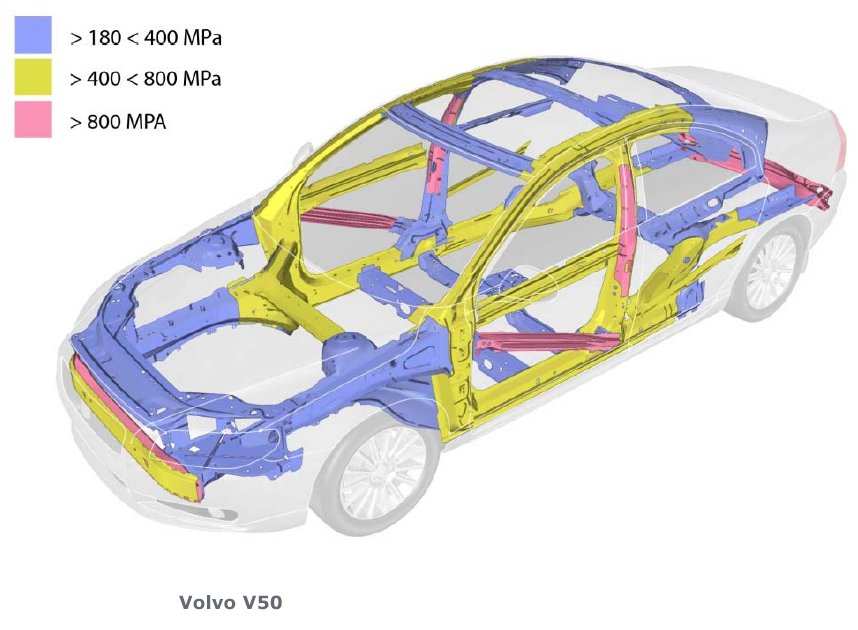

NOTE: Hardness of the material in the members may vary between different models. In illustrations where several models appear with the same body structure, the variant with the hardest material is always shown.
