Head Restraint With TV Screen, Replacing

Head restraint with TV screen, replacing

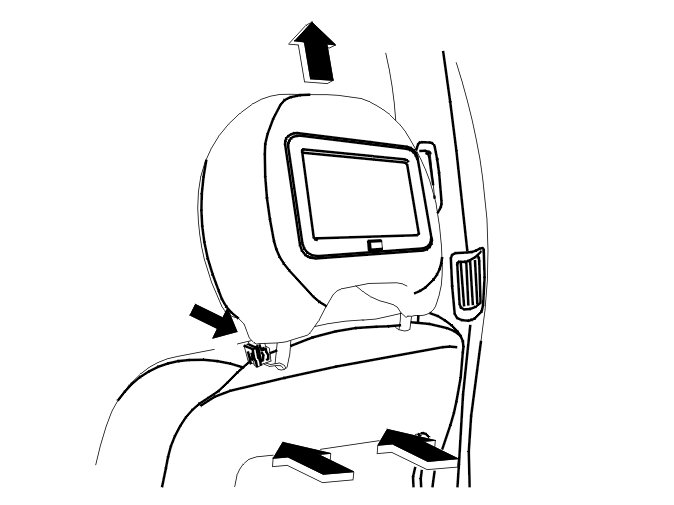

Removing head restraints




Press in the two catches. Press through the upholstery.
Lift up the head restraint approximately 3 cm.
Pull the connector out of the padding. Disconnect the connector.
Pull up the entire head restraint.

Installing head restraints
Position the head restraint in the guide sleeves. Connect the connector and press it into place in the head restraint padding.
Press down the head restraint until the catches engage.

Note! Lift the head restraint to check that the catches have engaged. It must not be possible to move the head restraint upwards.
