Checking Leaks from the Sun Roof

Checking leaks from the sun roof

Checking water leaks
If water stops in the drainage frame, check that the drain hoses are not clogged.
Check that the glass panel is properly adjusted and the sun roof is properly calibrated.

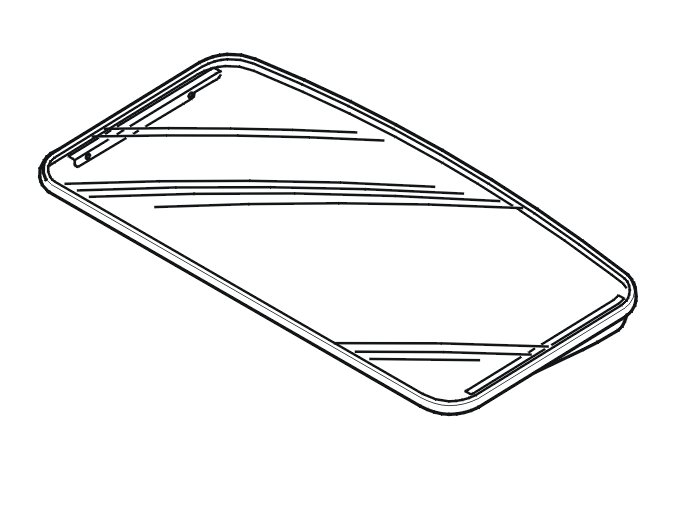

If the glass panel or its seal is damaged, replace the glass panel.
Check the connection to the front drain channel for leaks. Remedy any leaks with sealant.
Check drain hoses and their connections.
Remedy as necessary:

Other information
- Sun roof, adjusting Adjustments
- Sun roof, leak test Component Tests and General Diagnostics
- Glass sun roof, replacing Service and Repair





Select Continue once the fault has been remedied.

Continue - Functionality check

-------------------------------------------------

Functionality check
Check that the sun roof does not leak.

Is the sun roof function OK?

Yes - FAULT FOUND

No - Trouble-shooting information

-------------------------------------------------

Trouble-shooting information




Information

Fault-tracing information
The fault should be diagnosed and remedied. Since this is not the case the fault-tracing process has failed.
Complete the fault-tracing for those fault or try again.

Do you want to terminate fault-tracing at this time?

Yes - Exit fault-tracing

No - Attempt New Test

------------------------

Attempt New Test - Checking water leaks

-------------------------------------------------
