Center Console, Replacing

Center console, replacing

Center console, replacing

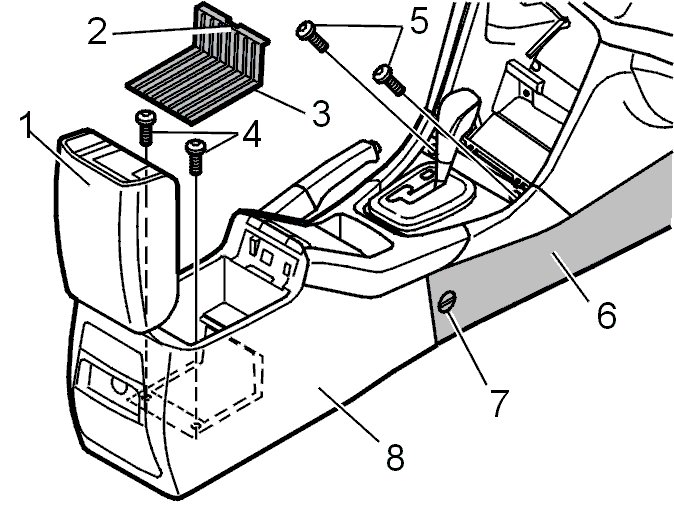

Remove:
- the parking brake panel. See Center console components Center Console Components
- the gear selector panel. See Center console components Center Console Components.




- four screws.
- the side panel. See Center console components Center Console Components
- rear ashtray. See Center console components Center Console Components
- the connector
- the center console.

Install:
In reverse order.
Transfer those components that do not need to be replaced.
