Tunnel Carpet













Tunnel carpet










Tunnel carpet

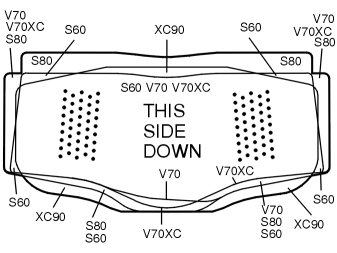

- Cut the underneath of the tunnel carpet at the perforations for the relevant model. Cut so that the model designation of the car remains along the outer edges of the tunnel carpet.

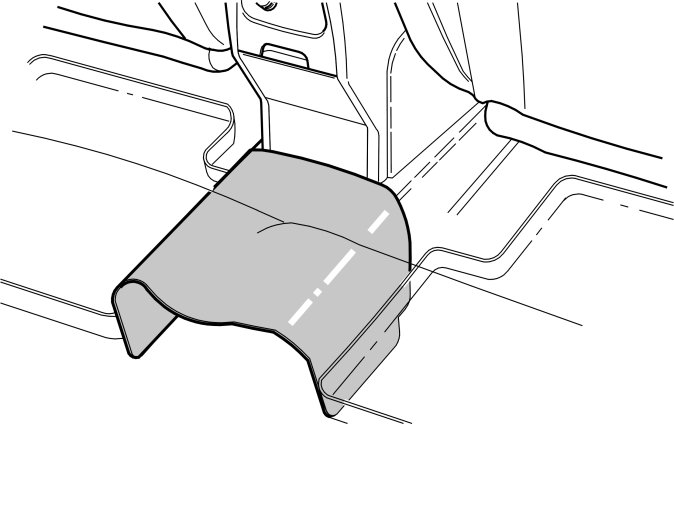

- Position the tunnel carpet on the transmission tunnel in the rear seat compartment so that an equal amount of the tunnel carpet is positioned on each side of the tunnel
- Fold the short sides of the floor carpet upwards nearest the tunnel. Position the tunnel carpet underneath the floor carpets
- Fold back the floor carpets.
