Handle Outer Tailgate/Trunk Lid, Replacing

Handle outer tailgate/trunk lid, replacing

Note! The illustrations in this service information are used for different model years and / or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removing the exterior handle from the tailgate/trunk lid

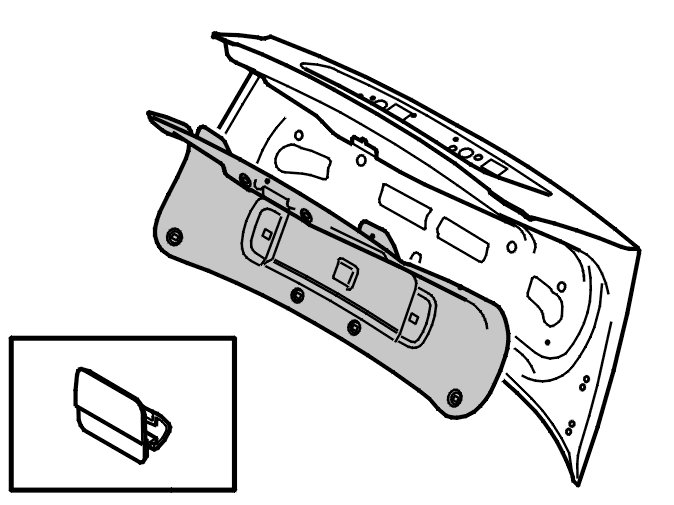

Remove:
- the tailgate inner handle
- the inner upholstery for the tailgate.




- the 4 nuts
- the outer handle for the tailgate
- the connector.

Installing the exterior handle for the tailgate/trunk lid

Install:
- the connector
- the outer handle on the tailgate
- the 4 M6 nuts. Tighten
- the inner upholstery for the tailgate
- the inner handle for the tailgate.
