Hood Catch, Replacing

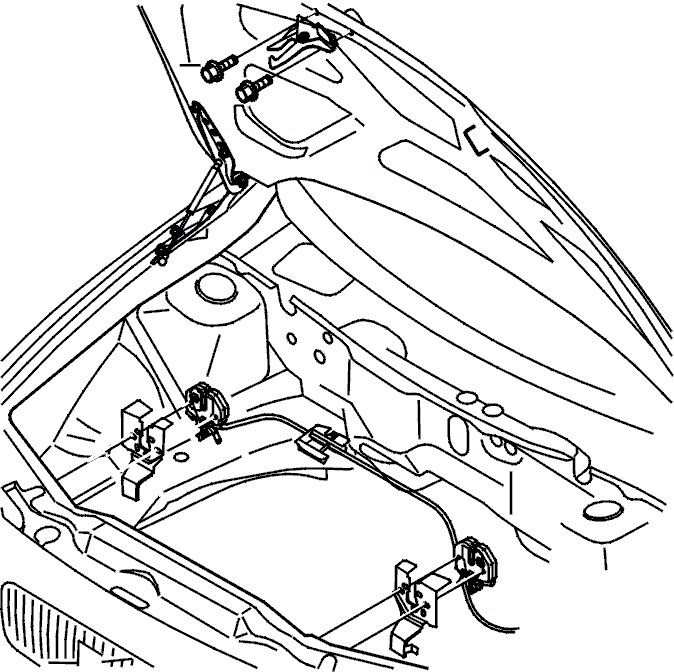

Hood catch, replacing

Hood catch, replacing

Remove:
- turn signal lamp. See Turn signal lamps, replacing Service and Repair
- the headlamps. See Headlamps
- the front section. See Front end Service and Repair




- the two screws / locks.
Unhook the cable.
Replace the catch.

Install:
In reverse order.

Hint: Do not tighten the bolts before the hood is closed.
