Rear Door Handle: Service and Repair



Mechanical Cable Internal Handle Rear Side Door, Replacing

Remove the door panel. See Panel rear side door, replacing.

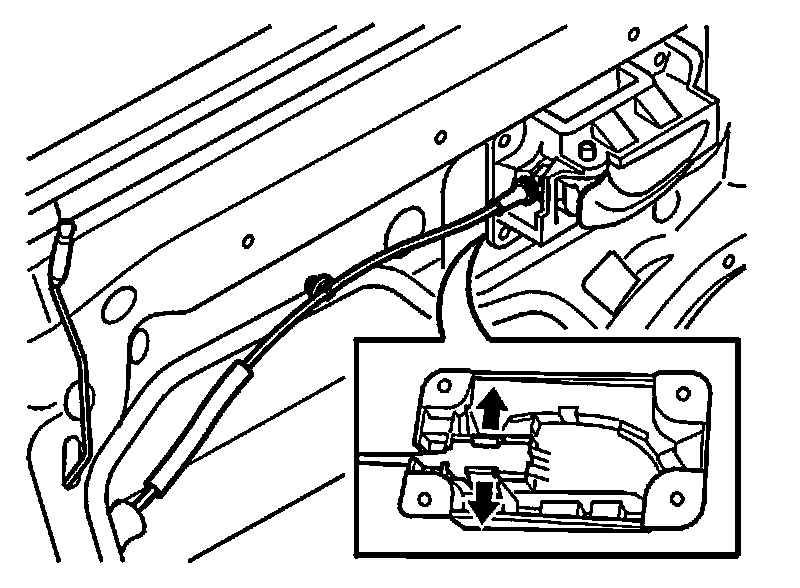

Unhook the mechanical cable at the lock. Open the lock hooks. Lift out the mechanical cable.







Install:
In reverse order.
