SIPS Block
SIPS block

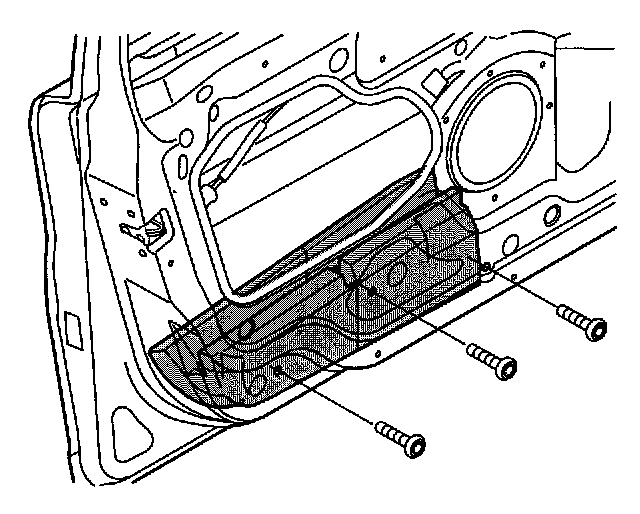

Replacing SIPS block
Remove:
- the power window mechanism according to Power windows.
- loudspeakers according to Speaker.
- three clips.
- wiring.
- SIPS block (eased out).
Install:
In reverse order.
