Front Bumper Cover / Fascia: Adjustments

Adjusting the front bumper cover

Special tools:
951 2842 Hot glue gun 951 2842 Hot Glue Gun

Note! This adjustment must always be carried out on both sides of the car.

Detaching and cleaning the bumper cover








Carefully detach the corner of the bumper cover.

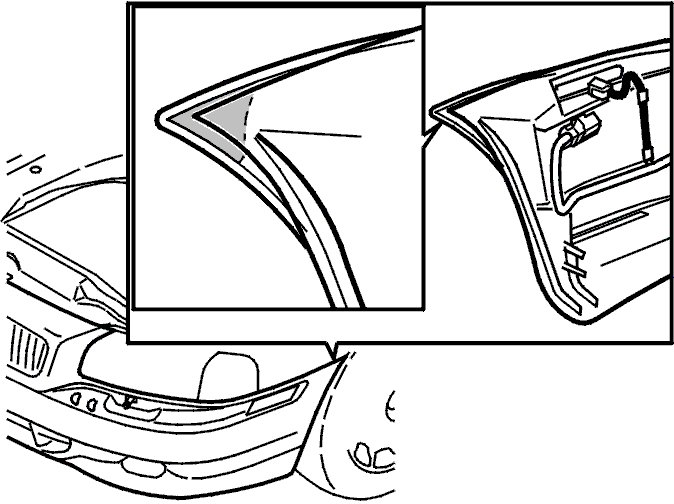

Clean the shaded area in the illustration thoroughly. Use white spirit. (The illustrations display the inside of the bumper).
Thoroughly clean using Cleaner-H.

Bonding the bumper cover

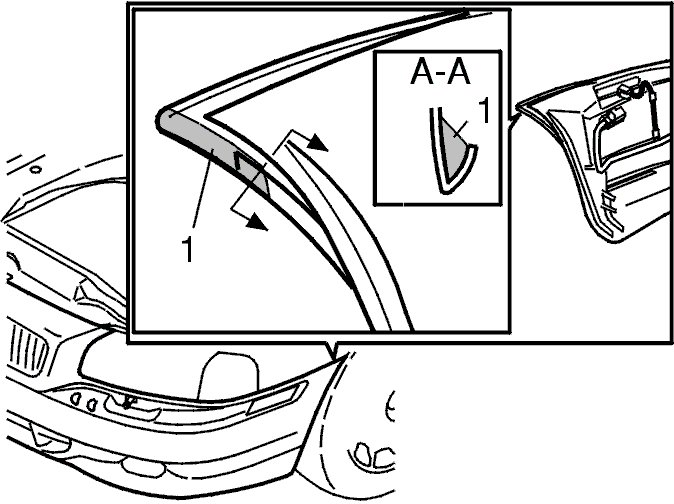

Bond the shaded surfaces displayed in the illustrations.
Bond from the upper corner and slightly down on the mounting edge (A-A).
Bond according to the upper illustration. Cover the corner using adhesive so that strands from washing brushes do not jam between the components.
Press the corners of the bumper into place. Secure for a short time until the adhesive has cured.

Hint: Work quickly so that the adhesive does not cool before securing the bumper cover.

Quickly wipe clean any visible hot adhesive.
