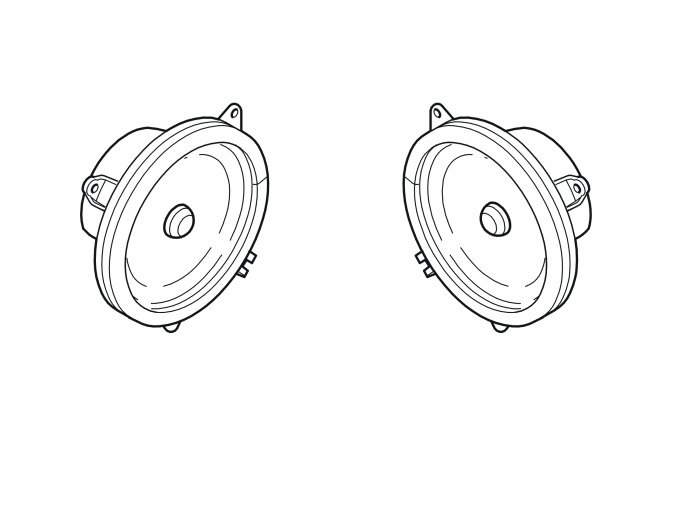

Rear Door Bass Speakers

Rear door bass speakers

Rear door bass speakers

Note! Carry out the operation on both sides.

Only applies to S60 / V70 (00-) / V70 XC (01-)

Preparations

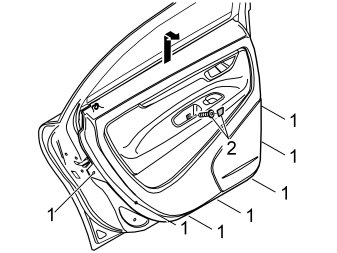

- Remove the clips (1) by pressing in the centre of the clips.
- Remove the blind cover plug (2) and the screw from under the blind cover plug
- Disconnect the door panel by sliding the panel upwards and unhooking the top edge.

Preparations

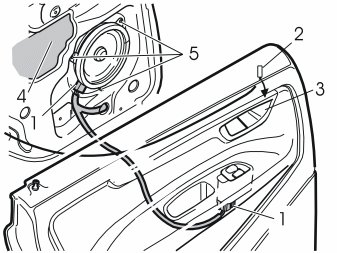

- Remove the connector (1) for the door controls
- Remove the wire (2) from the door opener (3). First bend up the catches
- Remove the panel
- Carefully remove the moisture inhibitor (4) at the front edge
- Remove the moisture inhibitor (5) covering the existing loudspeaker hole.

Installation

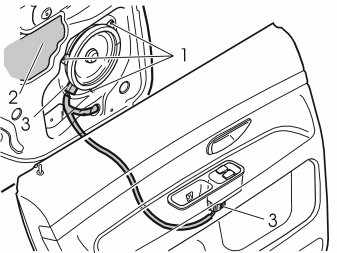

- Install the new loudspeaker. Screw the loudspeaker into place using the screws (1) and nuts (1) from the kit
- Install the moisture inhibitor (2)
- Connect the connectors (3) to the loudspeaker and the module for the door controls
- Connect the cable (4) to the door opener (5)
- Reinstall the door panel, according to Rear door bass speakers Rear Door Bass Speakers.

Applies to the S80 only

Preparations

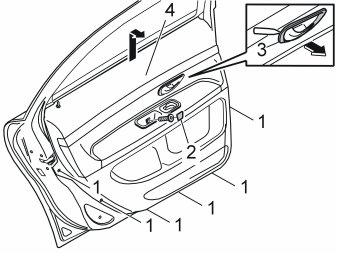

- Remove the clips (1) by pressing in the centre of the clips.
- Remove the blind cover plug (2) and the screw from under the blind cover plug
- Carefully remove the frame (3) from around the door handle. Use a plastic wedge or similar. Start at the bottom edge
- Disconnect the door panel (4) by sliding the panel upwards and unhooking the top edge.

Preparations

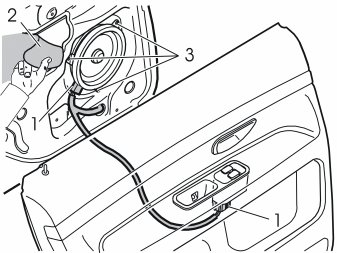

- Disconnect the connectors (1) for the door controls and from the existing loudspeaker
- Carefully remove the moisture inhibitor (2) at the front edge.

Applies to loudspeakers already mounted in the rear doors
- Drill out the rivets (3) on the existing loudspeaker. Use a 6 mm (15/64") drill
- Remove the loudspeaker and any rivet swarf from the rivet hole. Also ensure that any remaining rivet sections from the door are removed.

Installation
