Turn-by-turn Navigation System (Continued)

Installing the GPS antenna

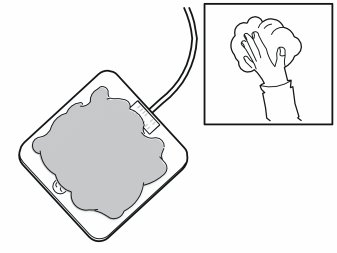

- Take the GPS antenna from the kit and clean the underneath using isopropanol P/N 1161721. Wipe dry.

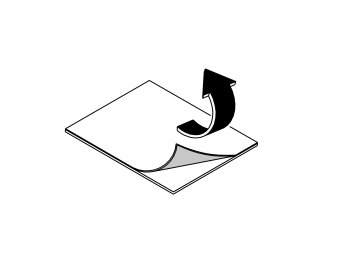

- Take the double-sided adhesive tape from the kit and remove the white backing film from the tape.

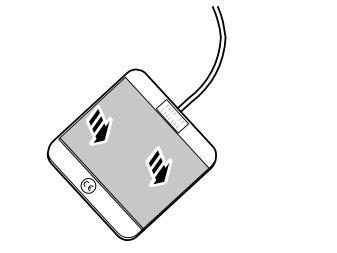

- Press in the double-sided adhesive tape firmly on the underneath of the GPS antenna.

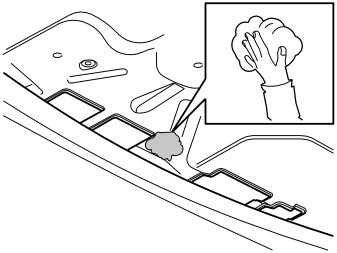

- Clean the marked surface on the parcel shelf using isopropanol P/N 1161721 for mounting the GPS antenna. Wipe dry.

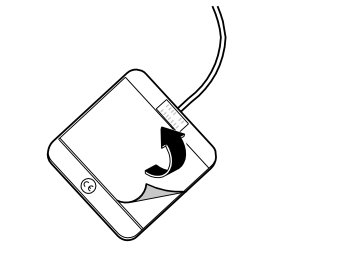

- Remove the translucent backing from the tape on the GPS antenna.

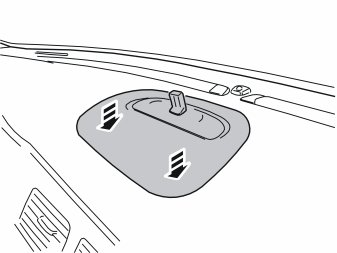

- Take the GPS antenna (1) and press it in the rear edge on the parcel shelf in the position as illustrated.
- Route the cable to the GPS antenna along the existing cable for the loudspeaker, inside the holder (2) for the seatbelt.
- Clamp at the points (3) with tie straps from the kit.

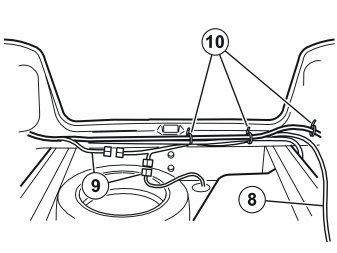

- Route the cable through the hole at the front edge of the wheel housing, out to the cargo compartment.

Note! Make sure that the cable does not chafe against sharp edges.

Installing the CD drive in the console




- Install the small bracket (1) (for the CD drive console) onto the rear crossmember under the left-hand rear lamp. Use the screw (2) from the kit.

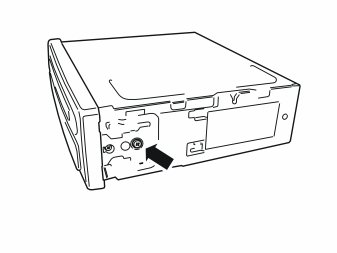

- Take the CD drive from the kit. Remove the screw to the adapter and remove the adapter on the side of the CD drive. Do this on both sides. These parts shall not be used again.





Applies to kits with the older version of the CD console

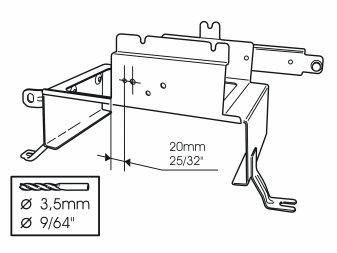

- Take the CD drive console from the kit a drill a -3.5 mm (9/64") hole on each side of the console as illustrated.
- Deburr the hole edges and apply anti-corrosion agent to them.

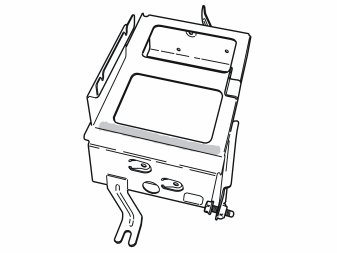

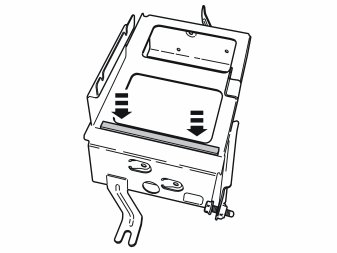

- Clean the marked surface on the rear edge of the console using isopropanol P/N 1161721. Wipe dry.

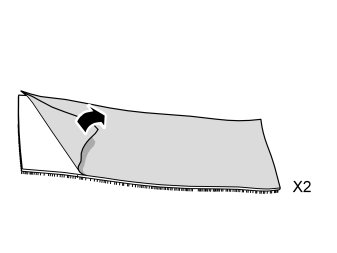

- Take a Velcro fastener from the kit and remove the protective tape.




- Press in the Velcro fastener centrally on the rear section of the console. Press hard so that it is firmly secured.

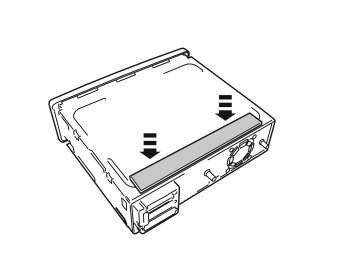

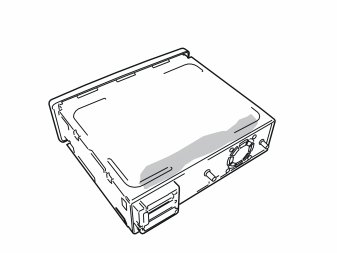

- Take the CD drive from the kit and clean the marked surface on the underside using isopropanol P/N 1161721. Wipe dry.

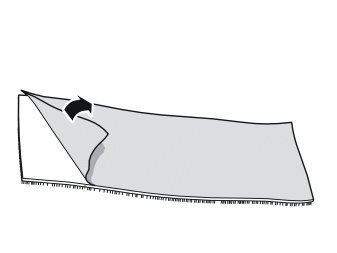

- Take a Velcro fastener from the kit and remove the protective tape.




- Press in the Velcro fastener in the centre of the rear section of the CD drive. Press hard so that it is firmly secured.




- Insert the CD drive into the console.

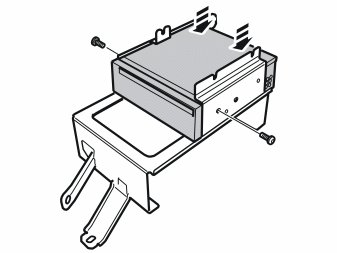

- Fit the two screws from the kit in the console and CD drive. Do not tighten them yet.
- Press in the rear end of the CD drive against the console so that the Velcro fasteners secure.
- Tighten the CD drive to the console with the two screws.

Connection to CD drive, applies to cars outside Europe

Applies to cars without towbar from and including model year 2005-

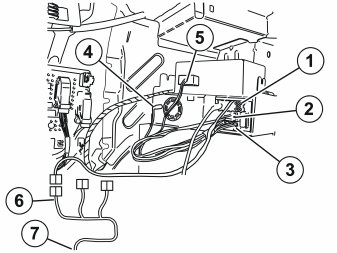

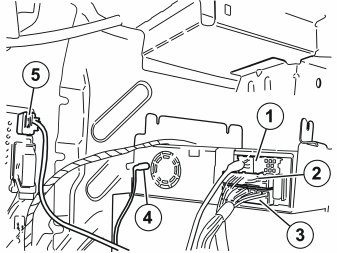

Connect:

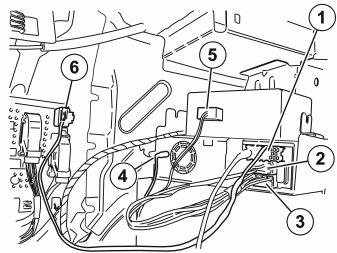

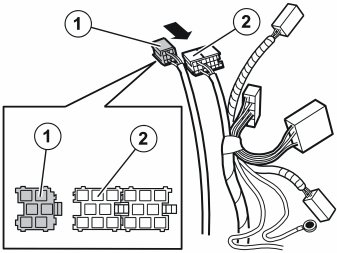

- the cable (1) with yellow connector in the routed cable harness to the CD drive, furthest to the left in the connector
- the cable (2) with brown connector in the routed cable harness to the CD drive
- the cable (3) with black connector in the routed cable harness to the CD drive
- the cable (4) from the GPS antenna (a faint click is heard when it is connected) to the CD drive.
White and green/blue connectors in the routed cable harness are only used if the car is to have a TMC receiver. Clamp them up with tie straps from the kit.
- the cable (5) with large black connector in the routed cable harness to the socket for towbar wiring in the fuse holder.

Applies to cars with towbar from and including model year 2005-





Connect:
- the cable (1) with yellow connector in the routed cable harness to the CD drive, furthest to the left in the connector
- the cable (2) with brown connector in the routed cable harness to the CD drive
- the cable (3) with black connector in the routed cable harness to the CD drive
- the cable (4) from the GPS antenna (a faint click is heard when it is connected) to the CD drive.
White and green/blue connectors in the routed cable harness are only used if the car is to have a TMC receiver. Clamp them up with tie straps from the kit.

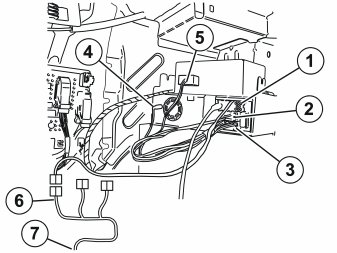

- the adapter wiring (5) from the kit with large black and grey connectors, to the socket for towbar wiring in the fuse holder. The existing connector to the towbar wiring in the fuse holder is detached.
- the cable (6) from the towbar wiring to the adapter wiring
- the cable (7) in the routed cable harness to the adapter wiring
The two grey connectors shall not be used. Clamp them up together with all excess cables using a tie strap from the kit, on the left-hand side in the rear edge of the wheel housing in a suitable way, so that there is no rattling.

Applies to cars without towbar up to and including model year -2004 Illustration A





Connect:
- the cable (1) with yellow connector in the routed cable harness to the CD drive, furthest to the left in the connector
- the cable (2) with brown connector in the routed cable harness to the CD drive
- the cable (3) with black connector in the routed cable harness to the CD drive
- the cable (4) from the GPS antenna (a faint click is heard when it is connected) to the CD drive.
White and green/blue connectors in the routed cable harness are only used if the car is to have a TMC receiver. Clamp them up with tie straps from the kit.
- the cable (5) in the adapter wiring from the kit with large black and grey connectors, to the corresponding connector in the routed cable harness

Illustration B




- the cable (6) in the adapter wiring is routed to the rear crossmember, over the rear end of the left-hand side member, to the pre-routed connector for the towbar wiring
- the grey connector (7) to the towbar wiring, to the corresponding connector in the routed adapter wiring
The two black connectors shall not be used. Clamp them up together with all excess cables using a tie strap from the kit, on the left-hand side in the rear edge of the wheel housing in a suitable way, so that there is no rattling.
- Clamp up the adapter wiring together with the excess grey connector along the rear crossmember with four tie straps (8) from the kit.

Applies to cars with towbar up to and including model year -2004 Illustration A





Connect:
- the cable (1) with yellow connector in the routed cable harness to the CD drive, furthest to the left in the connector
- the cable (2) with brown connector in the routed cable harness to the CD drive
- the cable (3) with black connector in the routed cable harness to the CD drive
- the cable (4) from the GPS antenna (a faint click is heard when it is connected) to the CD drive.
White and green/blue connectors in the routed cable harness are only used if the car is to have a TMC receiver. Clamp them up with tie straps from the kit.
- the cable (5) in the adapter wiring from the kit with large black and grey connectors, to the corresponding connector in the routed cable harness

Illustration B

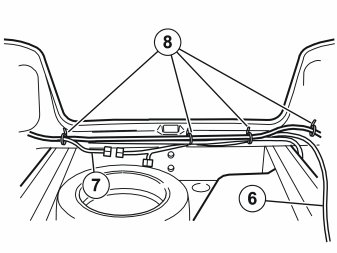

- the cable (6) in the adapter wiring is routed to the rear crossmember, over the rear end of the left-hand side member, to the connectors for the towbar wiring
- pull apart the connectors (7) to the towbar wiring and connect to them the two grey connectors in the adapter wiring
The two black connectors shall not be used. Clamp them up together with all excess cables using a tie strap from the kit, on the left-hand side in the rear edge of the wheel housing in a suitable way, so that there is no rattling.
- Clamp up the adapter wiring along the rear crossmember with four tie straps (8) from the kit.

Installing the TMC receiver, only applies to cars in Europe

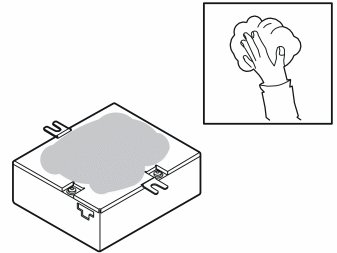

- Take the TMC receiver from the kit and clean the marked surface on the underside using isopropanol P/N 1161721. Wipe dry.

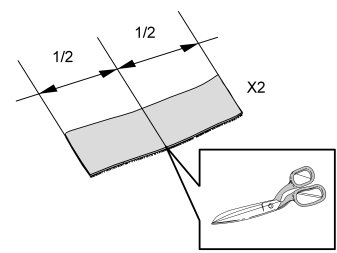

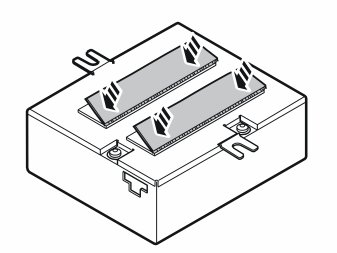

- Take two of the long Velcro fasteners from the kit and cut them into four pieces of equal length.

Illustration A




- Remove the protective tape from two of the cut Velcro fasteners.

Illustration B

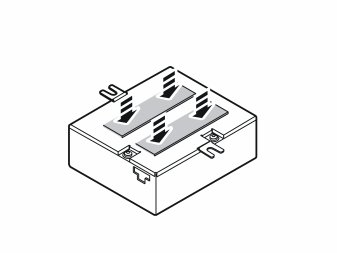

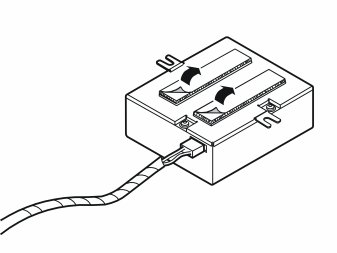

- Firmly press in the Velcro fasteners on the underside of the TMC receiver, approximately in the positions illustrated.




- Take the two remaining Velcro fasteners.

Note! Do not remove the protective tape.

Press in the Velcro fasteners centered against the Velcro fasteners on the TMC receiver.




- Connect the white connector in the routed cable harness to the TMC receiver.




- Remove the protective tape from the Velcro fasteners.

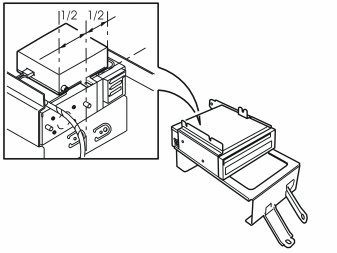

- Position the TMC receiver on the top of the CD drive as illustrated and press it in. Press in firmly so that the tape adheres.




- Attach the yellow (1) connector from the screen to the green connector (2) on the routed cable harness.




- Take the solid core wire from the kit and lay it along the rear crossmember.

Note! The cable end with the angled connector must be on the left-hand side.

- Route the connector to the TMC unit. The cable must be routed on the underside of the fuse holder along the existing cable harnesses.
- Route the other end of the cable in front of the right-hand tail lamp to the antenna amplifier.
- Detach the cable and remove the existing amplifier on the right-hand side of the right rear side member, under the right-hand rear lamp.
- Take the antenna amplifier (1) from the kit. Connect the cable (2) to the connector (3) for the antenna in the rear bumper by the right-hand tail lamp.
- Position the antenna amplifier on the edge of the panel in front of the right tail lamp as illustrated.
- Tighten the antenna amplifier.




- Connect the routed cable to the lower socket (1) on the antenna amplifier.
- Connect the loose cable to the upper socket on the antenna amplifier.

Applies to cars from and including model year 2005-

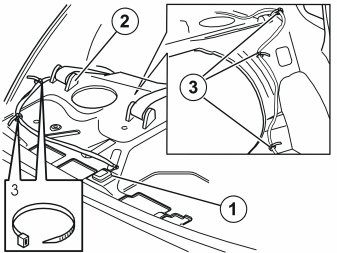

- Clamp the cable at the existing cable harness under the tailgate sill panel with four tie straps (2) from the kit.

Applies to cars up to and including -2004
- The cable to the antenna amplifier is clamped up together with the adapter wiring to the towbar wiring installed in steps 78 and 79.

Connection to CD drive and TMC receiver, only applies to cars in Europe

Applies to cars without towbar from and including model year 2005-

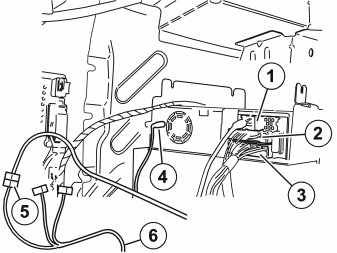

Connect:

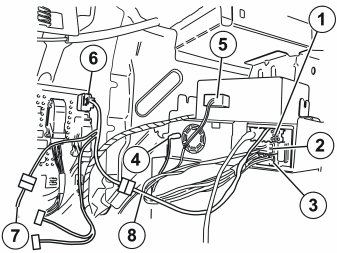

- the cables (1) with yellow, green and blue connectors in the routed cable harness to the CD drive (yellow connector to the left in the connection)
- the cable (2) with brown connector in the routed cable harness to the CD drive
- the cable (3) with black connector in the routed cable harness to the CD drive
- the cable (4) from the GPS antenna (a faint click is heard when it is connected) to the CD drive
- the cable (5) from the antenna amplifier under the right-hand rear lamp to the TMC receiver
- the cable (6) with large black connector to the socket for towbar wiring in the fuse holder
Clamp all excess cable with a tie strap from the kit, on the left-hand side in the rear edge of the wheel housing in a suitable way, so that there is no rattling.

Applies to cars with towbar from and including model year 2005-





Connect:
- the cables (1) with yellow, green and blue connectors in the routed cable harness to the CD drive (yellow connector to the left in the connection)
- the cable (2) with brown connector in the routed cable harness to the CD drive
- the cable (3) with black connector in the routed cable harness to the CD drive
- the cable (4) from the GPS antenna (a faint click is heard when it is connected) to the CD drive
- the cable (5) from the antenna amplifier under the right-hand rear lamp to the TMC receiver

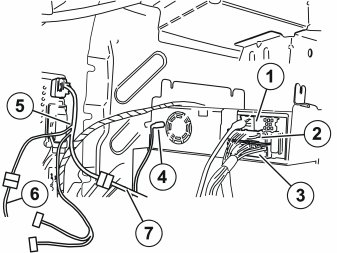

- the adapter wiring (6) from the kit with large black and grey connectors, to the socket for towbar wiring in the fuse holder (existing connector to the towbar wiring in the fuse holder is detached)
- the cable (7) from the towbar wiring to the adapter wiring
- the cable (8) in the routed cable harness to the adapter wiring
The two grey connectors shall not be used. Clamp them up together with all excess cables using a tie strap from the kit, on the left-hand side in the rear edge of the wheel housing in a suitable way, so that there is no rattling.

Applies to cars without towbar up to and including model year -2004 Illustration A





Connect:
- the cable (1) with yellow, green and blue connectors in the routed cable harness to the CD drive (yellow connector to the left in the connection)
- the cable (2) with brown connector in the routed cable harness to the CD drive
- the cable (3) with black connector in the routed cable harness to the CD drive
- the cable (4) from the GPS antenna (a faint click is heard when it is connected) to the CD drive
- the cable (5) from the antenna amplifier under the right-hand rear lamp to the TMC receiver
- the cable (6) in the adapter wiring from the kit, with large black and grey connectors, to the corresponding connector in the routed cable harness
- the cable (7) in the adapter wiring is routed to the rear crossmember, over the rear end of the left-hand side member, to the pre-routed connector for towbar wiring

Illustration B




- the cable (8) with grey connector to the towbar wiring, to the corresponding connector in the routed adapter wiring
The two black connectors shall not be used. Clamp them up together with all excess cables using a tie strap from the kit, on the left-hand side in the rear edge of the wheel housing in a suitable way, so that there is no rattling.
- Clamp up the adapter wiring together with the excess grey connector and cable to the antenna amplifier, along the rear crossmember, with four tie straps (9) from the kit.

Applies to cars with towbar up to and including model year -2004 Illustration A





Connect:
- the cable (1) with yellow, green and blue connectors in the routed cable harness to the CD drive (yellow connector to the left in the connection)
- the cable (2) with brown connector in the routed cable harness to the CD drive
- the cable (3) with black connector in the routed cable harness to the CD drive
- the cable (4) from the GPS antenna (a faint click is heard when it is connected) to the CD drive
- the cable (5) from the antenna amplifier under the right-hand rear lamp to the TMC receiver
- the cable (6) in the adapter wiring from the kit with large black and grey connectors, to the corresponding connector in the routed cable harness

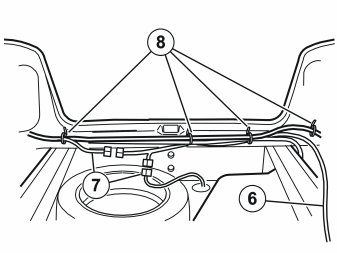

- the cable (7) in the adapter wiring is routed to the rear crossmember, over the rear end of the left-hand side member, to the connectors for the towbar wiring

Illustration B




- pull apart the connectors (8) to the towbar wiring and connect to them the two grey connectors in the adapter wiring
The two black connectors shall not be used. Clamp them up together with all excess cables using a tie strap from the kit, on the left-hand side in the rear edge of the wheel housing in a suitable way, so that there is no rattling.
- Clamp up the adapter wiring and cable to the antenna amplifier along the rear crossmember with four tie straps (9) from the kit.

Installing the CD drive

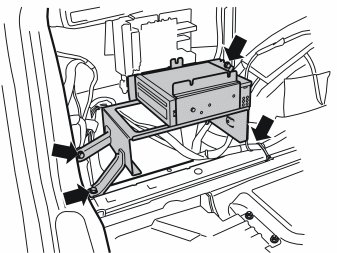

- Install the console with the CD drive in the rear edge of the left-hand rear wheel housing with three screws (1) from the kit. Tighten the screws to 10 Nm (7 lbf ft).
- Clamp up the cables in the front edge of the console. Clamp all the way to the front edge of the cargo compartment at the existing cable harness/cable duct, using tie straps from the kit.

Finishing work

- Connect the connector to the radio, and if the car has a telephone, to its keypad. Reinstall the radio. Connect the connectors to the dashboard environment panel and reinstall it.
- Reinstall the panel and gear selector lever boot around the gear selector lever.
- Fold back the carpet.
- Reinstall the soundproofing panel on the left-hand side.
- Reinstall the centre console side panel.
- Reinstall the sill trim panels on the left-hand side.

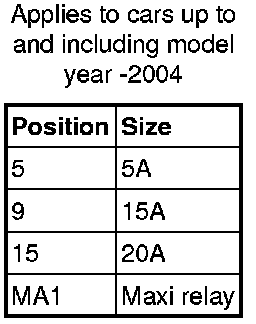

- Check that the following fuses and relays are installed in the Rear Electronic Module (REM):










- Reinstall the front side panel in the cargo compartment.
- Connect the cargo compartment lighting's connectors to the tailgate sill trim panel and reinstall it.
- Install a new left-hand folding panel from the kit and reinstall the right-hand folding panel.
- Reinstall the side cushion.
- Fold the backrest back into place.
- Reinstall the seat cushion.




- Take a new loudspeaker grille from the kit and press it into the dashboard.

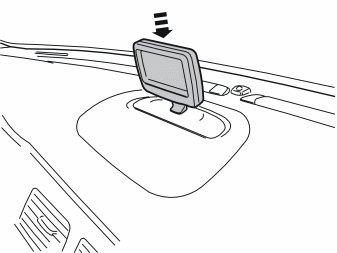

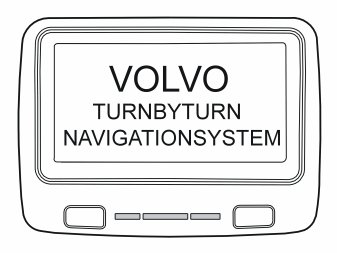

- Take the screen from the kit and press it into its holder/connector.

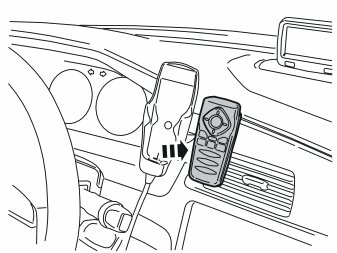

- Take the remote control from the kit, fit batteries and press it into the holder, if fitted.

- Turn the ignition key to position II.
- Reconnect the battery negative lead.
- Reinstall the cargo compartment carpet.

Programming the system

Illustration A




Program the system as follows:

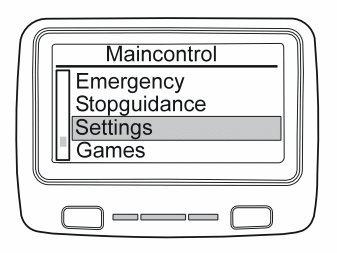

Main menu
1. Select "Settings"
2. Select "Service"
3. Press OK at "Code"
4. Enter code:
- 6330
1. Select "X-Code"
2. Enter code:
- XCA9 - VQ3Z
A6SV - FWY1
1. Press "OK"
2. Press "Save settings"

Note! Do not forget this!

Illustration B





Volvo menu
- The system now starts up with the Volvo logo and is ready for use.

Applies only if the car has AEM and the Radio Mute function is desired
The function mutes the radio when there are navigation messages.
- Take a new cable with minimum area 0.35 mm (1) (0.000542501 in (2)).
- Using a crimping sleeve, splice the new cable with the brown/white (BN/W) cable from the brown connector at the navigation unit.
- Route the cable along the rear crossmember and connect it at position 11 in AEM. If the position is in use by hands-free mute, splice the cable with the crimping sleeve. Make sure that the splices are done as described in steps 40 - 42.
- Load the Telemute application in AEM.
