Checking the TV Receiver. Rear Seat Entertainment, Generation 3.1/3.2
Checking the TV receiver
Fault-tracing information
If the TV in the rear seat does not function the fault could be due to:
- Fuses
- Power supply to the M2D control module
- Power supply to the TV-receiver
- M2D control module connectors
- TV receiver connectors
- The cable harness between the M2D control module and TV receiver
- Cable between the Rear Seat Entertainment Module (RSE) and TV receiver/M2D control module connection wiring
- Cable terminals on the connectors
- Defective Rear Seat Entertainment Module (RSE)
- Defective TV receiver.
Continue - Checking the fuses and the power supply
-------------------------------------------------
Checking the fuses and the power supply
Settings
Check that the radio is switched on.
Set the mode to TELEVISION using the SOURCE button on the radio.
Check that the fuses for the M2D-control module are intact and that there is power supply to the fusebox.
The voltage must be approximately 12 V.
Checking the M2D control module

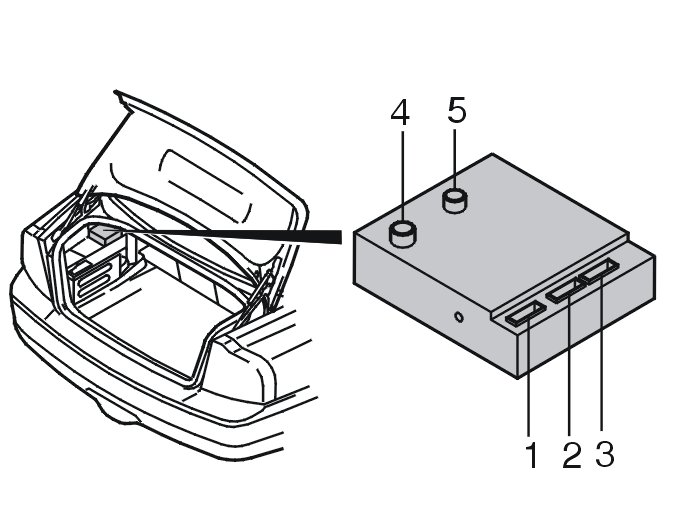

Check that the connectors for the M2D control module are connected. See positions 1-5.
Check the supply voltage to the TV receiver between terminals #N1-6 and #N1-7, see position 3 for the location of the connector.
The voltage must be approximately 12 V.
Hint: The voltage must be approximately 12 V.
Check the supply voltage to the M2D control module between terminals #N1-9 and #N1-13, see position 3 for the location of the connector.
Remedy as necessary.
Other information:
- To access or replace the M2D control module, see Control module M2D, replacing Control Module M2D, Replacing.
Hint: The above illustration shows the location of the M2D control module on the RTI unit.
- To fault-trace wiring and terminals see Checking wiring and terminals Checking Wiring And Terminals
- For further information about signals and other values, see Signal specification, TV Executive, Premier Signal Specification, TV Executive. Rear Seat Entertainment, Generation 3.1/3.2
- For further information about the fuses and relays, see the Wiring Diagram.
Was a fault detected?
Yes - FAULT FOUND
No - Checking the TV receiver
-------------------------------------------------
Checking the TV receiver

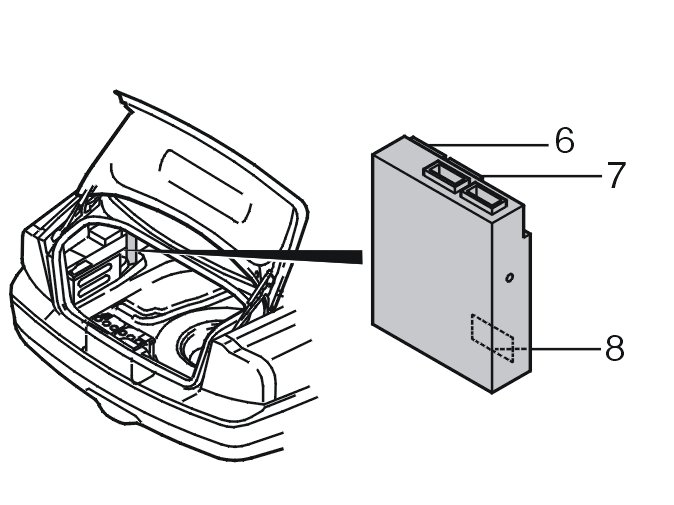

Check that the connectors for the TV receiver module are connected. See positions 6-8.
Check the supply voltage between terminals #M-7 and #M-15. See position 6.
The voltage must be approximately 12 V.
Check the wiring between the M2D control module and the TV receiver. Check for an open-circuit. Check for a short-circuit to ground. Check for a short-circuit to supply voltage.
Check the cable terminals on the connector for the TV receiver and M2D control module. The cable terminals must not be damaged, pressed back or oxidized.
Check the cable between the Rear Seat Entertainment Module (RSE) and the TV receiver.
Remedy as necessary.
Other information:
- To access and replace the TV receiver, see TV receiver, replacing Replacing The TV Receiver.
Hint: The above illustration shows the location of the TV receiver on the RTI unit.
- To access or replace the Rear Seat Entertainment Module (RSE), see Rear seat entertainment module (RSE), replacing Rear Seat Entertainment Module (RSE), Replacing
- To fault-trace wiring and terminals see Checking wiring and terminals Checking Wiring And Terminals
- For further information about signals and other values, see Signal specification, rear seat entertainment module (RSE) Signal Specification, Rear Seat Entertainment Module (RSE), Generation 3.1/3.2 and Signal specification, TV Executive, Premier Signal Specification, TV Executive. Rear Seat Entertainment, Generation 3.1/3.2
- For further information about the fuses and relays, see the Wiring Diagram.
Continue - Verification
-------------------------------------------------
Verification
Checking the TV receiver
Checking the TV receiver
Check the function of the TV.
Does the TV in the rear seat function?
Yes - Verification complete
No - Fault-tracing information
-------------------------------------------------
Fault-tracing information
Information
Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.
Do you want to exit fault-tracing?
Yes - Exit Fault-Tracing
No - Attempt New Test
------------------------
Attempt New Test - Fault-tracing information
-------------------------------------------------
