Checking the DVD Player, Rear Seat Entertainment, Generation 3.1/3.2
Checking the DVD player
Fault-tracing information
If the DVD player does not function but the other audio/display sources do function the fault could be due to:
- Short-circuit/open circuit on cable.
- Damaged DVD-disc.
- Damaged DVD-player.
- Damaged rear seat entertainment module (RSE).
Continue - Checking the function
-------------------------------------------------
Checking the function
- Ignition on.
Turn on the system for rear seat entertainment using the remote control.
Check that the buttons on the DVD player light up.
Do the buttons on the DVD player light up?
Yes - Checking the wiring
No - Checking the power supply
-------------------------------------------------
Verification
Checking the DVD player
Checking the DVD player
Check that the DVD player and other audio and display sources function.
Do the DVD player and other audio and display sources function?
Yes - Verification complete
No - Fault-tracing information
-------------------------------------------------
Fault-tracing information
Information
Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.
Do you want to exit fault-tracing?
Yes - Exit Fault-Tracing
No - Attempt New Test
------------------------
Attempt New Test - Fault-tracing information
-------------------------------------------------
Checking the power supply

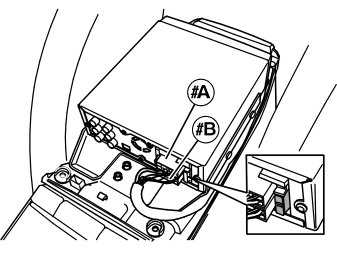

Check that the internal fuse in the DVD player is intact. Replace the fuse if it is damaged.
Check the wiring between the DVD player and the Rear Seat Entertainment Module (RSE).
Check the voltage to the DVD player at the Rear Seat Entertainment Module (RSE). Measure between #D4 and #D6.
Other information
- Signal specification, rear seat entertainment module (RSE) Signal Specification, Rear Seat Entertainment Module (RSE), Generation 3.1/3.2
- For further information about the fuses and relays, see the Wiring Diagram.
- Rear seat entertainment module (RSE), replacing Rear Seat Entertainment Module (RSE), Replacing
- DVD player, replacing Service and Repair
- Checking wiring and terminals Checking Wiring And Terminals
Is voltage between 10-14 V?
Yes - Checking ground connection
No - Checking the wiring
-------------------------------------------------
Checking ground connection
Measure the resistance between the Rear Seat Entertainment Module (RSE) terminal #D12 and ground. The resistance must be less than 1 ohms.
Other information:
- Signal specification, rear seat entertainment module (RSE) Signal Specification, Rear Seat Entertainment Module (RSE), Generation 3.1/3.2
- For further information about the fuses and relays, see the Wiring Diagram.
- Rear seat entertainment module (RSE), replacing Rear Seat Entertainment Module (RSE), Replacing
- DVD player, replacing Service and Repair
- Checking wiring and terminals Checking Wiring And Terminals
ohms
Is resistance less than 1 ?
Yes - Checking the wiring
No - Checking the wiring
-------------------------------------------------
Checking the wiring
Check the wiring between the DVD player and the Rear Seat Entertainment Module (RSE). Check for an open-circuit and short-circuit.
If a fault is found change the wiring between the control module and the DVD player.
Was a fault detected?
Yes - Verification
No - Checking the DVD player
-------------------------------------------------
Checking the DVD player
Check that the DVD is not damaged and that it is clean. Try using another DVD if necessary.
Check that nothing has jammed in the DVD player. Check that there are no mechanical grinding noises coming from the DVD player when it is in operation.
Check that the DVD is the correct format for the DVD player (NTSC/PAL).
Is the transportation protection disc in the DVD player?
Yes - Checking the function
No - Checking the inlet on the control module
-------------------------------------------------
Checking the inlet on the control module
- Ignition off.
- Move the connector for the DVD-player to the input for the TV-connection.
- Ignition on.
Select the DVD-player as source for one of the screens and press on the remote control's PLAY button. Adjust the screen settings for the monitor where playing takes place, if needed.
Is playing OK?
Yes - Checking the inlet on the control module
No - Replacing the DVD player
-------------------------------------------------
Checking the inlet on the control module
Select TV as source for one of the screens and press on the remote control's PLAY button. Adjust the screen settings for the monitor where playing takes place, if needed.
Note! If TV-receiver is not installed in the vehicle, connect DVD or aux as source to that input.
Is playing OK?
Yes - Checking the function
No - Replacing the Rear Seat Entertainment Module (RSE)
-------------------------------------------------
Checking the function
- Ignition on.
Turn on the system for rear seat entertainment using the remote control.
Select DVD as source at one of the display screens. When DVD is selected a message about incorrect format is displayed within a few seconds. When the message is gone, press the EJECT button.
If the disc is ejected, insert an undamaged DVD-disc and press the YES button below.
Is the transport protection disc ejected?
Yes - Verification
No - Replacing the DVD player
-------------------------------------------------
Checking the function
Select the DVD-player as source for one of the screens and press on the remote control's PLAY button.
Adjust the screen settings for the monitor where playing takes place, if needed.
Is playing OK?
Yes - No Fault Found
No - Replacing the DVD player
-------------------------------------------------
Replacing the DVD player
Replace DVD-player according to the following instruction.
- DVD player, replacing Service and Repair
Continue - FAULT FOUND
-------------------------------------------------
Replacing the Rear Seat Entertainment Module (RSE)
Replace the Rear Seat Entertainment Module (RSE) according to the following instruction.
- Rear seat entertainment module (RSE), replacing Rear Seat Entertainment Module (RSE), Replacing
Then continue with:
Continue - FAULT FOUND
-------------------------------------------------
