Entertainment Systems: Service and Repair

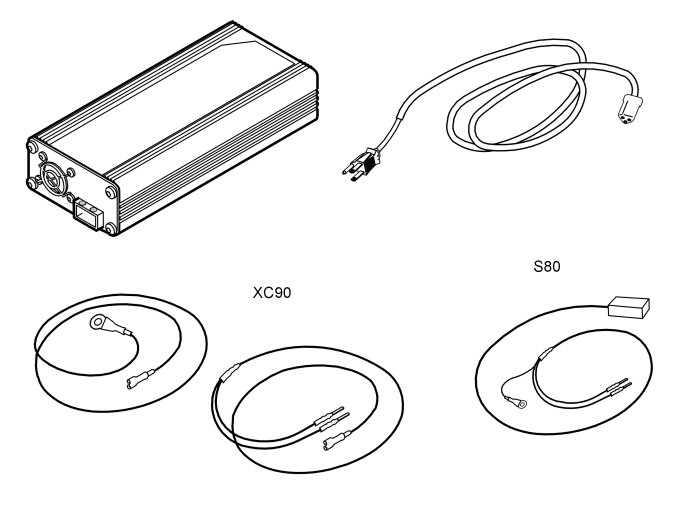

Power supply unit, RSE (Rear Seat Entertainment)



















Power supply unit, RSE (Rear Seat Entertainment)

Note!
- Steps 1-11 apply to the S80
- Steps 12-25 apply to the XC90

Applies to the S80

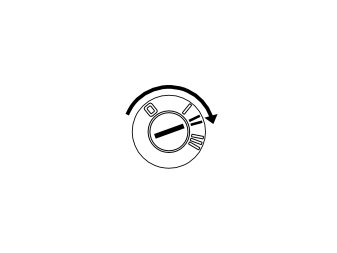

- Turn the ignition key to position 0.





Note! Wait at least five minutes before disassembling the connectors or removing other electrical equipment.

- Remove the carpet from the cargo compartment.
- Disconnect the battery negative lead and then the positive lead.

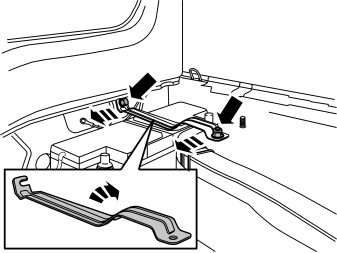

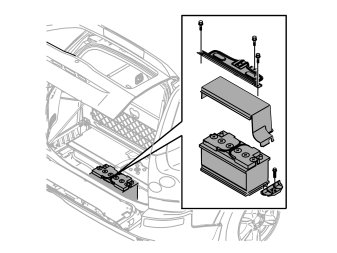

- Remove the mounting bracket over the battery's protective cover, it is fitted with a nut and a screw.

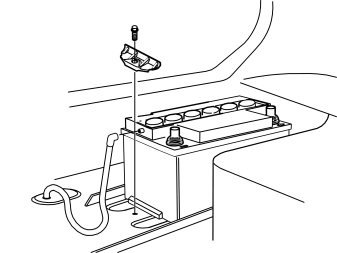

- Remove the screw and detach the holder on the right-hand side of the battery.
- Lift out the battery to make space for the power supply unit.

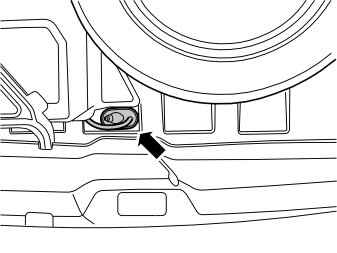

- Remove the rubber grommet for the drainage line to the battery.




- Connect the 12V cable harness to the power supply unit, colour to colour.
- Connect the power cable to the power supply unit.

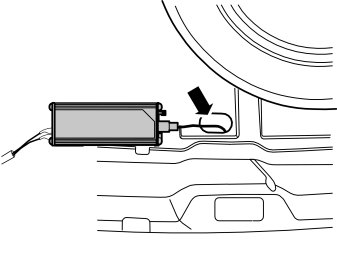

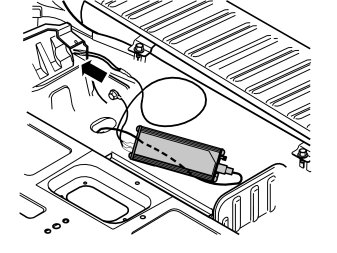

- Position the power supply unit at the rear edge of the spare wheel and pull the power cable out through the hole in the floor.

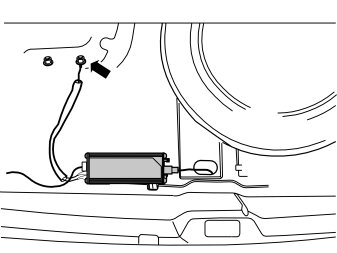

- Connect the black (SB) ground cable to the left-hand stud in the mounting bracket for the battery's protective cover.

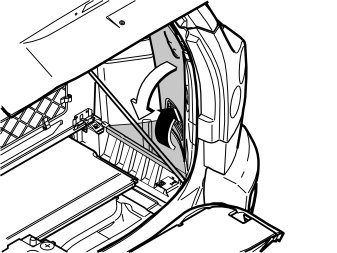

- Fold out the left-hand side panel.
- Route the cable at the rear of the side panel and then forwards to the left-hand rear wheel arch.

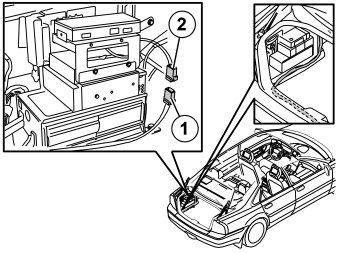

- Plug the connector (1) for the routed cable harness into connector (2) on the existing cable from the fuse holder at the rear of the left-hand rear wheel arch.

- Connect the power cable to the wall socket.

Note! The power supply unit automatically adjusts itself to the prevailing voltage in the wall socket.

- Test the system.

After completed demonstration:




- Disconnect the cable harness from the small fuse box and reconnect the disconnected cables.
- Detach the ground cable from the stud for the battery's mounting bracket.
- Remove the power supply unit and its cables from the cargo compartment.
- Reinstall the battery. Reinstall the holder on the right-hand side and torque tighten the screw to 24 Nm (18 lbf.ft.).
- Reinstall the rubber grommet in the cargo compartment floor.
- Turn the ignition key to position II.
- Reconnect the battery leads, positive lead first, then the negative lead.
- Reinstall the mounting bracket over the battery. Torque tighten the nut and the screw to 24 Nm (18 lbf.ft).
- Fold the side panel back into position.
- Reinstall the cargo compartment carpet.

Applies to the XC90




- Turn the ignition key to position 0.




- Fold up and remove the floor hatch.
- Remove the side floor hatch.
- Remove the rear side panel.




- Remove the bracket over the protective cover for the battery. The bracket is secured with three screws.
- Remove the protective cover for the battery.
- Remove the screw and detach the holder on the right-hand side of the battery.




- Disconnect the battery negative lead and then the positive lead.
- Lift out the battery to make space for the power supply unit.




- Remove the rubber grommet for the drainage hose for the battery.

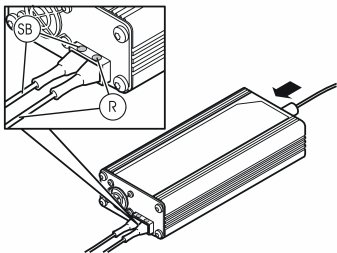

- Connect the 12V cable harness to the power supply unit, colour to colour.
- Connect the power cable to the power supply unit.

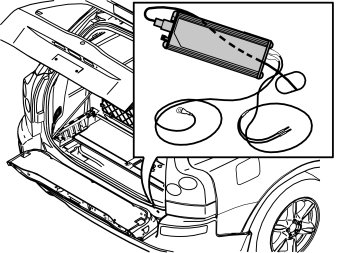

- Position the power supply unit in the battery location as illustrated.

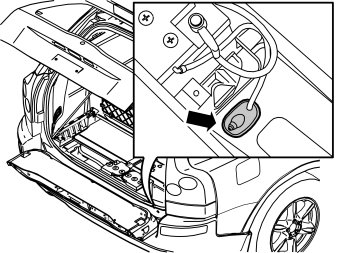

- Route the power cable out through the hole in the cargo compartment floor.

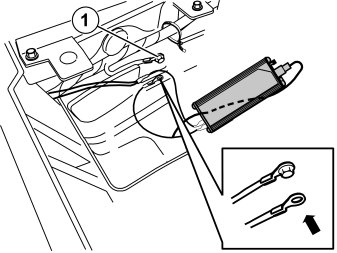

- Unscrew the existing ground screw (1) on the right-hand side of the rear crossmember.
- Install the routed black (SB) ground cable and tighten the ground screw firmly

Illustration A




- Route the remaining cable ends to the hole at the rear of the floor support on the right-hand side.

Illustration B

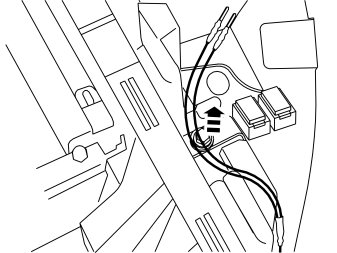

- Insert the cable ends into the small fuse holder on the right-hand side of the floor support.

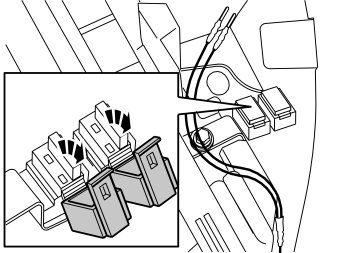

- Remove the cover for the RSE's fuse holder.

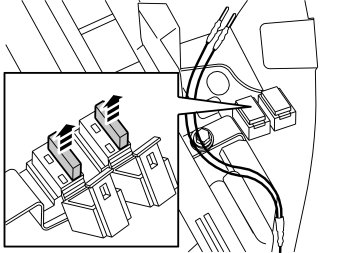

- Remove the fuses in the fuse holder, 10A in the left-hand holder, 5A in the right-hand holder.

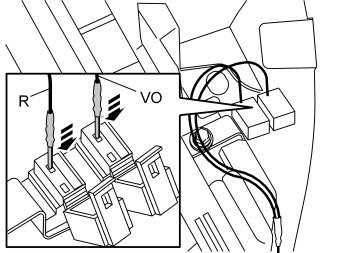

- Install the red (R) cable in the front of the left-hand fuse holder and the violet (VO) in the right-hand fuse holder.

Note! The cables must only be installed in the front of the fuse holder, otherwise there is a risk that the power supply unit will be irreparably damaged.

Both cables are connected to thinner cables under the fuse holder.

- Connect the power cable to the wall socket.

Note! The power supply unit automatically adjusts itself to the prevailing voltage in the wall socket.

- Test the system.

After completed demonstration:




- Disconnect the cables from the small fuse box.
- Reinstall the fuses in the holders, see step 22 for positions.
- Reinstall the cover over the fuse holders.
- Detach the black (SB) ground cable from the ground terminal and tighten the screw firmly.
- Remove the power supply unit and its cables from the cargo compartment.
- Reinstall the battery.
- Reinstall the rubber grommet in the cargo compartment floor.
- Tighten the battery with the mounting to the floor. Torque tighten the screw to 24 Nm (18 lbf.ft.).
- Turn the ignition key to position II.
- Reconnect the battery leads, positive lead first, then the negative lead.
- Reinstall the protective cover over the battery. Reinstall the mounting bracket over the protective cover and torque tighten the screws to 24 Nm (18 lbf.ft.).
- Reinstall the rear side panel and the side floor hatch.
- Reinstall the rear floor hatch.
