Pinout Values and Diagnostic Parameters

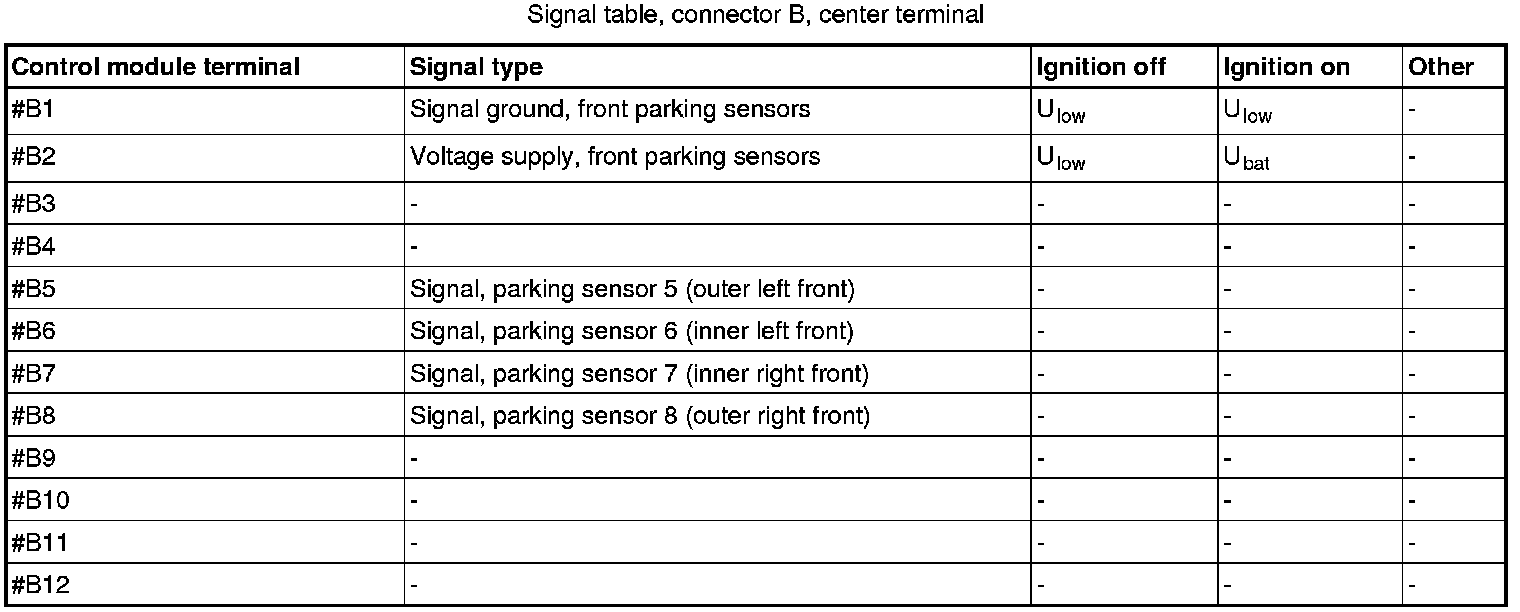

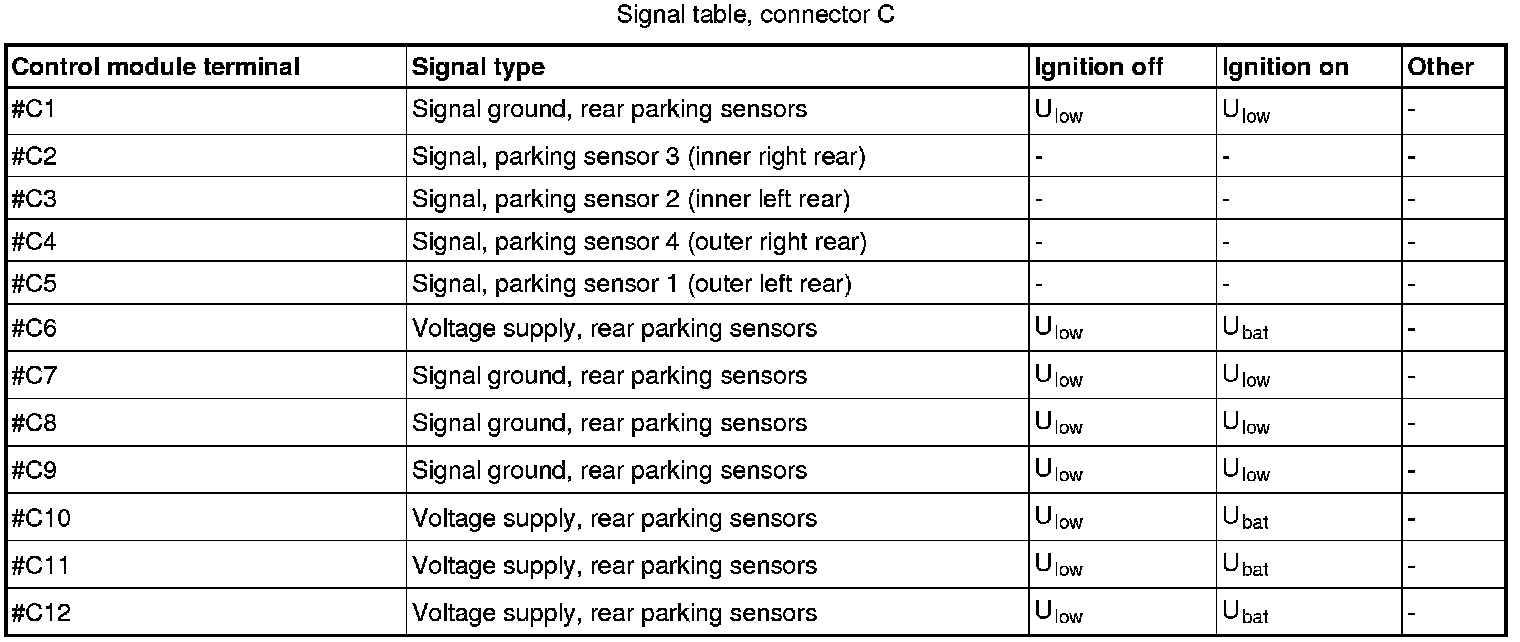

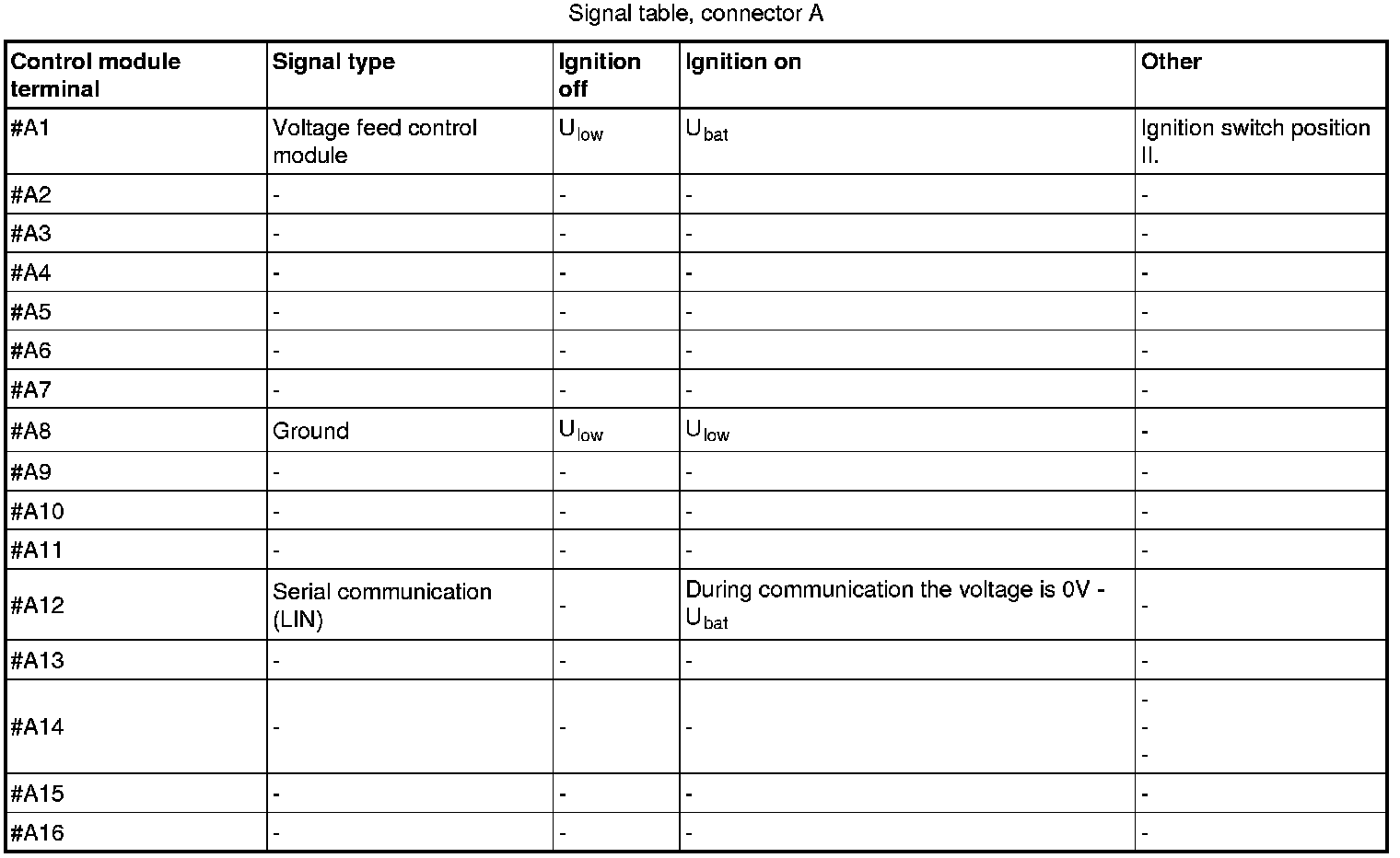

Signal specification

General

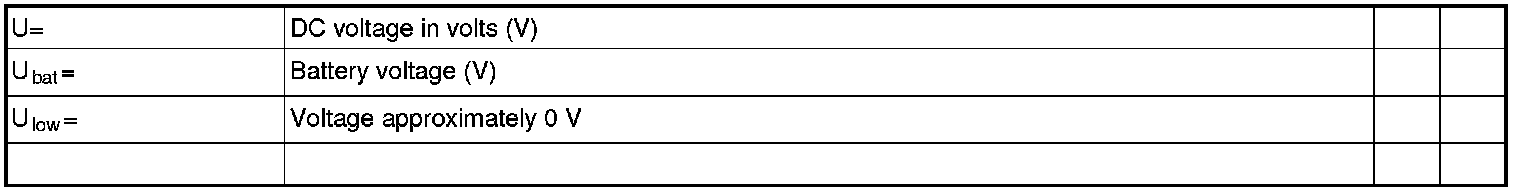

All values specified below are between the relevant terminal and terminal #8 (power ground).

Note! It is important to check ground terminals before taking readings.
