Windshield Antenna / Amplifier, CD Player, Replacing

Windshield antenna / amplifier, CD player, replacing

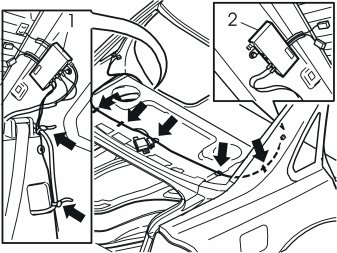

Windshield antenna and amplifier




Remove the CD panels. See Panel, C-post, replacing Panel, C-Post, Replacing.
Remove the connectors and screws.
Remove the amplifiers.

Install:
In reverse order.

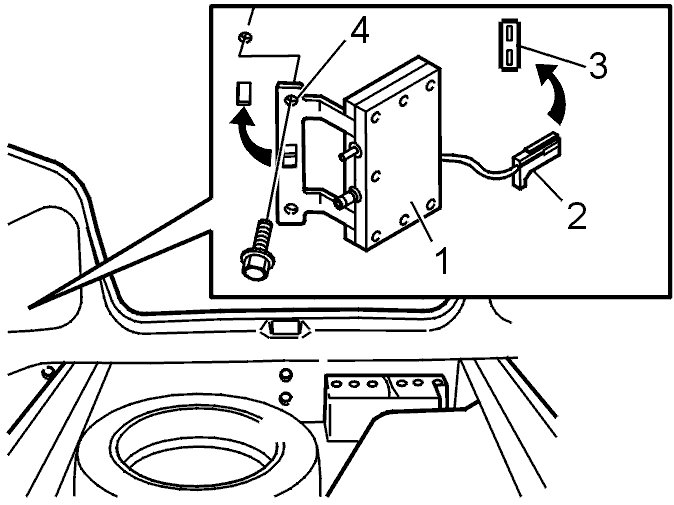

Sub-antenna in bumper / amplifier
Remove the rear right panel in the cargo compartment.




Remove the screw.
Disconnect the connector.

Install:
In reverse order.

Power amplifier
Remove the front seat on the passenger side. See: Lifting the front seats in and out for mechanical seats or Lifting seats in and out for power seats.
Remove the two screws.
Disconnect the connectors.

CD player
The CD player is positioned beside the CD-ROM reader for the RTI. See CD reader, RTI (road traffic information), replacing .
