Top Panel, Gear Selector Assembly, Replacement

Top panel, gear selector assembly, replacement

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information is always correct.

Removal

Removing the gear lever knob

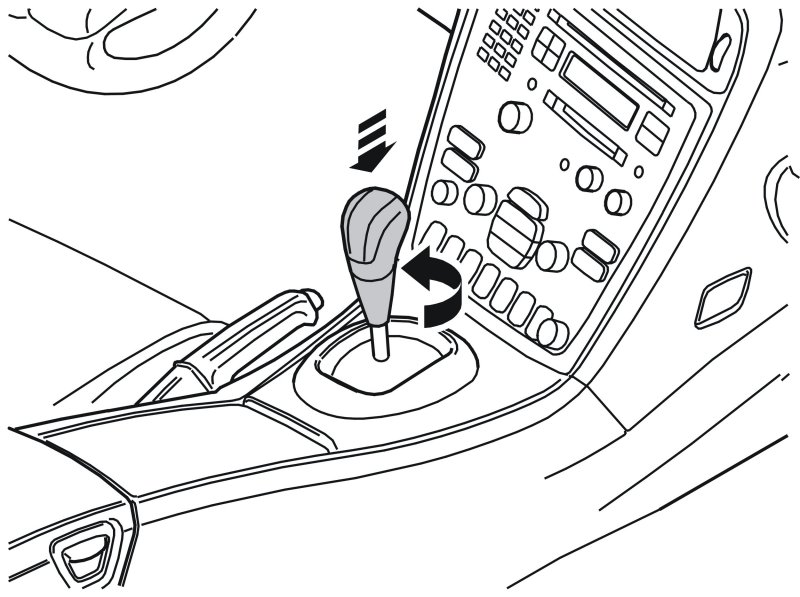

Press the gear lever knob down. At the same time, turn it one quarter of a turn to the left and pull it straight up.

Removing the top panel

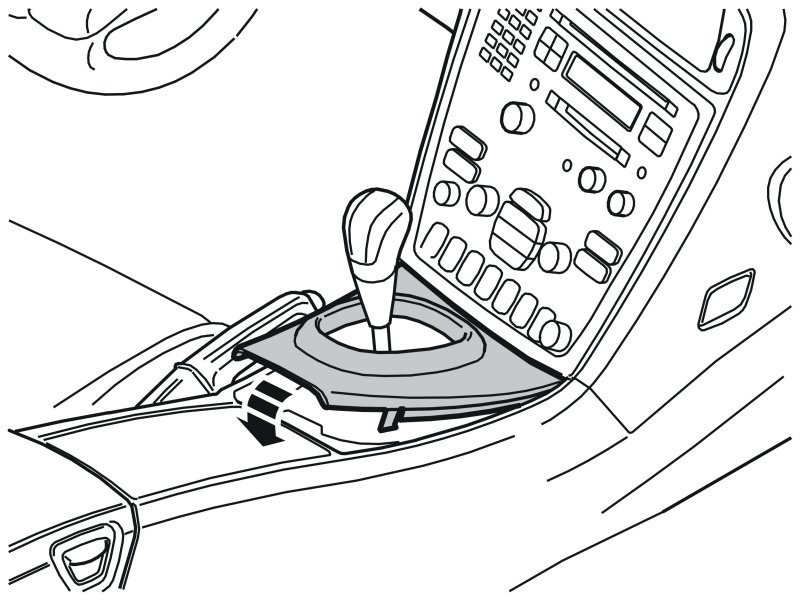

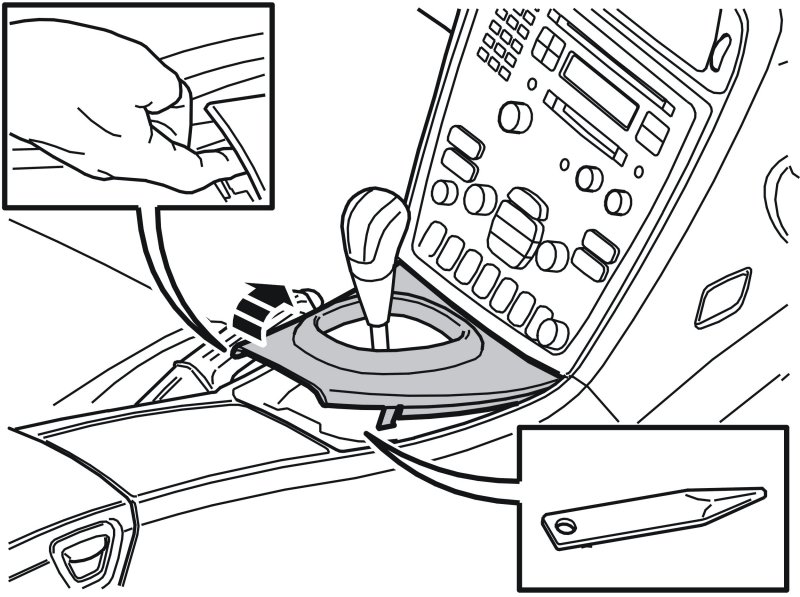

Lift the panel at the rear edge. Following which, detach it carefully at the front edge.

Removing the spaceball from the center console





Note! Note the bracket locations in the center console.

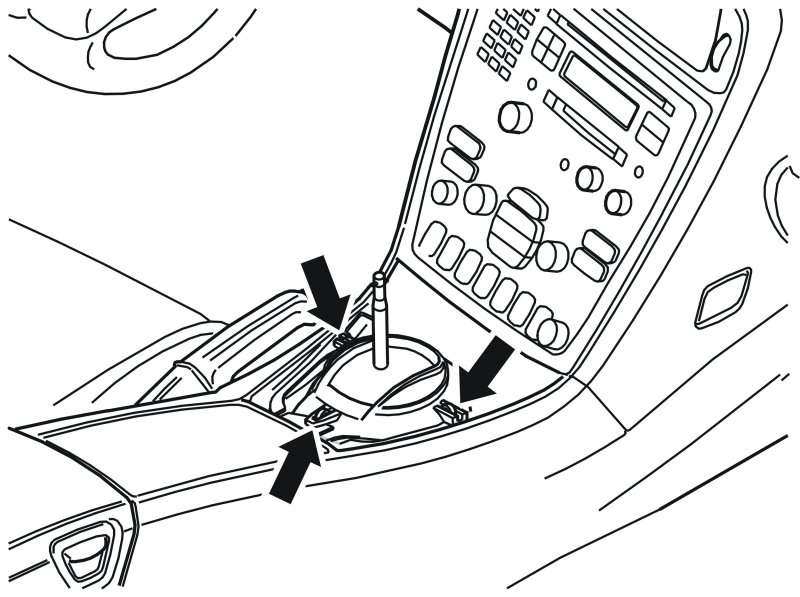

Press on the rear catch and lift the spaceball slightly. Fold it out from its brackets. Move the gear lever to 5th gear position.
Lift the spaceball carefully from the center console and over the gear lever, and remove the spaceball.

Installation

Installing the spaceball to the center console




Install the spaceball over the gear lever.
Carefully fold the spaceball down to the center console. Move the gear lever to 5th gear position.
Fit the spaceball in its front brackets first and lock them with the rear bracket.

Installing the top panel




Install the top panel to the center console.

Installing the gear lever knob

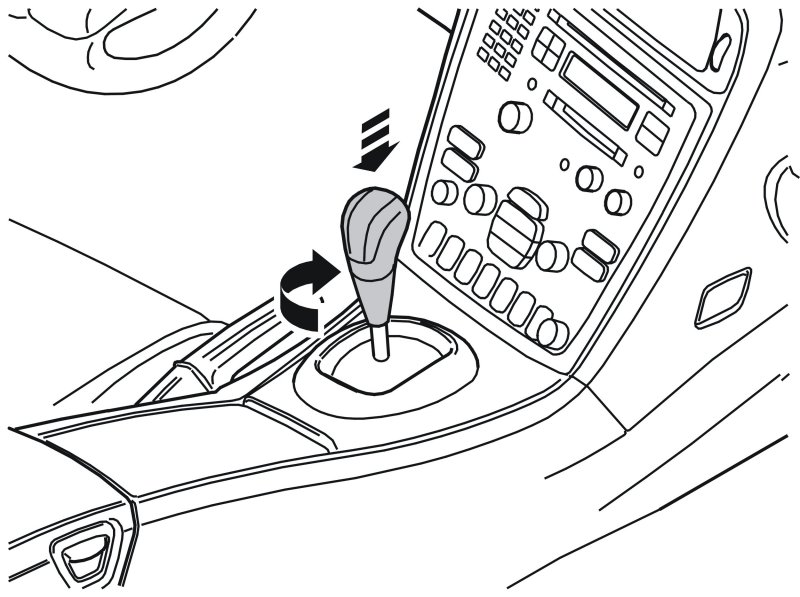

Install the gear lever knob to the gear lever by pressing down the gear lever knob. At the same time, turn it one quarter of a turn to the right.
Check the position of the gear lever in the spaceball, it must be central. If the gear lever is not in the correct position, check the adjustment of the gear cable in accordance with Transmission cable, replacing, M58, M56 Service and Repair.
