Relays, Fuse Boxes and Wiring

Relays, Fuse Boxes And Wiring

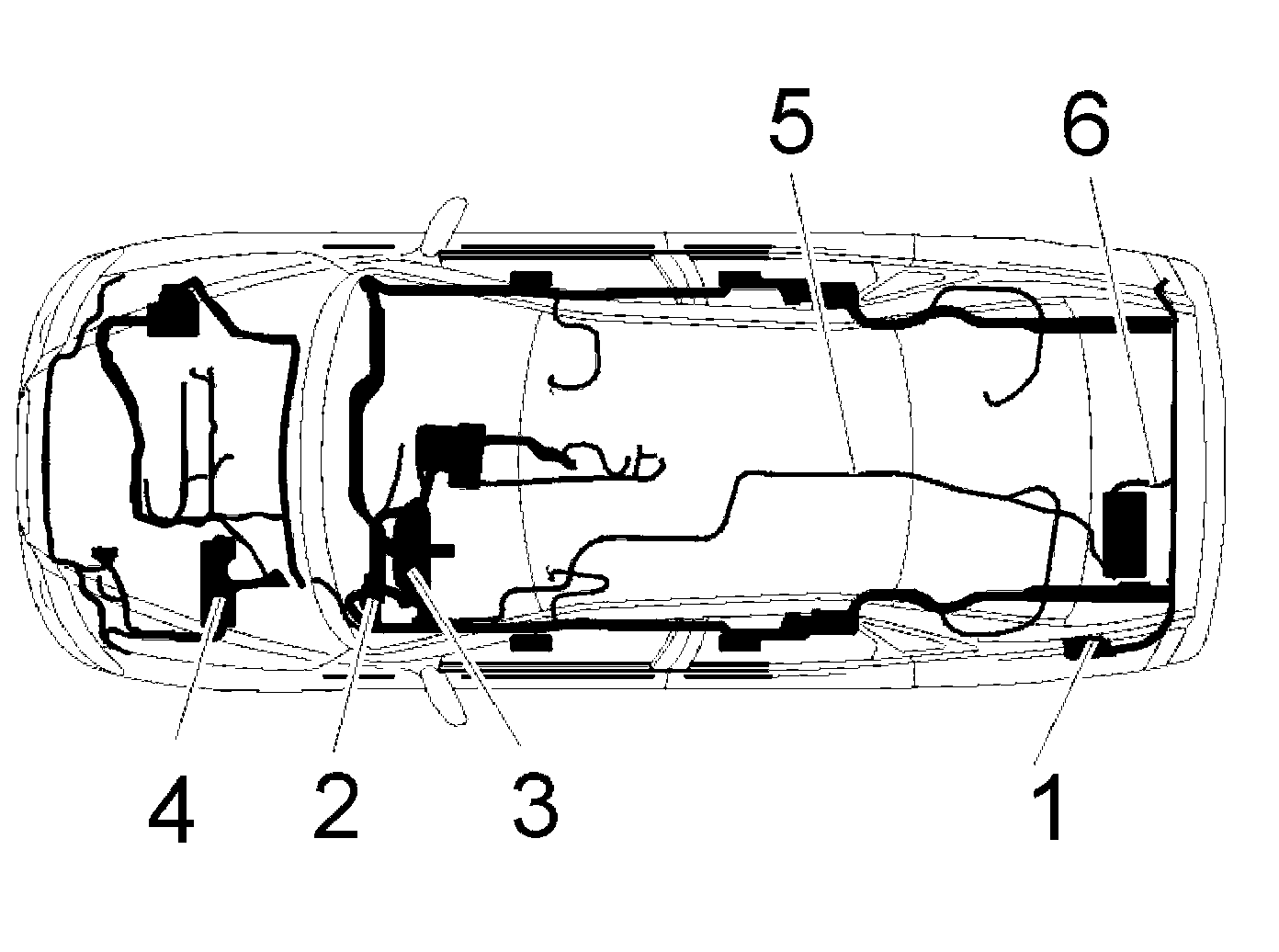

Integrated relay/fuseboxes, wiring







1. Integrated relay/fusebox in the cargo compartment, rear electronic module
2. Relay box in the passenger compartment, central electronic module (CEM)
3. Fusebox in the passenger compartment
4. Integrated relay/fusebox in engine compartment
5. Cable harness
6. Ground cable, battery.
