Parking Brake Warning Switch: Service and Repair

Parking Brake Switch, Replacing

Removal

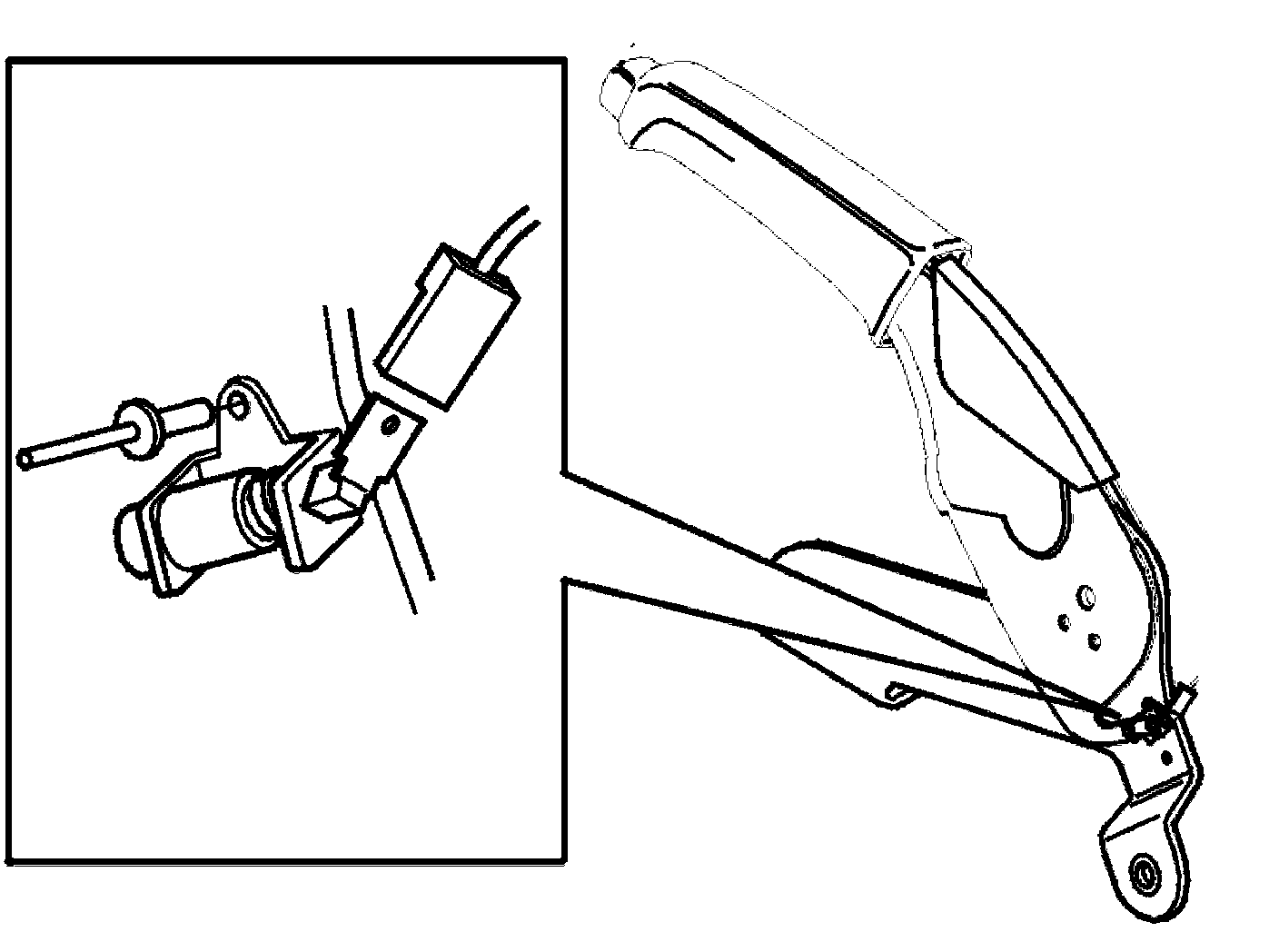

Parking brake switch







- Remove the parking brake lever.
- Cut or grind off the rivet head. Remove the remainder of the rivet
- Remove the parking brake switch.

Installation

Parking brake switch
- Rivet the parking brake switch into position. Use pop rivet (937881)
- Install the parking brake lever.
