Front Passenger's Airbag

Switch On/off, Front Passenger Airbag (not USA/CDN)

This switch is used to activate or deactivate the front passenger airbag. The switch is on the side of the dashboard on the passenger side. The switch can only be accessed with the front passenger door open. The ignition key is used to change the position of the switch. When the switch is in the OFF position, all the stages of the passenger airbag are deactivated and the passenger airbag disconnected (PAD) warning lamp lights. When the switch is moved between OFF and ON, the two Hall sensors detect the position of the switch. The Hall sensors for the switch are directly connected to the supplemental restraint system module (SRS). Each Hall sensor is individually connected to the control module. The signal which is transmitted from the Hall sensors has two different current levels, depending on the position of the switch.

A diagnostic trouble code (DTC) is stored if the signal from the Hall sensors cannot be correctly interpreted. The control module may, depending on the fault, deactivate the passenger airbag. The PAD (passenger airbag disconnected) warning lamp lights if the passenger airbag is deactivated. If a fault is detected and the passenger airbag is not deactivated, the SRS warning lamp lights and a text message is displayed in the driver information module (DIM).

NOTE: The on/off switch for the front passenger airbag and occupant weight sensor (OWS) must not be installed in the vehicle together.

Front airbags

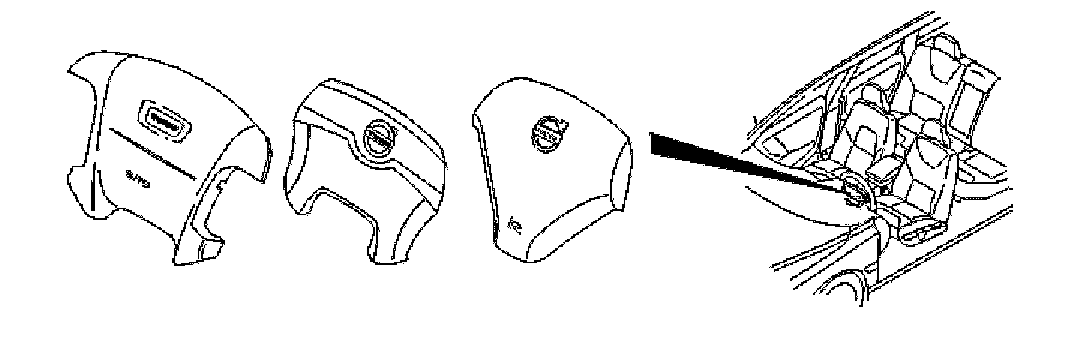

Driver airbag

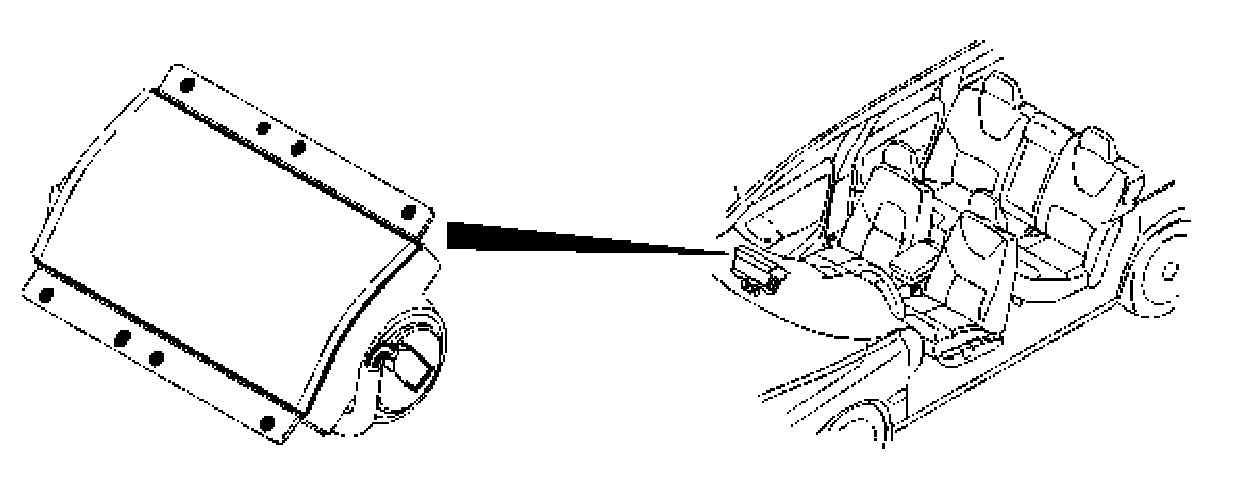

Front passenger airbag

WARNING: Never use an ohmmeter or similar tool to test airbags, inflatable curtains, the adaptive steering column or seat belt tensioners. Disconnect airbags, inflatable curtains, the adaptive steering column or seat belt tensioners before testing them. Failure to do so may result in accidental deployment. This could result in serious injury or death.

For the XC90 in USA/CDN, the front airbags are:
- driver airbag, 3 stage deployment
- front passenger airbag, 3 stage deployment.

For other models and markets, the front airbags are:
- driver airbag, 2 stage deployment
- front passenger airbag, 2 stage deployment.

The driver's airbag is located in the steering wheel. The passenger airbag is located above the glove compartment in the dashboard.

Each airbag stage has a separate ignition section. These are electrically separated from each other. This means that the different ignition components have their own separate power supply and grounding points from the control module.

When activating the airbags electrical signals are transmitted from the supplemental restraint system module (SRS) to the relevant airbag stage.

Stage 1
Stage 1 of the driver's airbag is pyrotechnic. In the event of activation the charge combusts and the gas which develops is blown into the airbag. Stage 1 on the passenger airbag consists of a pyrotechnic component in combination with a reservoir which stores a gas. On activation the pyrotechnic charge and mixes with the stored gas. The gas mixture is blown into the airbag.

Stage 2
Stage 2 of the driver's and passenger airbags is pyrotechnical. In the event of activation the charge combusts and the gas which develops is blown into the airbag. The pace of the airbag 2 stage activation is dependent on collision type and seat belt use. Both stages activate but in the event of a lesser impact, there is a greater time delay between stage 1 and stage 2. For more serious impacts the time delay is shorter between stages 1 and 2.

Stage 3 (XC90 USA/CDN only)
Stage 3 of the driver's and passenger airbags is pyrotechnical. A valve opens on the airbag during deactivation. The control module uses information from the occupant weight sensor (OWS), seat position sensor and collision sensor to determine the size of the driver/passenger and the force of the collision. The control module adapts the volume of the airbag to the force of the collision. This is done using airbag ventilation.

WARNING: Never use an ohmmeter or similar tool to test airbags, inflatable curtains, the adaptive steering column or seat belt tensioners. Disconnect airbags, inflatable curtains, the adaptive steering column or seat belt tensioners before testing them. Failure to do so may result in accidental deployment. This could result in serious injury or death.

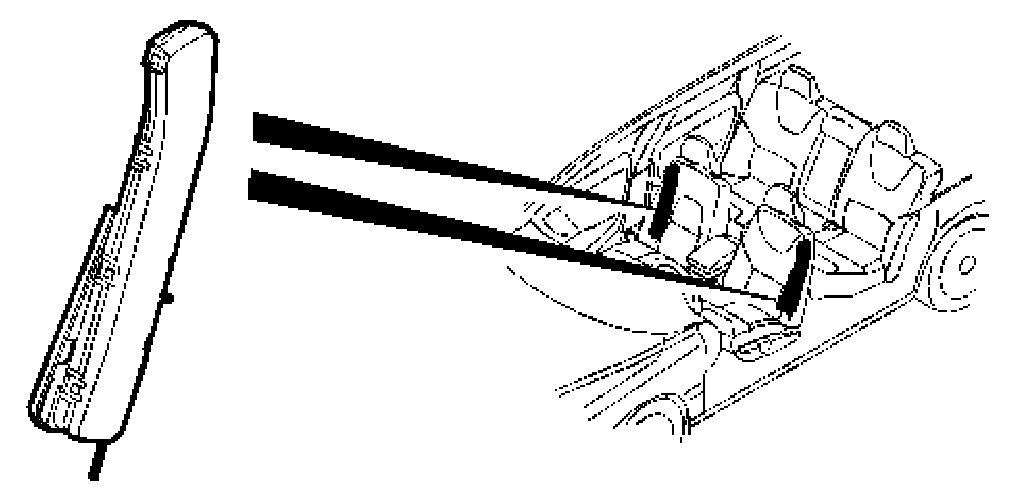

Side impact air bags
