Electronic Throttle Control Module: Service and Repair

Throttle body (electronic throttle module (ETM)), replacing

NOTE: The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal
Preparation





Remove:
^ the air intake between the front cover plate and the air cleaner (ACL) housing
^ the charge air pipe between the charge air cooler (CAC) and the electronic throttle module (ETM).

Removing the electronic throttle module (ETM)

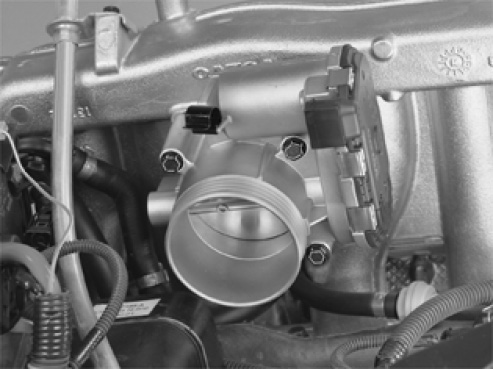

Disconnect the connector for the electronic throttle module.

Remove the 4 x screws for the electronic throttle module (ETM). Lift out the electronic throttle module (ETM). Discard the gasket.

Installation

NOTE: For tightening torques, see: Specifications.

Replacing the electronic throttle module (ETM)





CAUTION: Ensure that the surfaces between the throttle body (TB) and the intake manifold are clean.

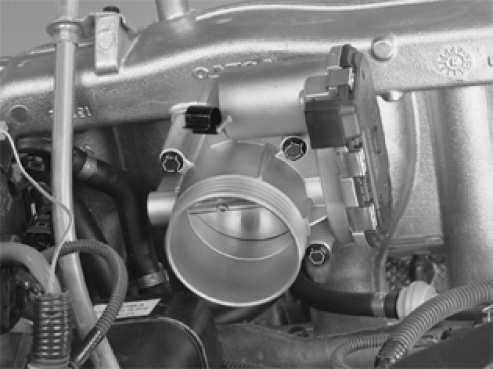

Install a new electronic throttle module (ETM). Use a new gasket. Tighten the 4 screws.

Installing components





Install the charge air pipe between the electronic throttle module (ETM) and the charge air cooler (CAC).

NOTE: Heat the pipe at the connections to facilitate installation.

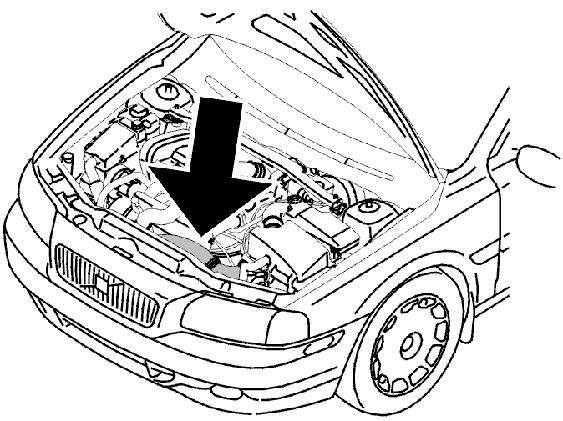

Install the intake pipe between the front cover plate and the air cleaner (ACL) housing.

Finishing
After replacing the electronic throttle module (ETM), the electronic throttle module (ETM) must be adapted using the vehicle communication input: "Adaptation of the electronic throttle unit"

Start the engine and check the function.
