Bulb Side Marker Lamps/Turn Signal Lamps, Replacing

Bulb Side Marker Lamps/turn Signal Lamps, Replacing

Removing the bulb for side marker lamps/turn signal lamps

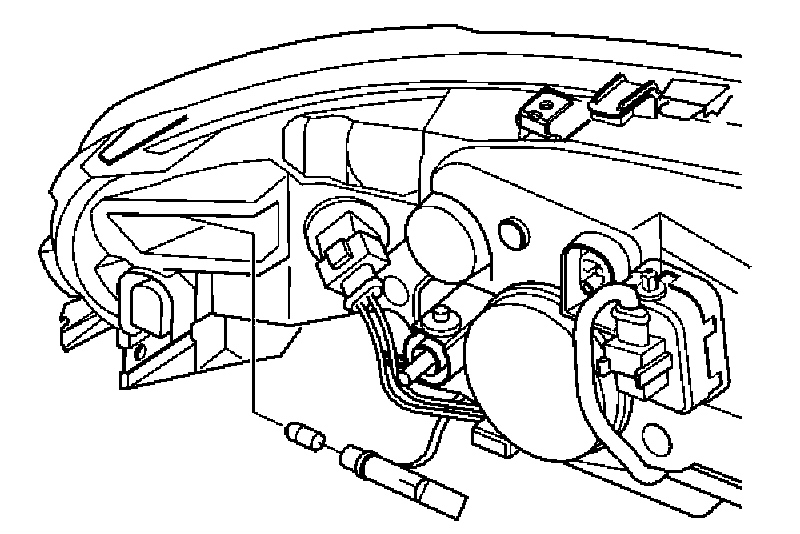

Side marker lamps

NOTE: Applies to the right-hand side only.

Remove the fuel filler pipe.







Remove:
- the bulb holder by pressing and twisting it
- the bulb.

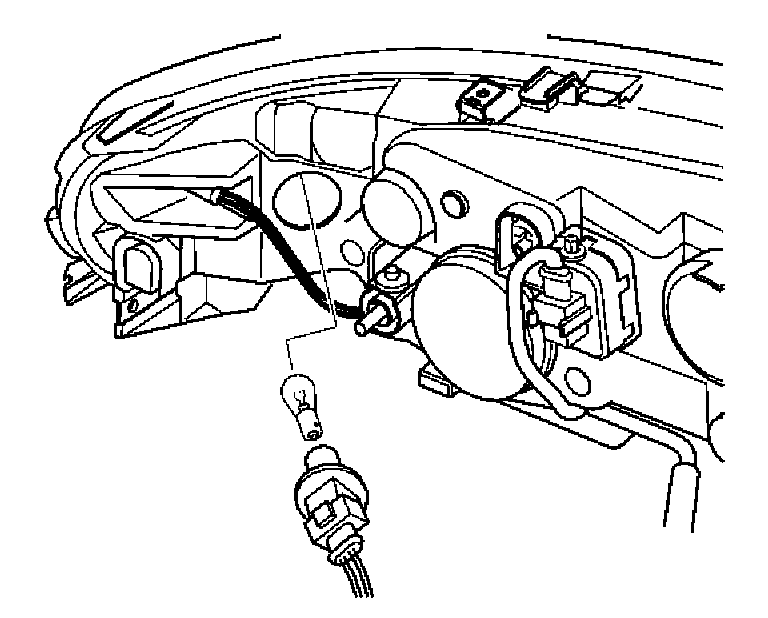

Turn signal lamps







Installing the bulb for side marker lamps/turn signal lamps

Install:
- the bulb
- the bulb holder by pressing and twisting it.

Installing the air cleaner (ACL) housing

Install the air cleaner housing by aligning the clip mountings and pressing in.







Check that the intake pipe is in position. Check that the clips engage the air cleaner housing properly.
