Towbar Cable Harness, 4-Pin



Towbar Cable Harness, 4-pin

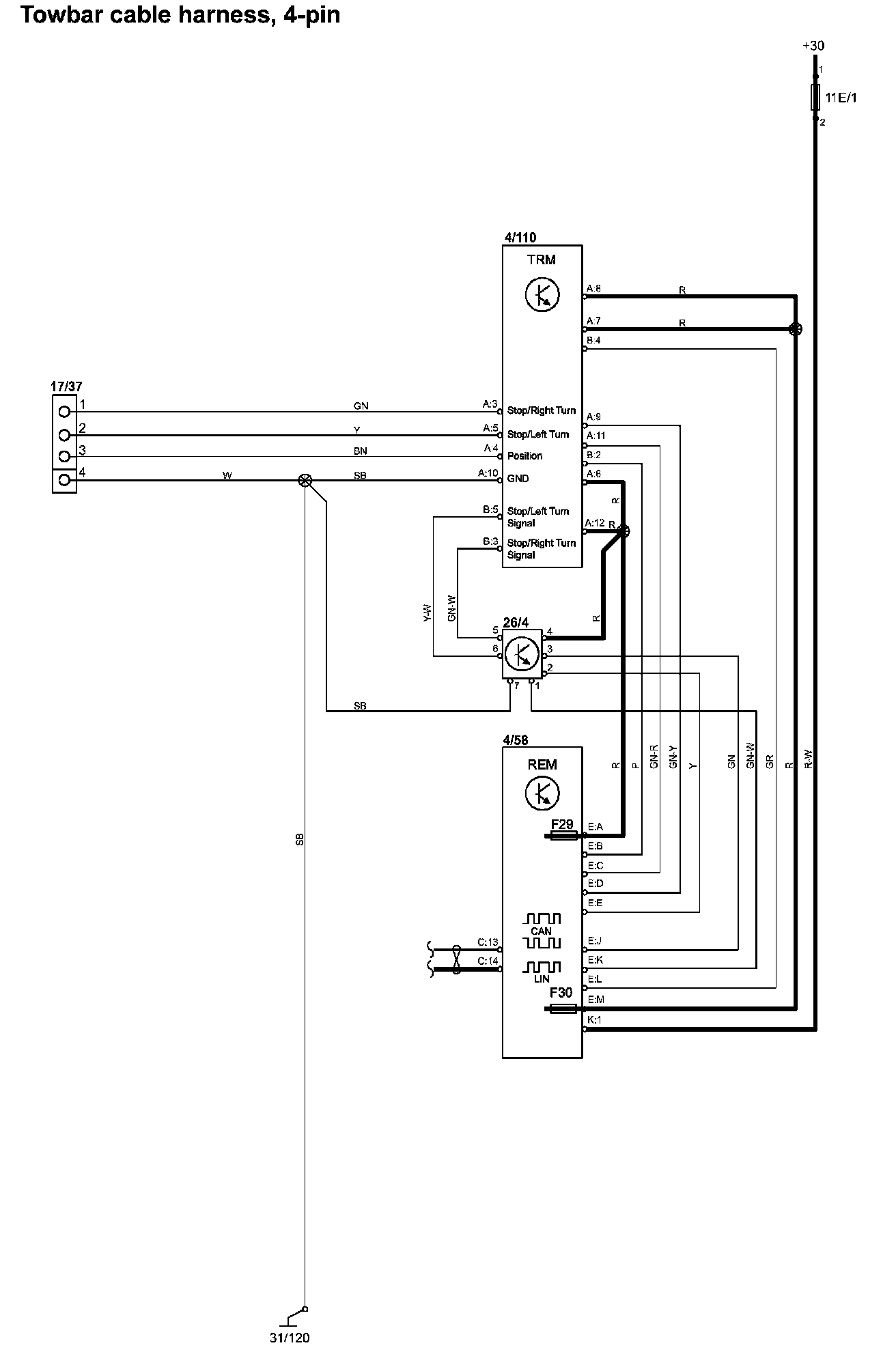

Towbar Cable Harness, 4-pin:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
