Door Mirror Ground Lighting

Bulb, Ground Lighting, Door Mirror, Replacing

Removal

Lamp and bulb assembly

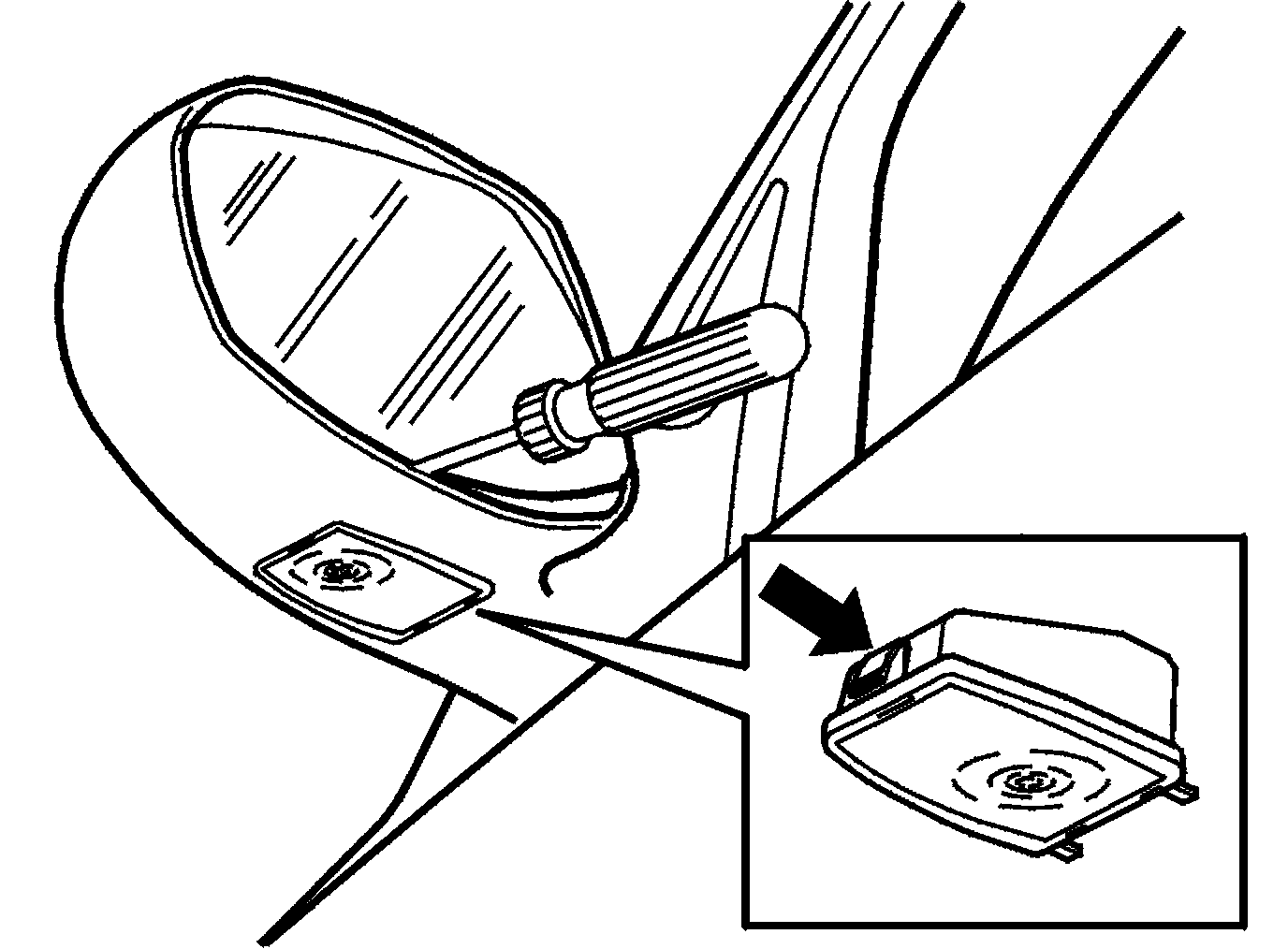

- Angle the mirror glass upwards/outwards
- Insert a screwdriver in the opening and press in the catch to release the lighting
- Pull out the bulb holder. Disconnect the bulb.

Installation

Lamp and bulb assembly
- Install the bulb
- Align the bulb holder and press into place.
