Muffler: Service and Repair

Muffler, Rear, Replace

Removing the rear muffler

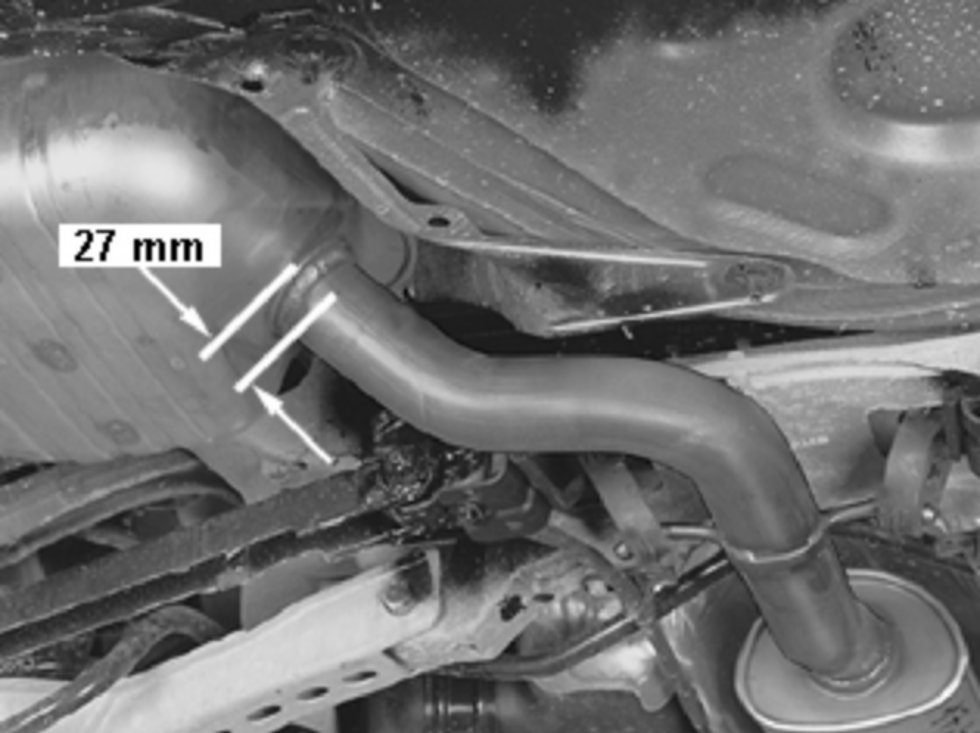

- Measure 27 mm from the muffler and along the pipe. See the above figure.
- Mark and cut the pipe. Use pipe cutter 115 8590.
- Remove the muffler.

Installing the rear muffler
- Polish the pipe with emery cloth.
- Install a new muffler.
- Tighten the clamp.

Check
Test run the engine. Check that the joint is properly sealed.
