Oil Line: Service and Repair
25: Turbocharger, B5254T2Gaskets, turbocharger oil return pipes, replacing
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
Removal
Raise the car.

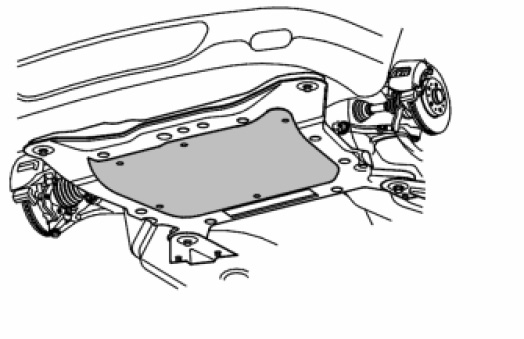

Remove the splash guard under the engine.
All wheel drive cars only:
Remove the bevel gear.
Oil pipe removal

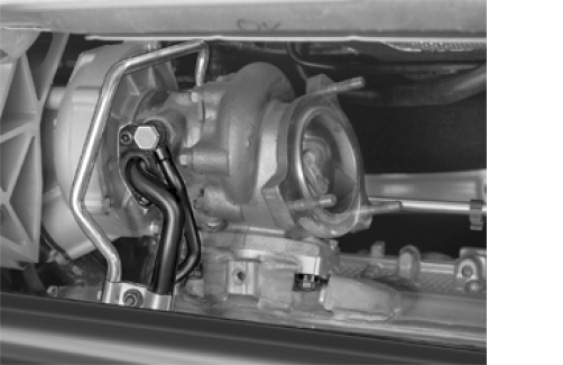

Disassemble the following items:
^ the clamp between the turbocharger oil delivery pipe and the oil return pipe.
^ the bolts at the oil return pipe's connection to the turbocharger.
^ Detach the pipe from the engine block. Check that the rubber sealing ring stays with the pipe. Seal the opening in the engine block.
The appearance of the turbocharger varies from model to model. Thus, the coolant pipe must be detached before the oil pipe can be detached. On these models, pinch-off pliers can be fitted to the input and output coolant hoses to the turbocharger to eliminate the need to drain the cooling system.

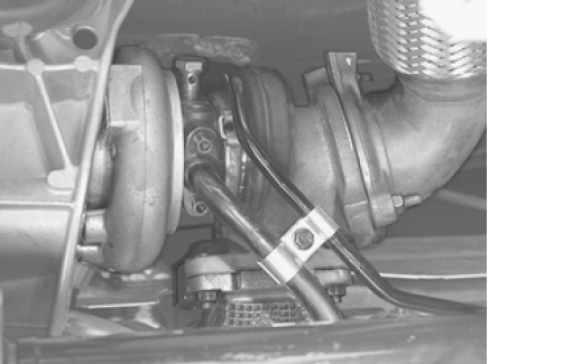

Fit pinch-off pliers to the turbocharger coolant hoses. Disassemble the following items:
^ the hollow screw on the connection to the input coolant pipe to the turbocharger. Move the pipe aside.
^ the clamp between the oil delivery pipe and the oil return pipe.
^ the bolts at the oil return pipe's connection to the turbocharger.
^ the pipe from the engine block. Check that the rubber sealing ring stays with the pipe. Seal the opening in the engine block.
Installation
NOTE: For tightening torques, See Specifications
Replace old gaskets.
Lubricate the engine block sealing ring with a little oil.
Reattach the oil pipe to the engine block and screw it in the turbocharger.
Tighten, see: Summary of specific components and tightening torques (Specifications).
Reattach the coolant pipe and screw it into place. Tighten as described in Summary of specific components and tightening torques (Specifications).
All wheel drive cars only:
Fit the bevel gear.
Reinstall the splash guard under the engine.
