Cylinder Block Assembly: Service and Repair

Cylinder Block, Measurement

Measuring the cylinder bore







As the illustrations in this service information are used for different model years and/or models, some variation may occur. However, the essential information in the illustrations is always correct.

First clean the cylinder bores and check them visually.

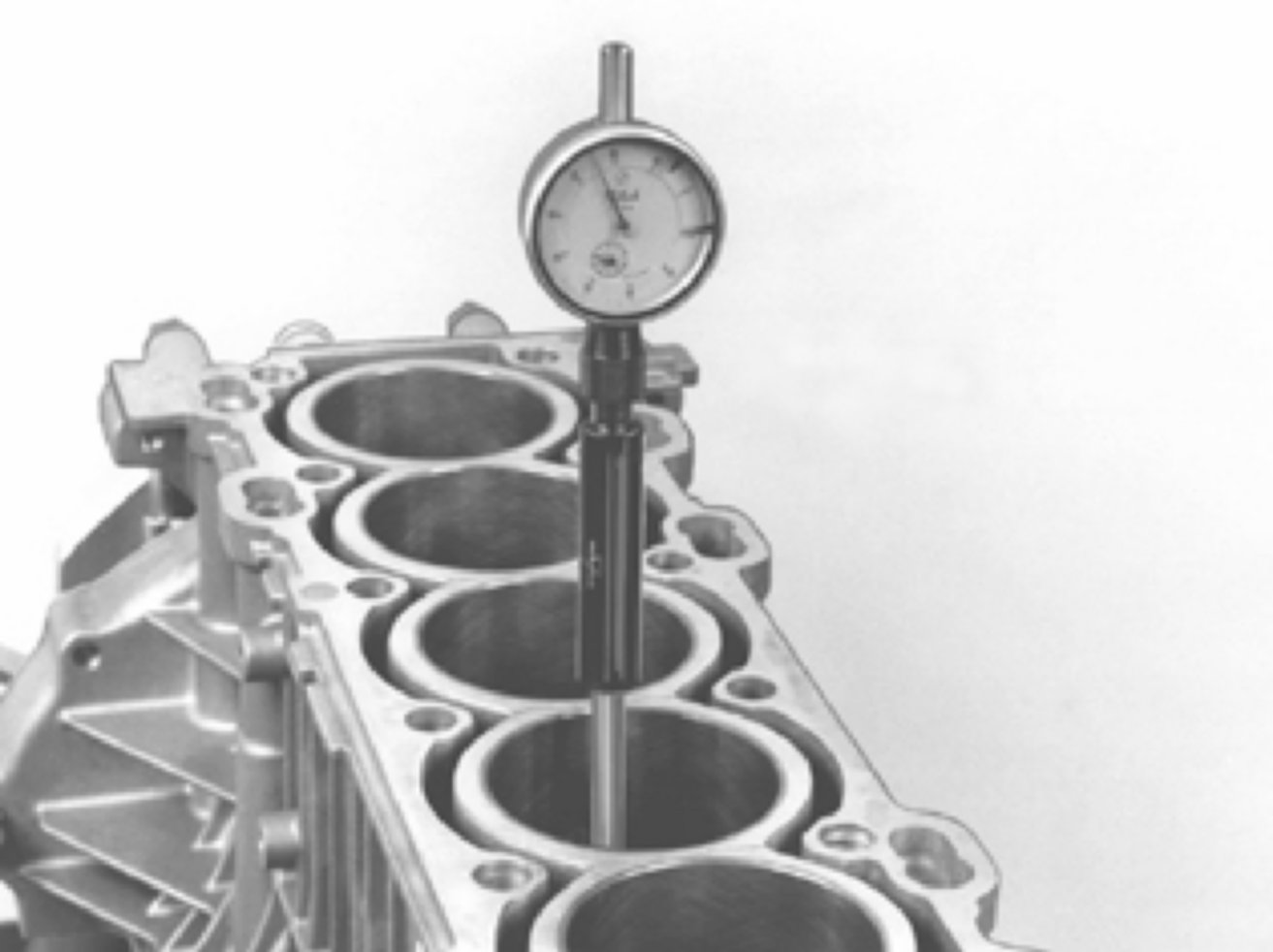

Measure the cylinder bores. Use a bore gauge (50 - 100 mm), a micrometer and a micrometer stand.

Set the micrometer to maximum cylinder bore diameter tolerance using the marking on the cylinder block.

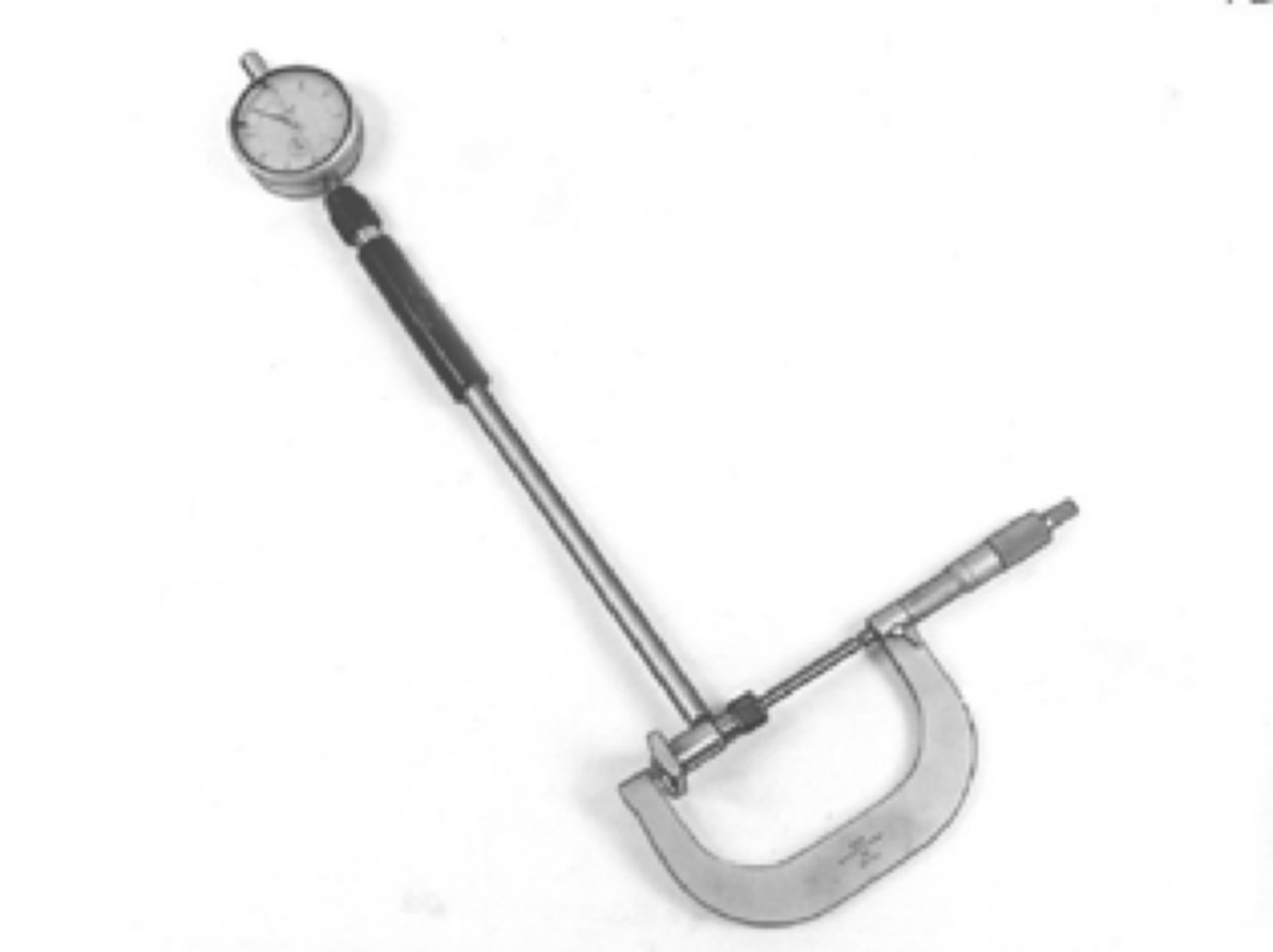

Calibrate the bore gauge in the micrometer.

Checking for wear







- Take measurements for the greatest amount of wear across the engine, just before the upper limit position.
- Take measurements for the lowest amount of wear along the length of the engine, at the lower limit position.

Classification marking







Each cylinder is stamped with a classification letter (C, D or E) at the rear edge of the cylinder block.
