Data Communication Low Speed CAN

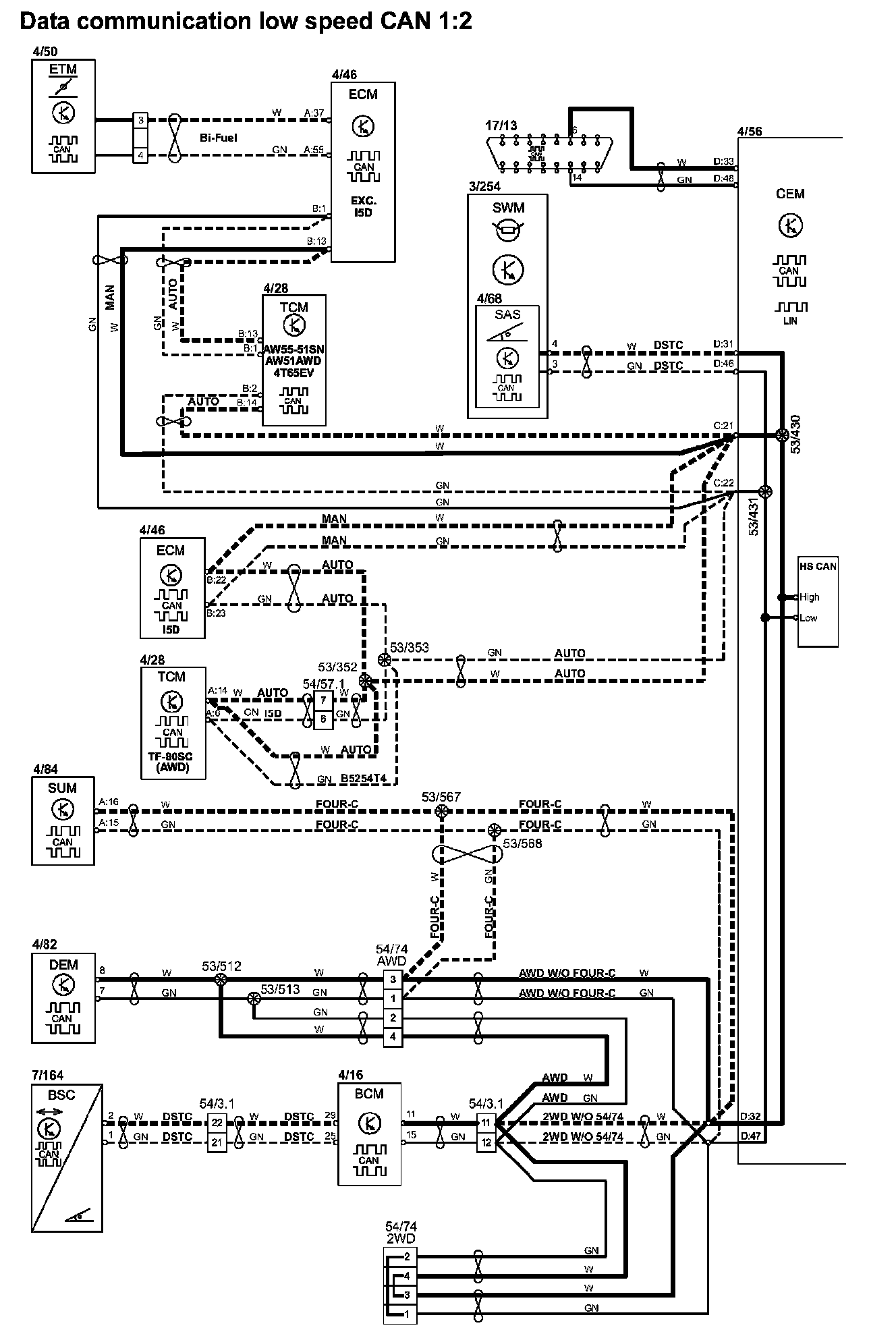

Data Communication Low Speed CAN 1:2

Data Communication Low Speed CAN 1:2:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
