Electrical Distribution, Overview



Electrical Distribution 1:2, Overview

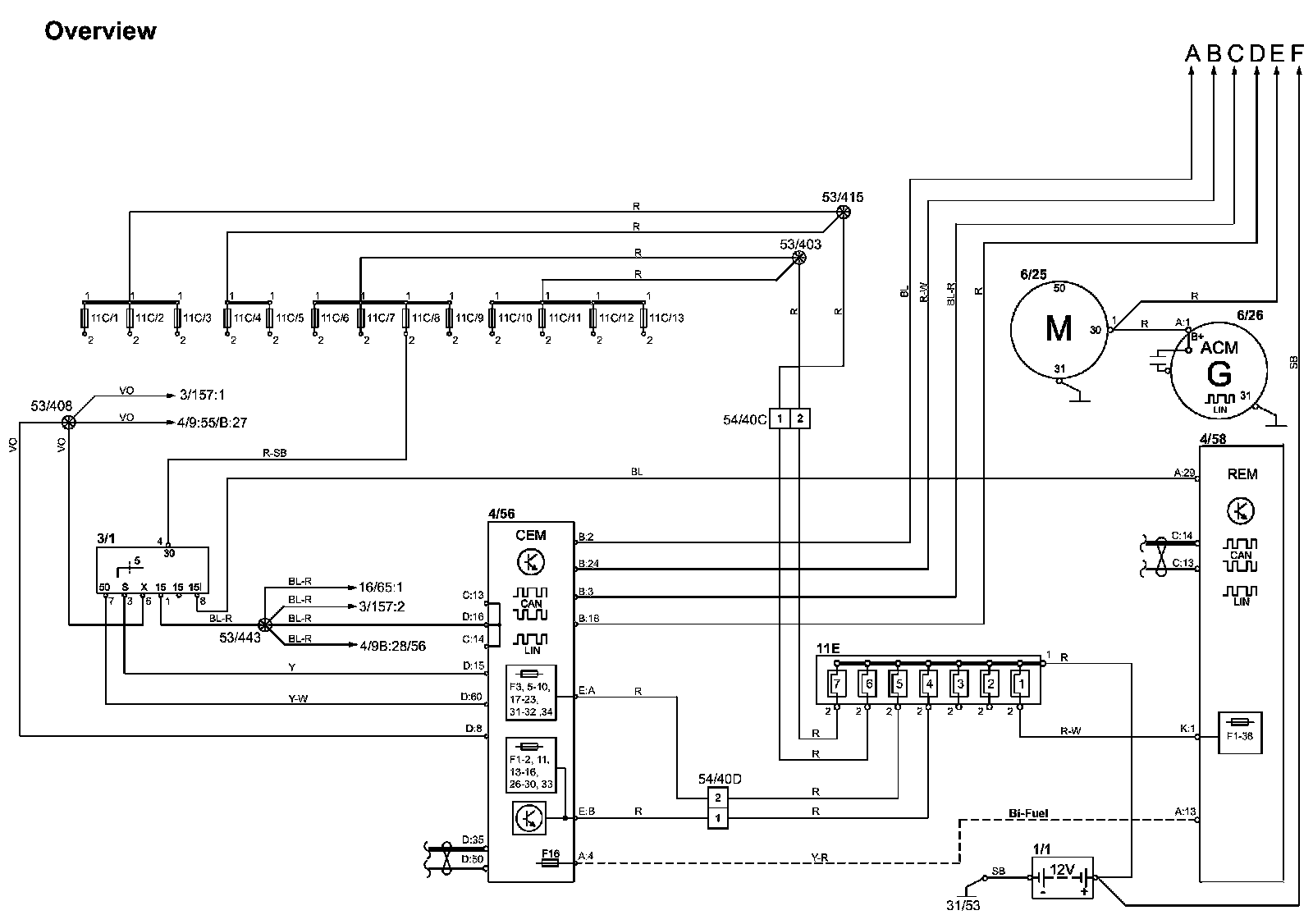

Electrical Distribution Overview - Part 1:

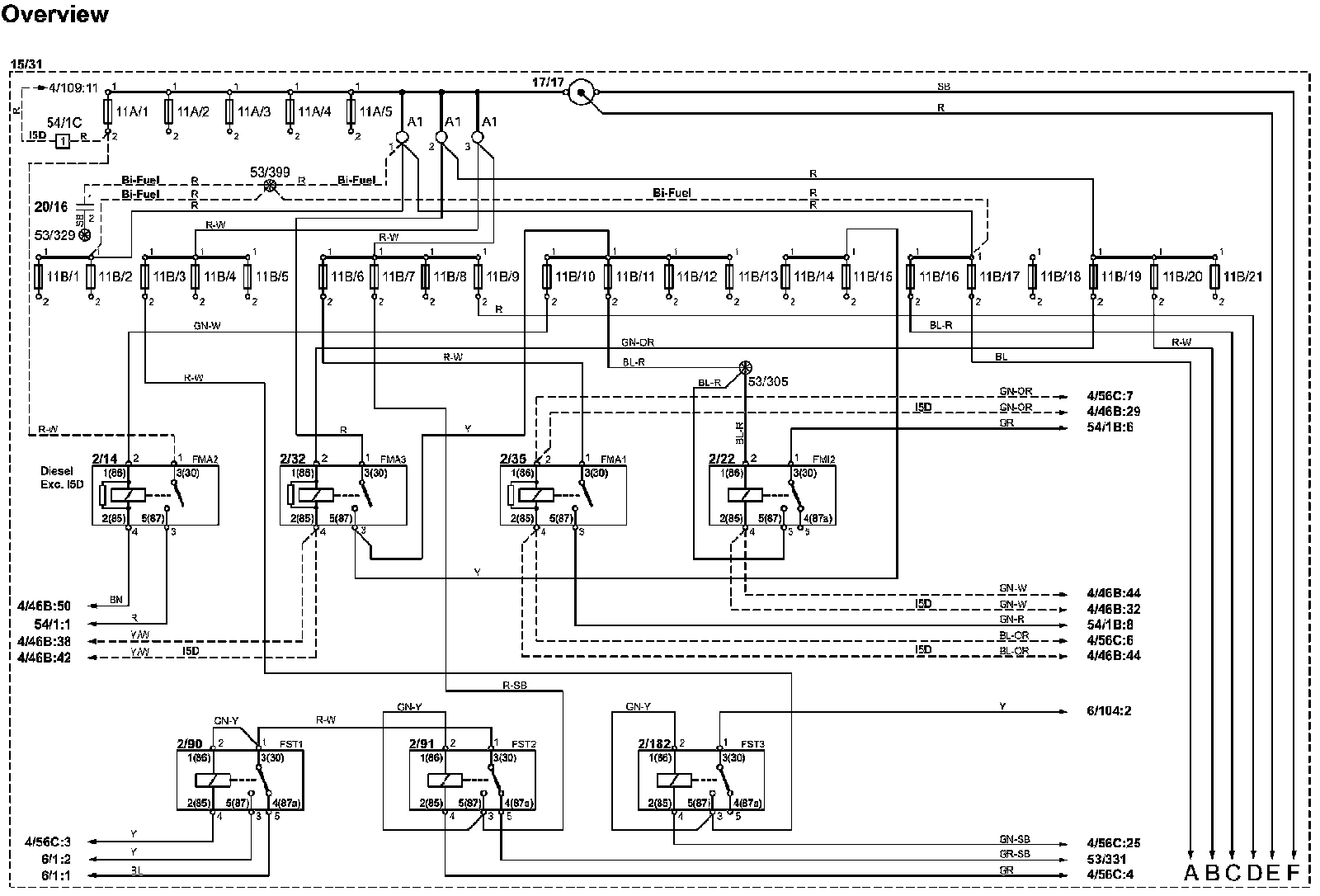

Electrical Distribution Overview - Part 2:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
