Soundproofing Panel, Replacing

Soundproofing Panel, Replacing

Replacing the driver's side soundproofing panel

NOTE: The side panel may be scratched if it is not removed before the soundproofing panel.

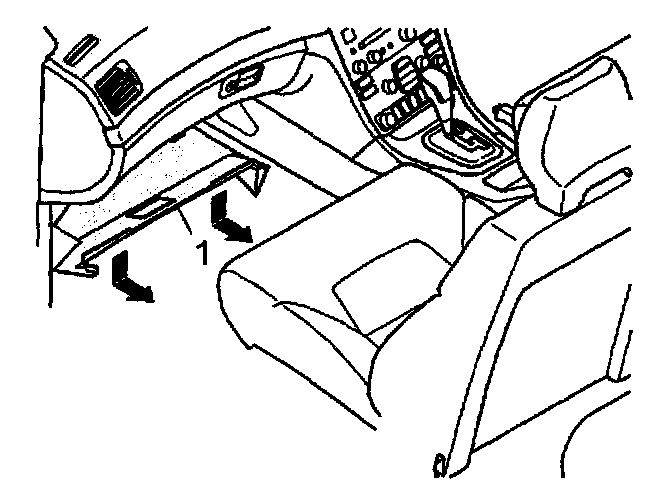

- Remove the side panel on the center console.

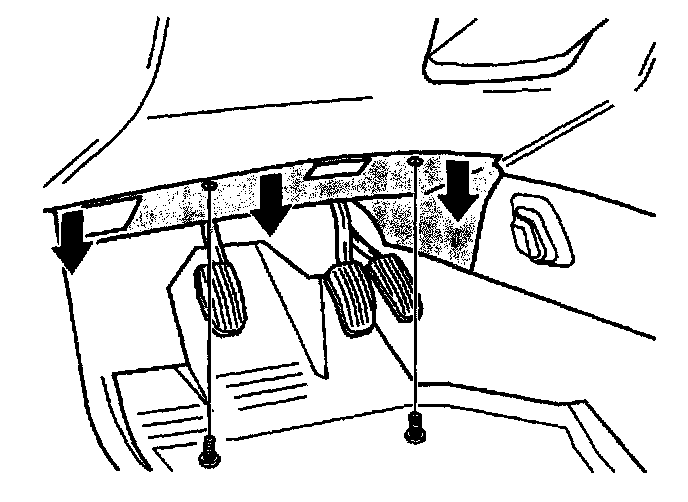

The reverse of the soundproofing panel is secured to the dashboard with clips and sits in a groove by the pedal box.







- Remove the two screws
- Pull the soundproofing panel straight down at the dashboard
- Pull the soundproofing panel backwards into the car
- Lift out the soundproofing panel.

Install:
In reverse order.

Replacing the passenger side soundproofing panel
The back of the soundproofing panel is secured to the dashboard with clips and sits in a groove at the front.







- Remove the two screws
- Pull the clips straight down
- Pull the soundproofing panel backwards into the car
- Lift out the soundproofing panel.

Install:
In reverse order.
