Front-Rear Adjustment Motor

Front-rear adjustment motor

Removing the front-rear adjustment motor




Remove the seat from the car. See Removing power seats, tilting Removal and Replacement.

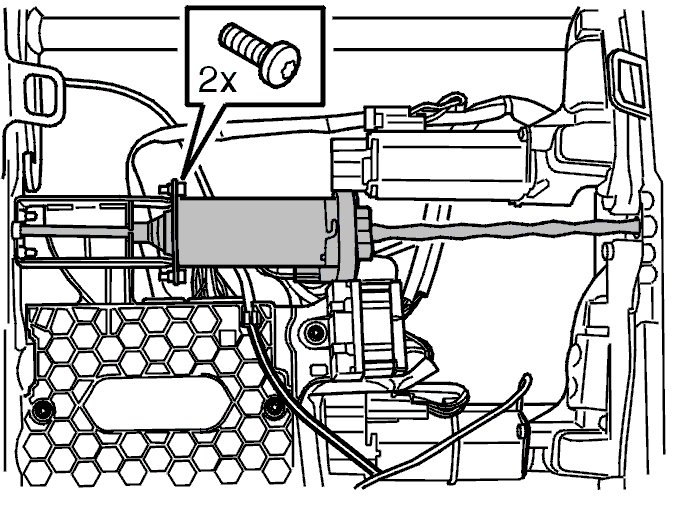

Remove the two screws.
Carefully pull out the motor and drive shaft.

Note! Do not damage the guide bushing.

Disconnect the connector at the control module or the connector at the motor.

Note! Carefully release the catches on the connector.

Remove the motor.

Installing the front-rear adjustment motor

Install:
- the motor
- the connector
- the motor
- the two screws
- the seat. See Removing power seats, tilting Removal and Replacement.
