Paint: Application and ID

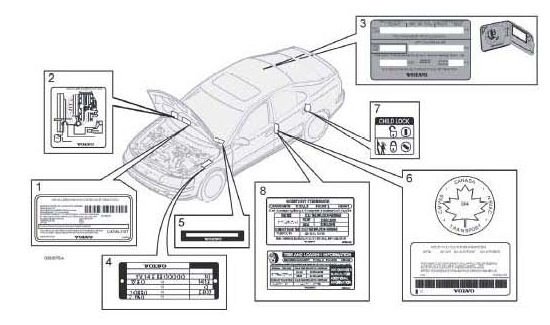

MODEL PLATE (4)
Codes for color and upholstery, etc. The plate is located in the engine compartment, on the inside of the left front fender.

COLOR CODE
CODE 19, Stone black
CODE 189, Polar white
CODE 417, Dark blue pearl
CODE 421, Dark olive pearl
CODE 426, Silver metallic
CODE 427, Dark grey pearl
CODE 442, Java pearl
CODE 443, Moondust pearl
CODE 444, Arctic dawn metallic
CODE 445, Venetian pearl
CODE 446, Ash gold
CODE 447, Scarab green
CODE 449, Mistral green
CODE 450, Cosmos blue
CODE 451, Maya yellow
CODE 452, Black sapphire
CODE 453, White pearl
CODE 454, Ruby red pearl
CODE 455, Titanium grey
CODE 456, Crystal green
CODE 457, Flash green
CODE 458, Ocean blue
CODE 459, Dawn blue
CODE 463, Blackcurrant
CODE 465, Cedar Green
CODE 466, Barents Blue
CODE 467, Magic Blue
CODE 468, Lava Sand
CODE 469, Lunar Gold
CODE 470, Sonic Blue
CODE 471, Willow Green
CODE 477, Electric Silver
CODE 478, Maple Red
CODE 479, Orinoco Blue
CODE 601, Classic red
CODE 604, Midnight blue
CODE 612, Passion red
CODE 613, Deep blue
CODE 614, Ice white
CODE 932, for aluminium rims, antracit
CODE 935, white silver, for aluminium rims
