Side Panel Upper Center Console, Replacing

Side panel upper center console, replacing

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

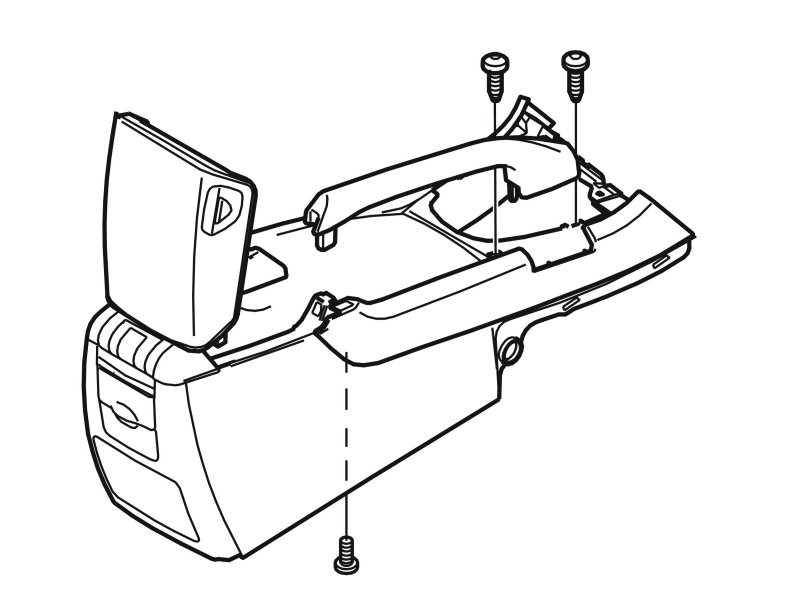

Removing the upper side panel, center console





Remove:
- the center console. See: Center console, replacing Center Console, Replacing
- the 3 screws
- the handle. Check that the seal comes with it
- the upper side panel.

Installation

Installing the upper side panel, center console

Install:
- the side panel
- the handle. Check that the seal is in position
- the 3 screws
- the center console. See: Center console, replacing Center Console, Replacing.
