Cover/Armrest Tunnel, Replacing

Cover/armrest Tunnel, Replacing

NOTE: The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

Removing the cover / armrest







Remove:
- the rear cigarette lighter socket. See: Cigarette lighter assembly/electrical socket rear, replacing

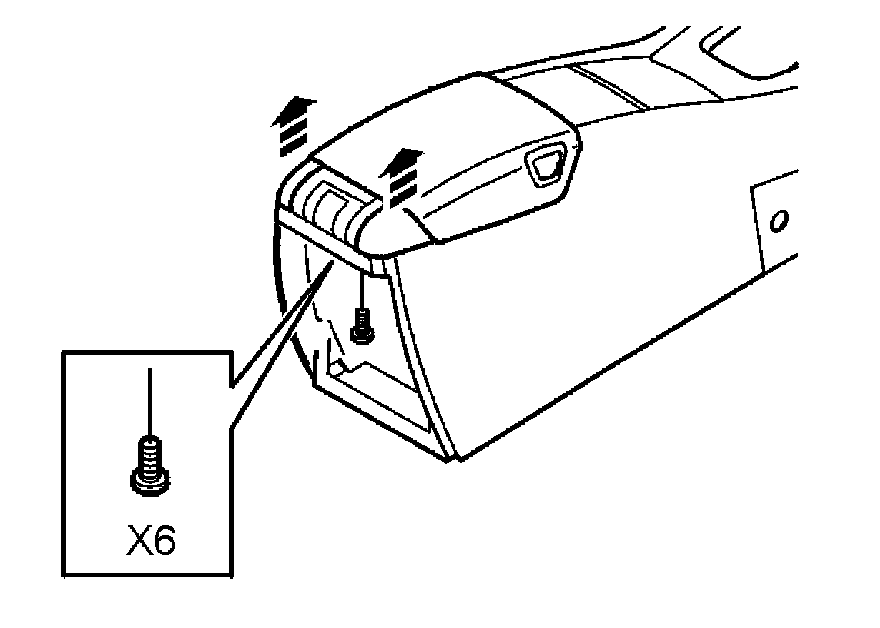

- the 6 screws
- the armrest
- the 2 covers.

Transferring components

Transferring the cover

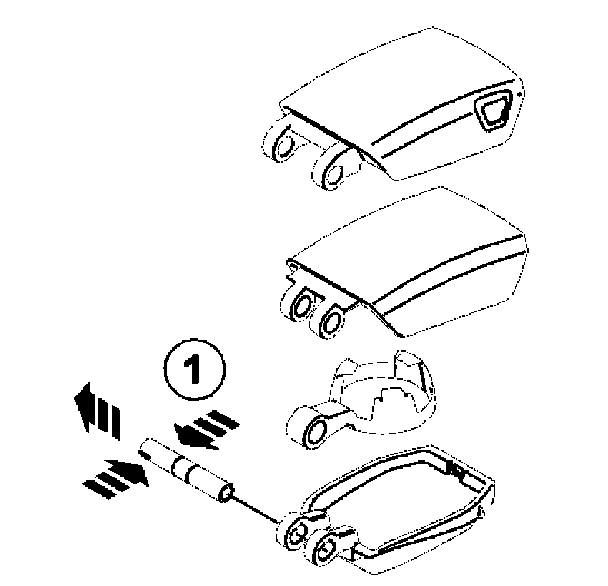

Remove the shaft by pressing the catches as illustrated (1). Press straight out.

HINT: Use a sleeve with extension rod. Press the shaft out.

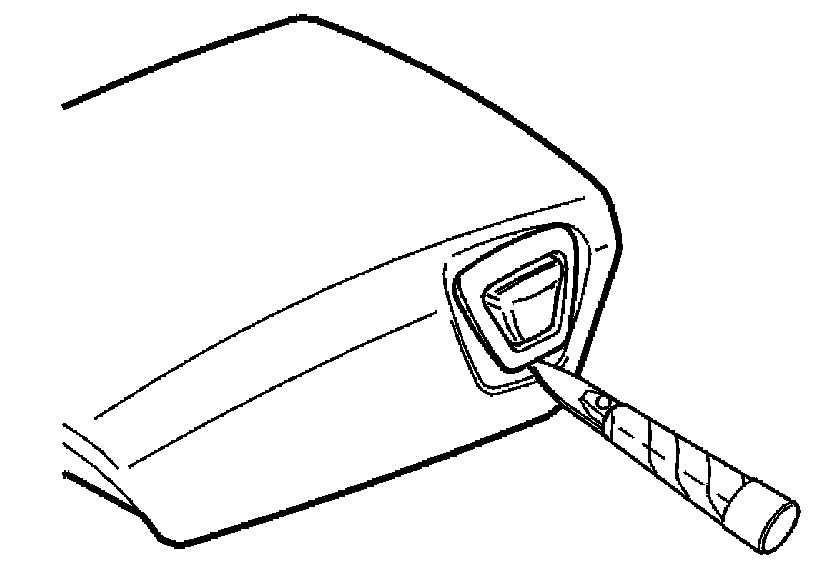

Remove the 2 covers.

HINT: Use a weatherstrip tool and pry from below.

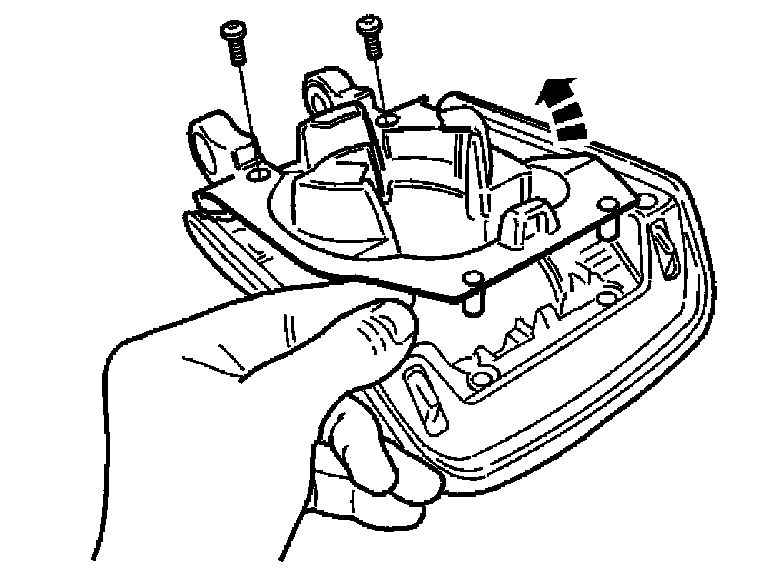

Remove the 2 screws. Unclip the upper cover as illustrated.

NOTE: Take note of the springs.

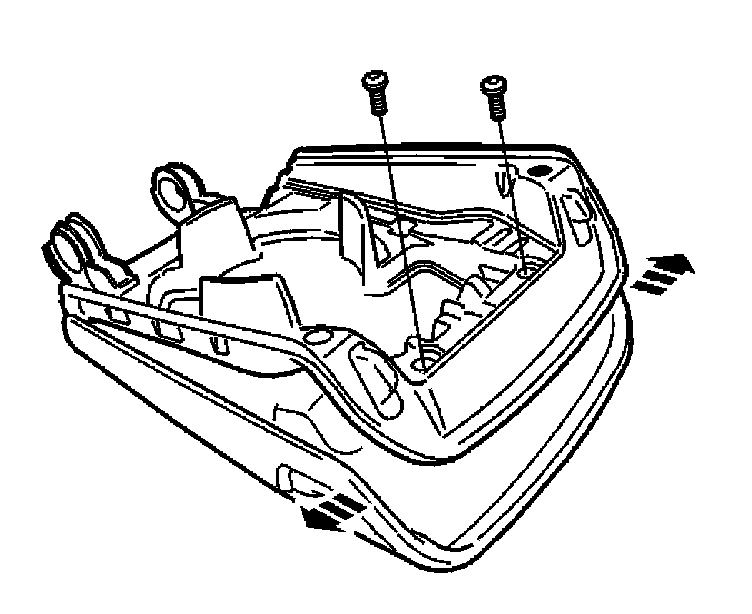

Remove the 2 screws. Disassemble the lower cover by prying out the lower edge at the buttons. Separate the lower section from the upper section.







Installation

Installing the cover / armrest

Install:
- the 2 covers Align the guides on the sides
- the 2 screws
- the cover/armrest.

NOTE: Note the position of the springs.

Install:
- the 2 screws
- the armrest
- the 2 covers
- the 6 screws
- the rear cigarette lighter socket. See: Cigarette lighter assembly/electrical socket rear, replacing.
