Components Center Console, Replacing

Components Center Console, Replacing

Replacing the parking brake panel

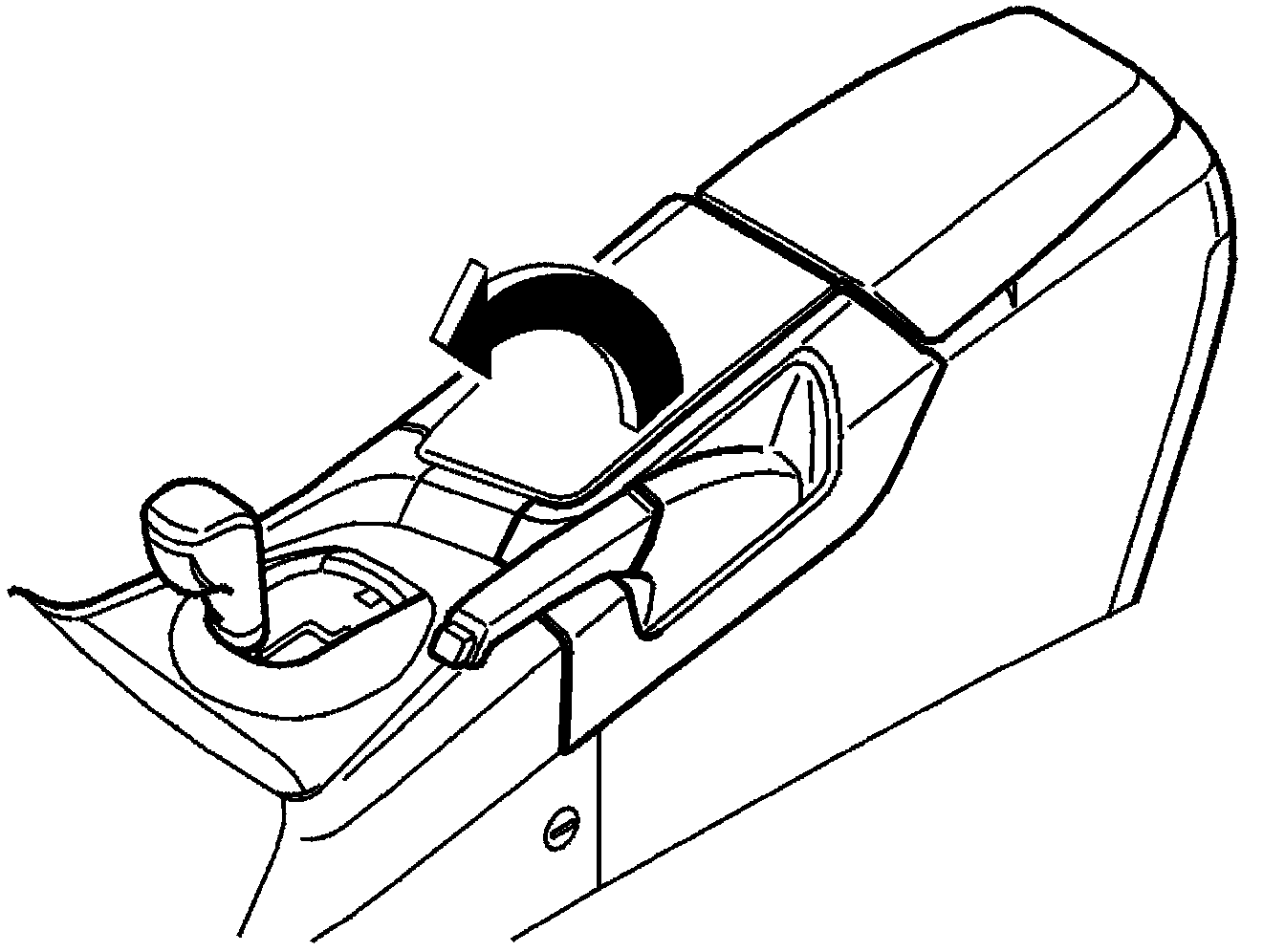

- Open the armrest hatch and the cover on the cup holder
- Thread the boot over the parking brake lever.

Install:
In reverse order.

Replacing the gear selector panel
- Remove the pen holder panel







- Move the gear selector to a rear position

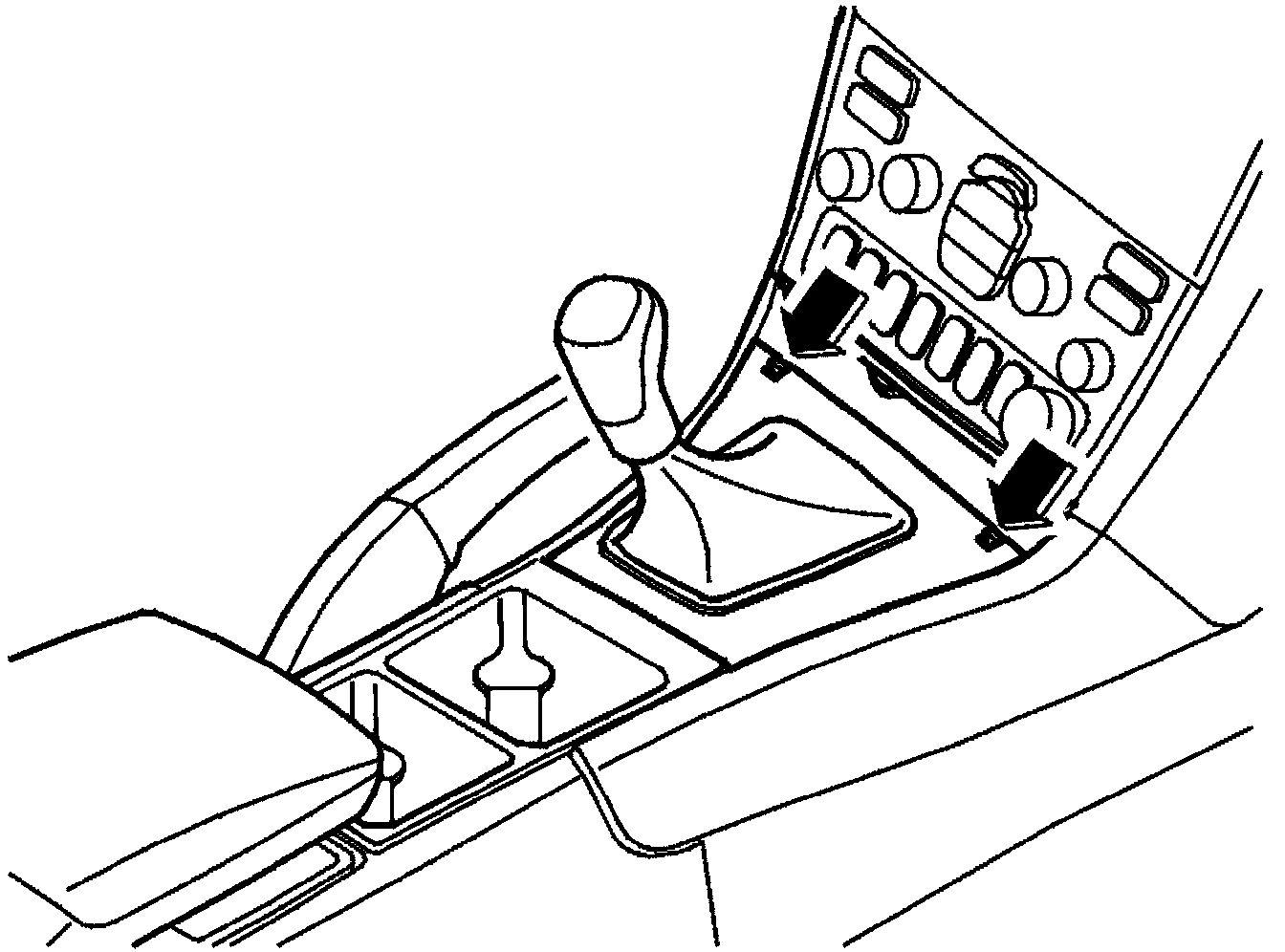

- Release the catches at the front edge
- Lift the front edge of the panel
- Lift up the panel.

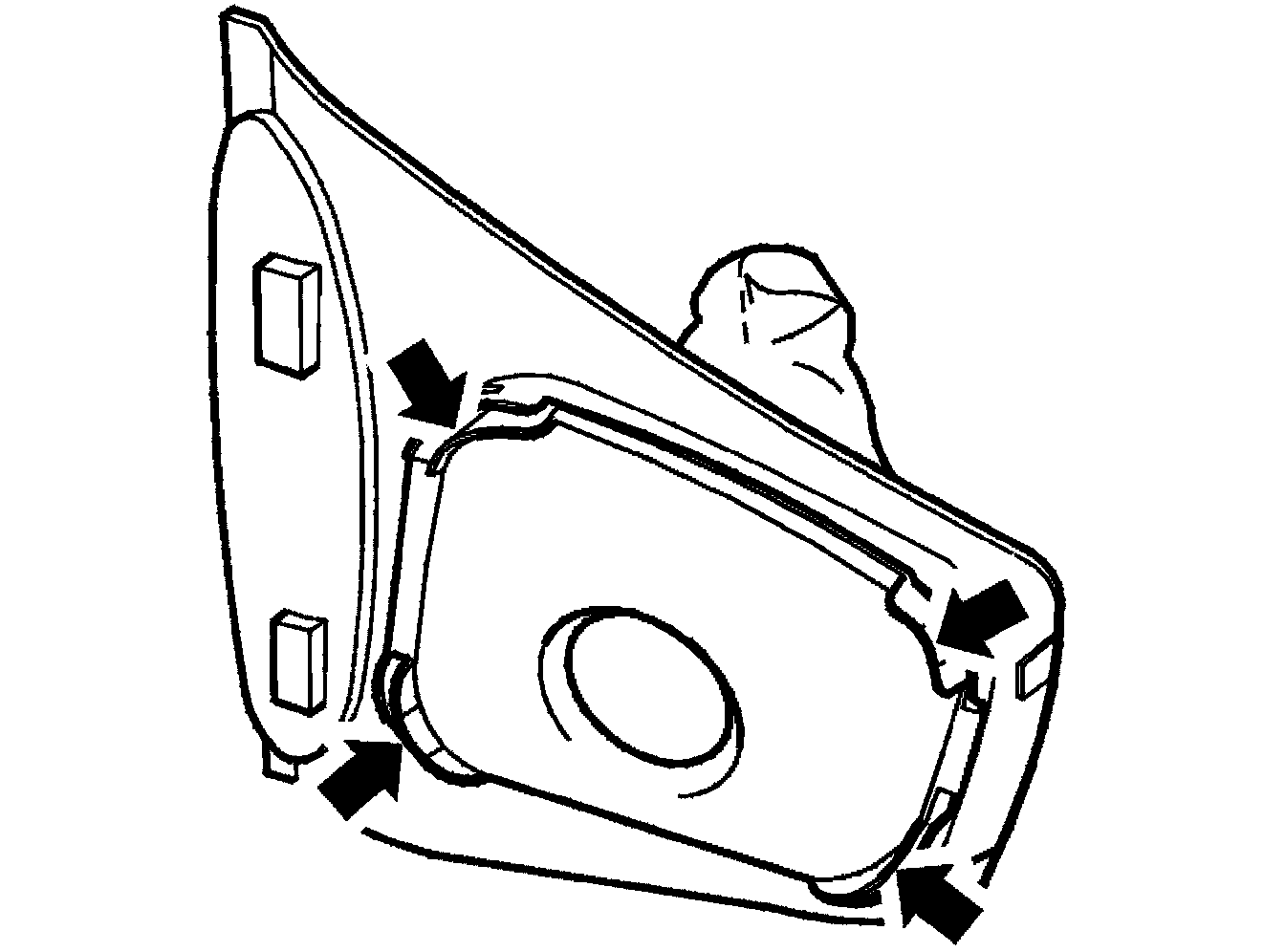

Release the four catches on the underside.

Press up the inner section of the panel.

Release the frame.

NOTE: Do not pull or lift the boot. Doing so could damage the seams.

Install:
In reverse order.

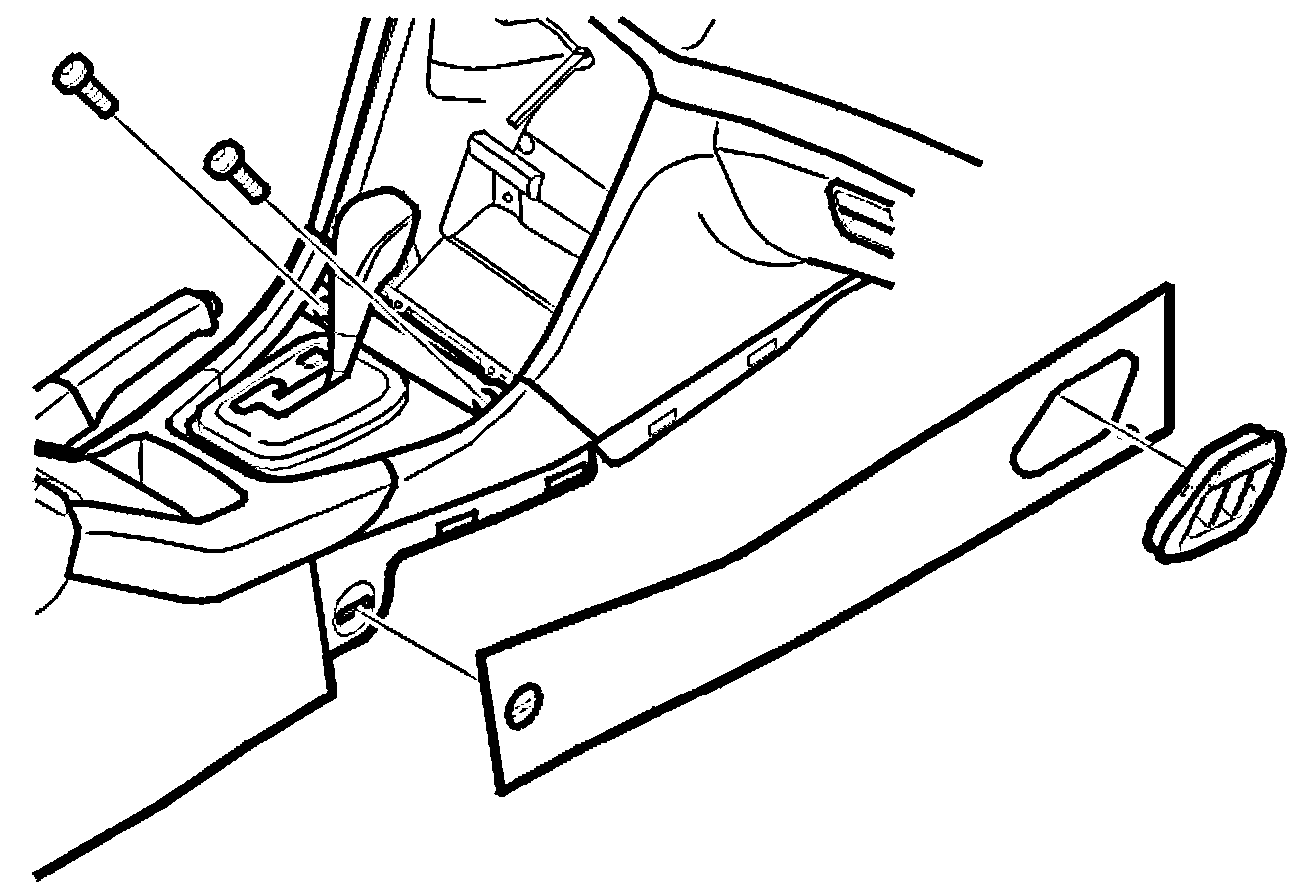

Replacing the side panel







- Remove the soundproofing panel
- Move the front seat to the rear most position

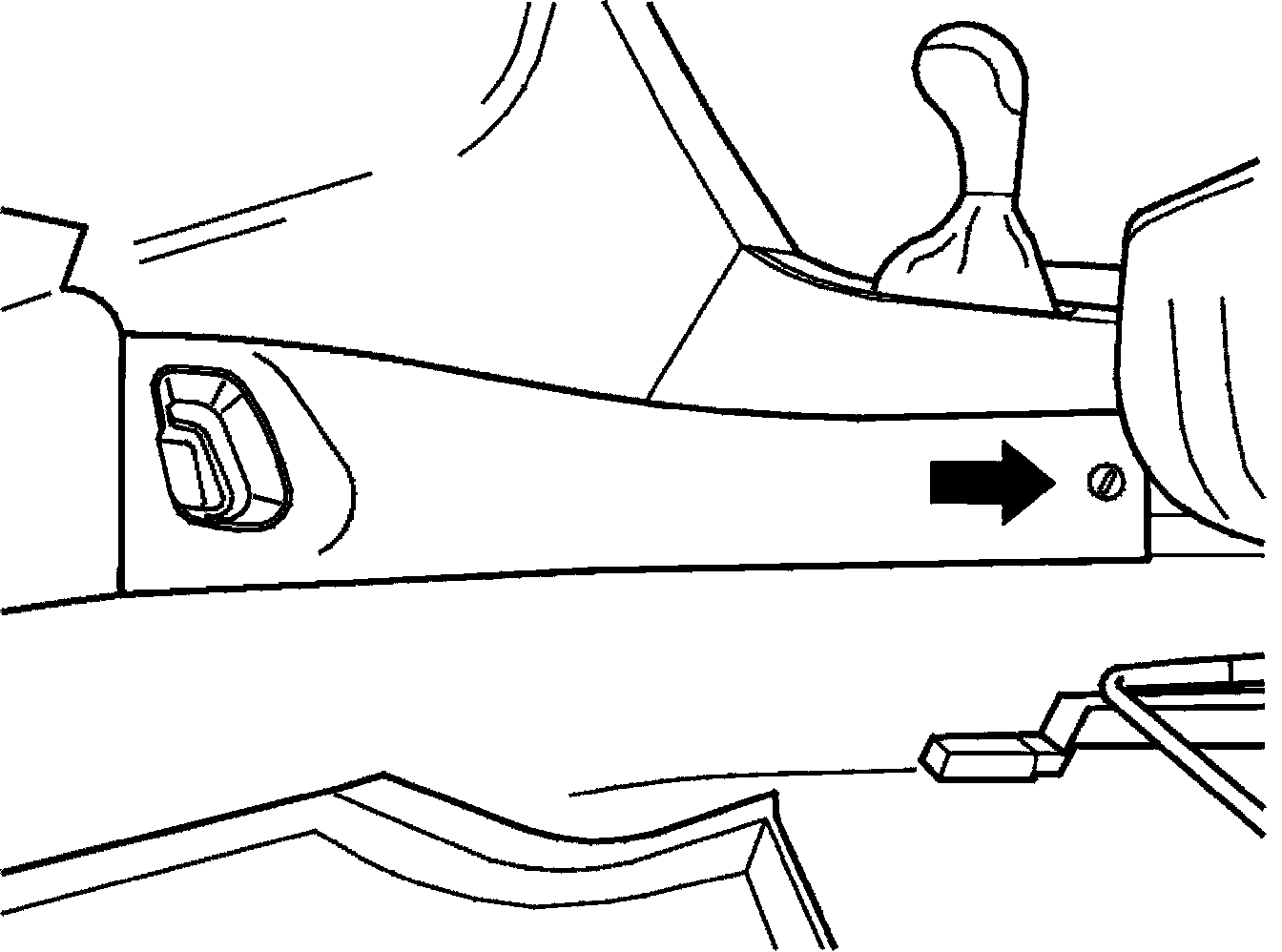

- Turn the clips a 1/4 turn.

HINT: Use a washer or a coin.

- Slide the panel backwards
- Remove the panel.







- Unsnap the nozzle.

Install:
In reverse order.

Replacing the rear ashtray

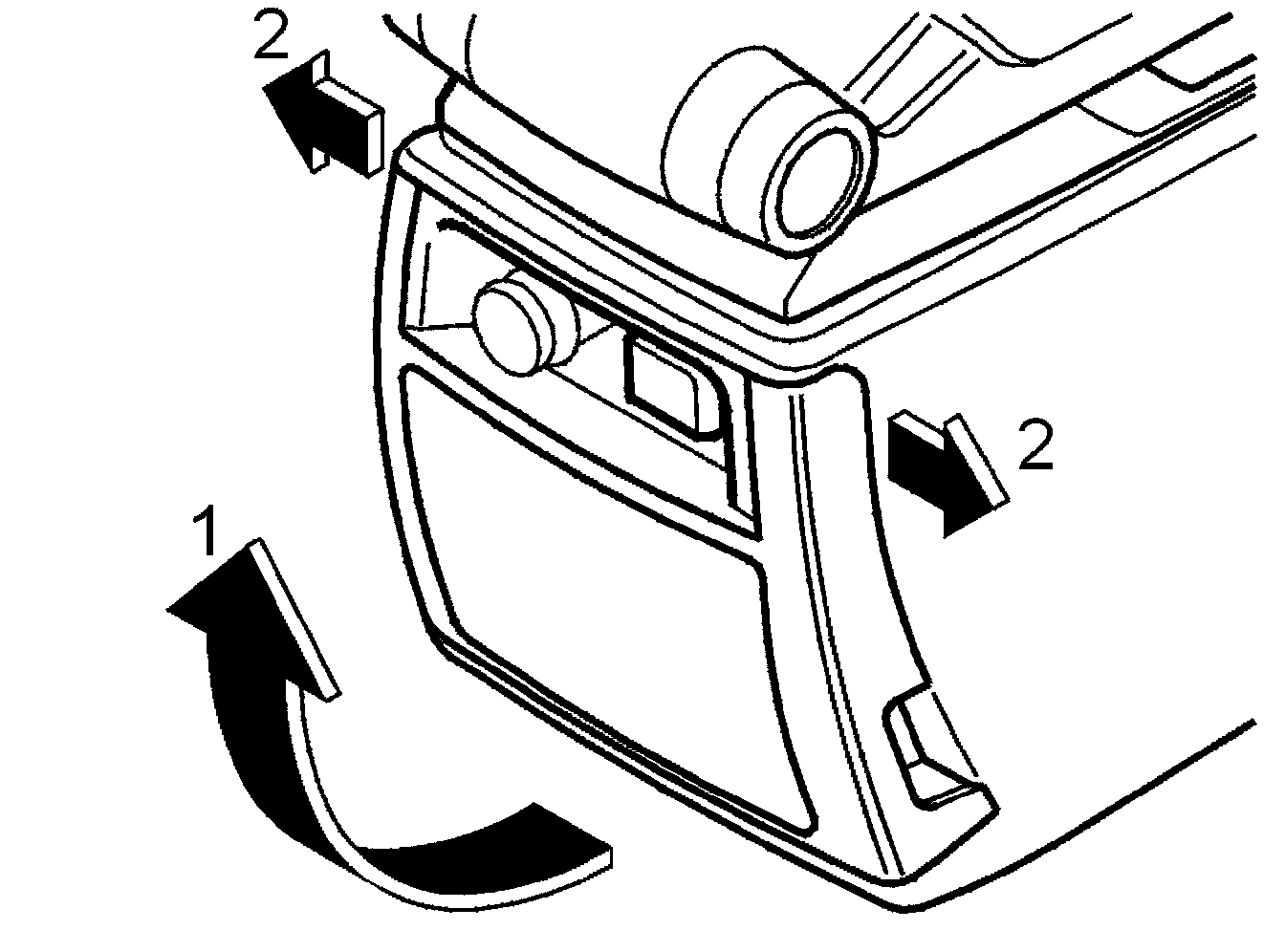

- Open the ashtray so that it passes the hooks
- Release the catches on one side. Use a screwdriver
- Pull the same side straight out
- Carry out the above procedure on the other side
- Remove the connector.

Install:
In reverse order.

Replacing the front box
- Slacken off the 4 screws on the underneath
- Fold the box forwards and downwards.

Install:
In reverse order.

Replacing the rear section







- Open the armrest
- Unclip the blind cover plug for the hinge. Use a screwdriver
- Slide the cover forward
- Remove the two screws for the armrest
- Remove the armrest assembly by twisting it and pulling it straight up
- Slacken off the two screws for the rear section under the hinge mounting
- Unclip the mounting at the rear edge
- Fold the rear section backwards
- Pull straight upwards and outwards.

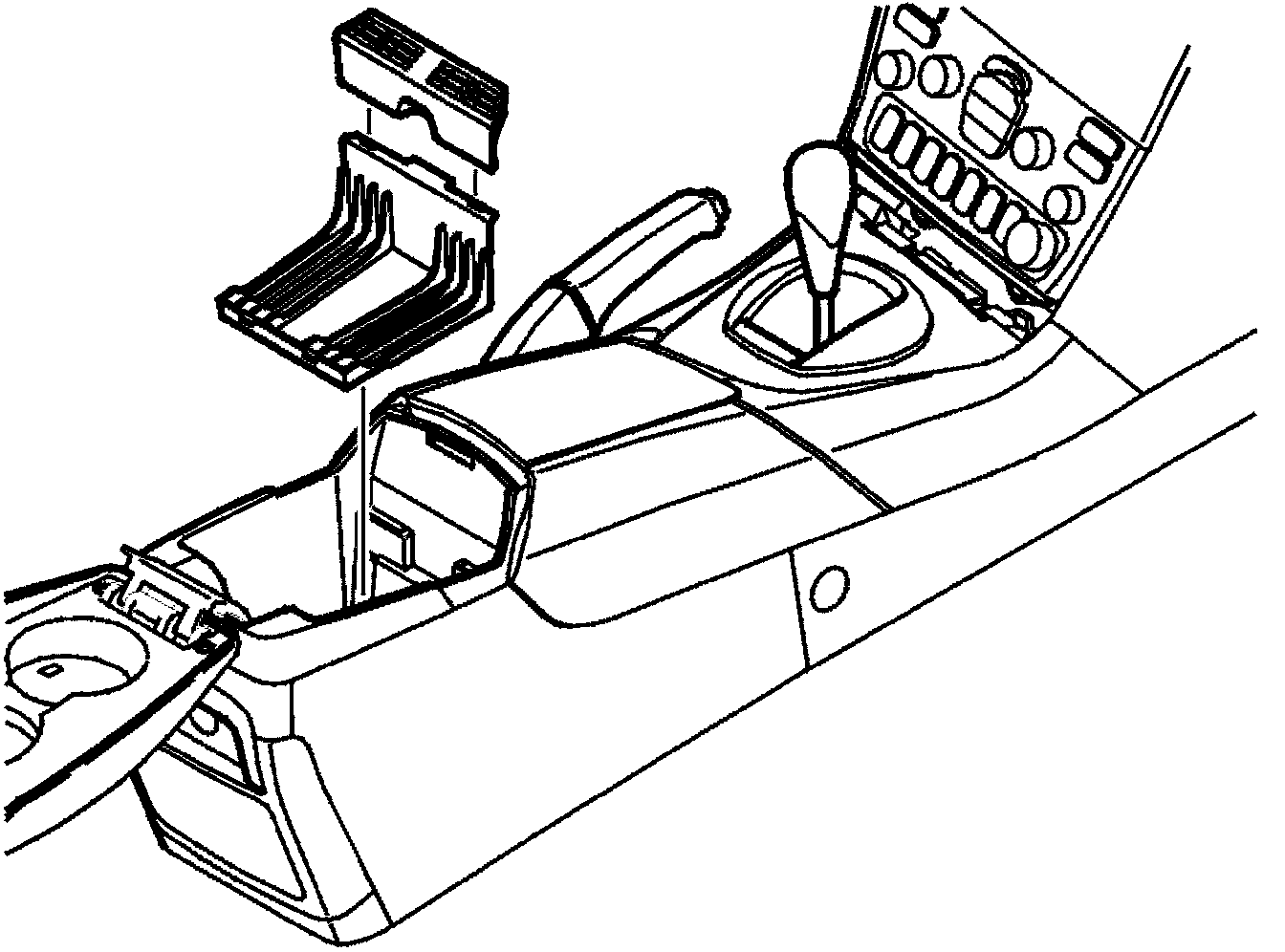

Removing the coin holder or CD compartment







Pull the coin holder straight up.

Detach the CD compartment by releasing the catch at the front edge.

Lift straight up.

Removing the handset
Remove the handset.
