Belt Molding, Replacing

Belt Molding, Replacing

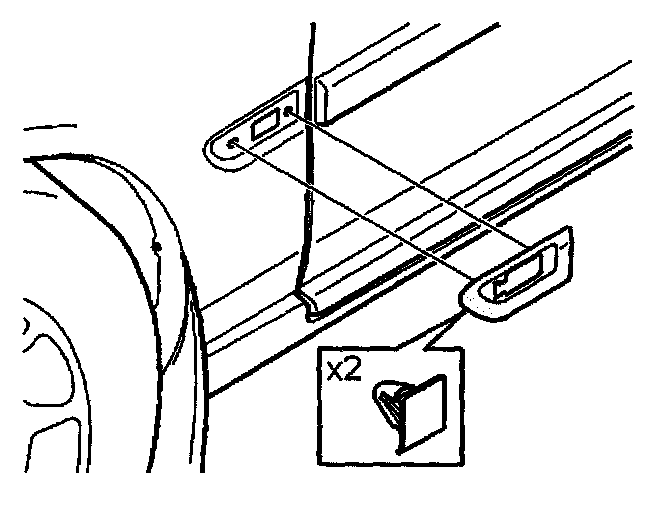

Removing the front trim molding







- Remove the turn signal lamps.
- Detach the two covered clips and locating pins by pulling straight out.

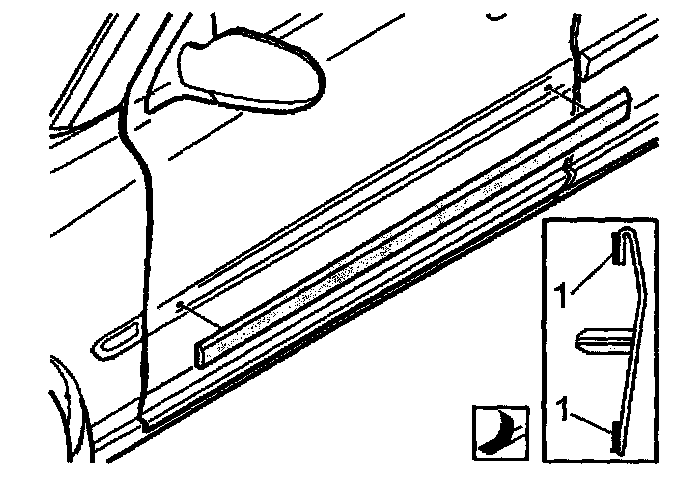

Removing the trim molding from the front door







- Detach the two covered clips and locating pins and the double-sided adhesive tape by pulling straight out.

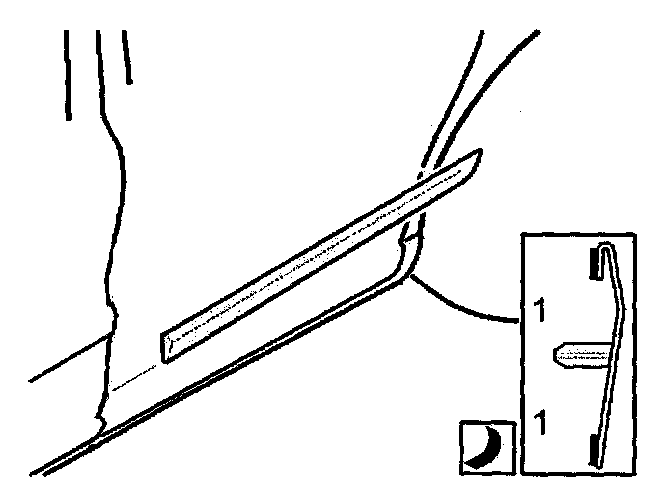

Removing the trim molding from the rear door







- Detach the two covered clips and locating pins and the double-sided adhesive tape by pulling straight out.

Installing the trim molding

Install:
- Remove any adhesive residue. Use isopropanol.
- Ensure that the trim is positioned correctly against the stamped section.
- Remove the masking tape.
- Guide the clips into the holes.
- Press the trim into place. Massage the tape after application.
