Signal Specification, Road Traffic Information (RTI)

Signal Specification, RTI

Connecting the breakout box and checking the ground terminal

NOTE: Before taking readings, the breakout box must be connected and the ground terminal must be checked.

Definitions
DC = voltage in volts (V)
Ulow = Ground, shield ground
Ubat = Battery voltage

RTI control module
Before taking readings, the breakout box must be connected and the ground terminal must be checked.

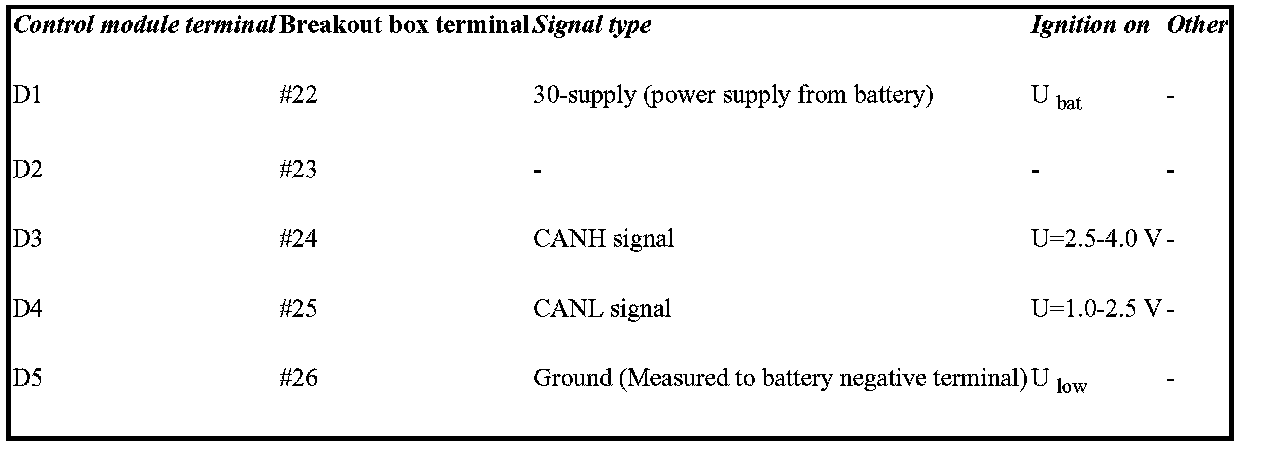

The road and traffic information (RTI) control module terminals D1-D5 correspond to terminals #22 - #26 on the breakout box.

RTI control module (to TV receiver)
Before taking readings, the breakout box must be connected and the ground terminal must be checked.

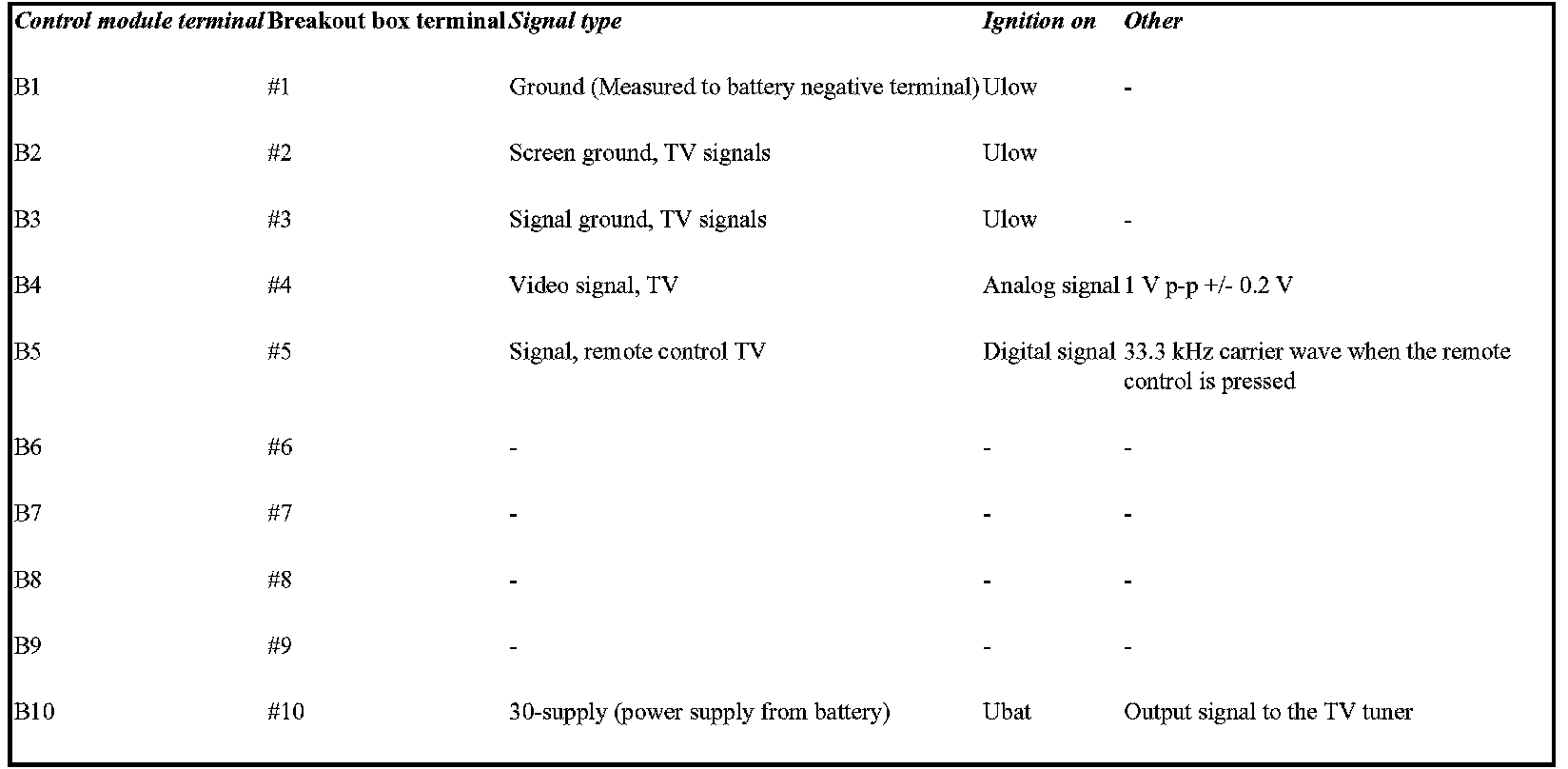

The RTI control module terminals B1 - B10 correspond to terminals #1 - #10 on the breakout box.

RTI control module (to display)
Before taking readings, the breakout box must be connected and the ground terminal must be checked.

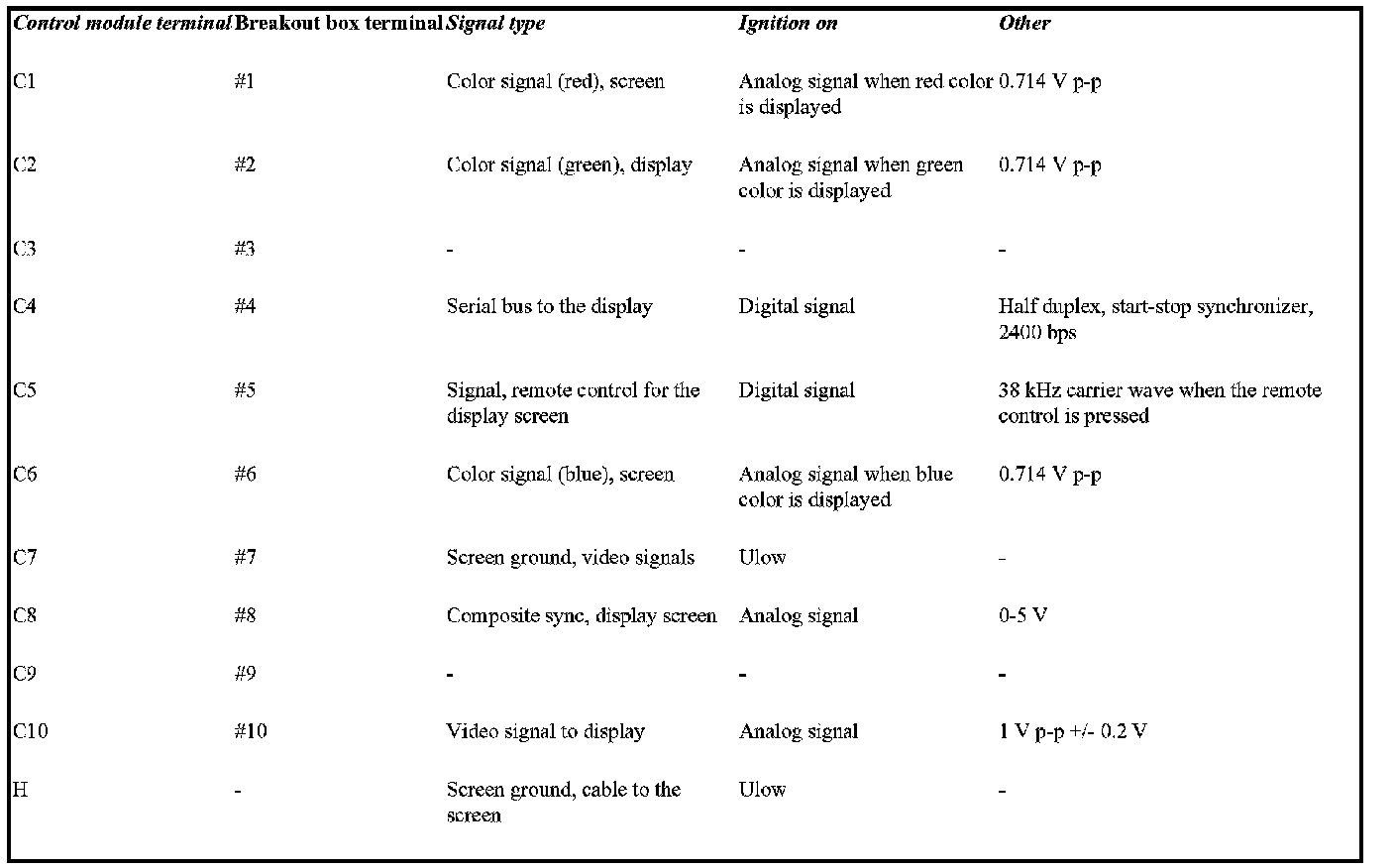

The RTI control module terminals C1 - C10 correspond to terminals #1 - #10 on the breakout box.

RTI control module (to audio unit)
Before taking readings, the breakout box must be connected and the ground terminal must be checked.

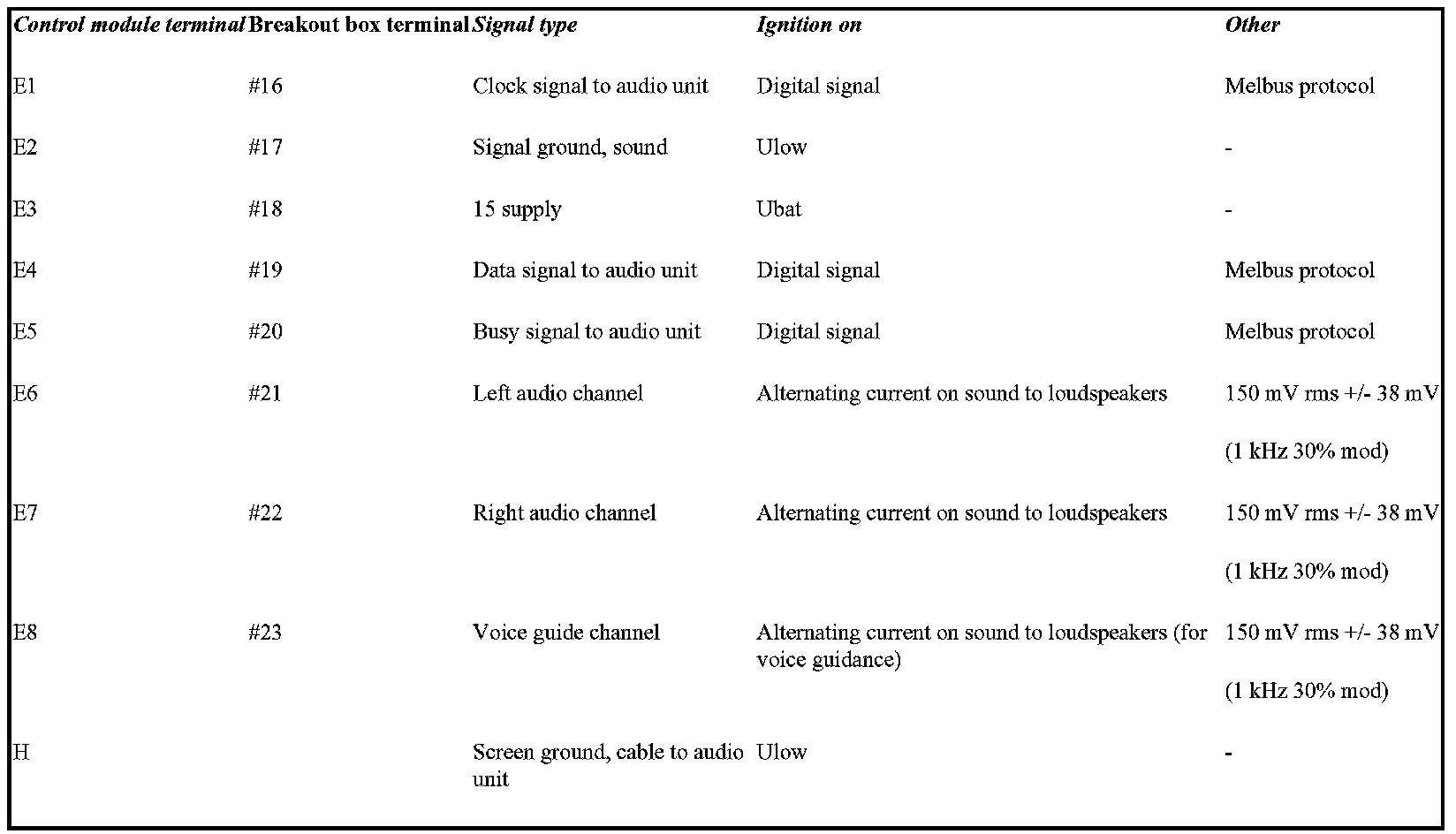

The RTI control module terminals E1 - E8 correspond to terminal #16 - #23 on the breakout box.

RTI control module (to TV receiver)
Before taking readings, the breakout box must be connected and the ground terminal must be checked.

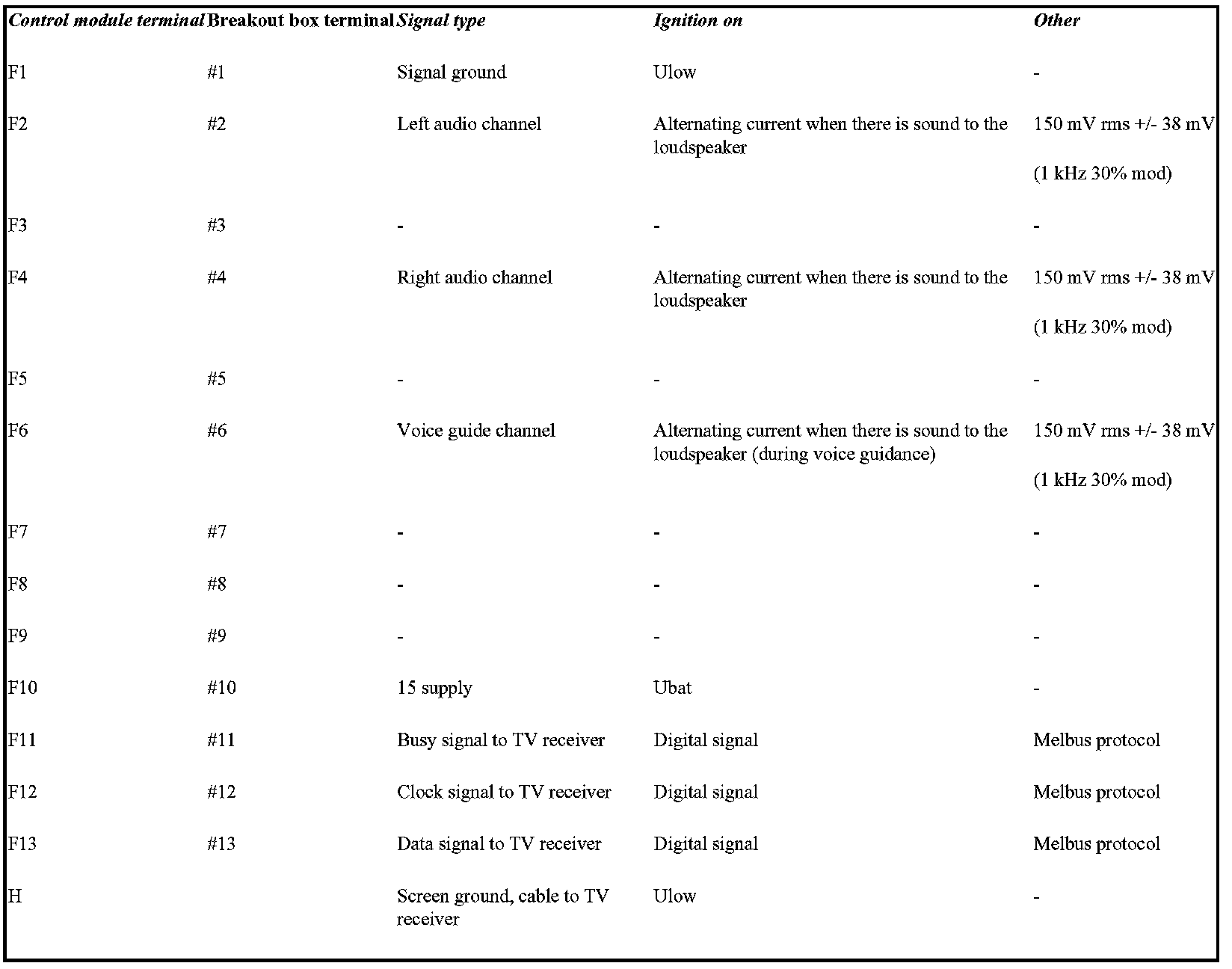

The RTI control module terminals F1 - F13 correspond to terminals #1 - #13 on the breakout box.

RTI control module (to GPS antenna, gray connector)
Before taking readings, the breakout box must be connected and the ground terminal must be checked.










RTI control module (to TMC (FM - MPX) antenna, brown connector)
Before taking readings, the breakout box must be connected and the ground terminal must be checked.










Display (to the road traffic information (RTI) control module)
Before taking readings, the breakout box must be connected and the ground terminal must be checked.

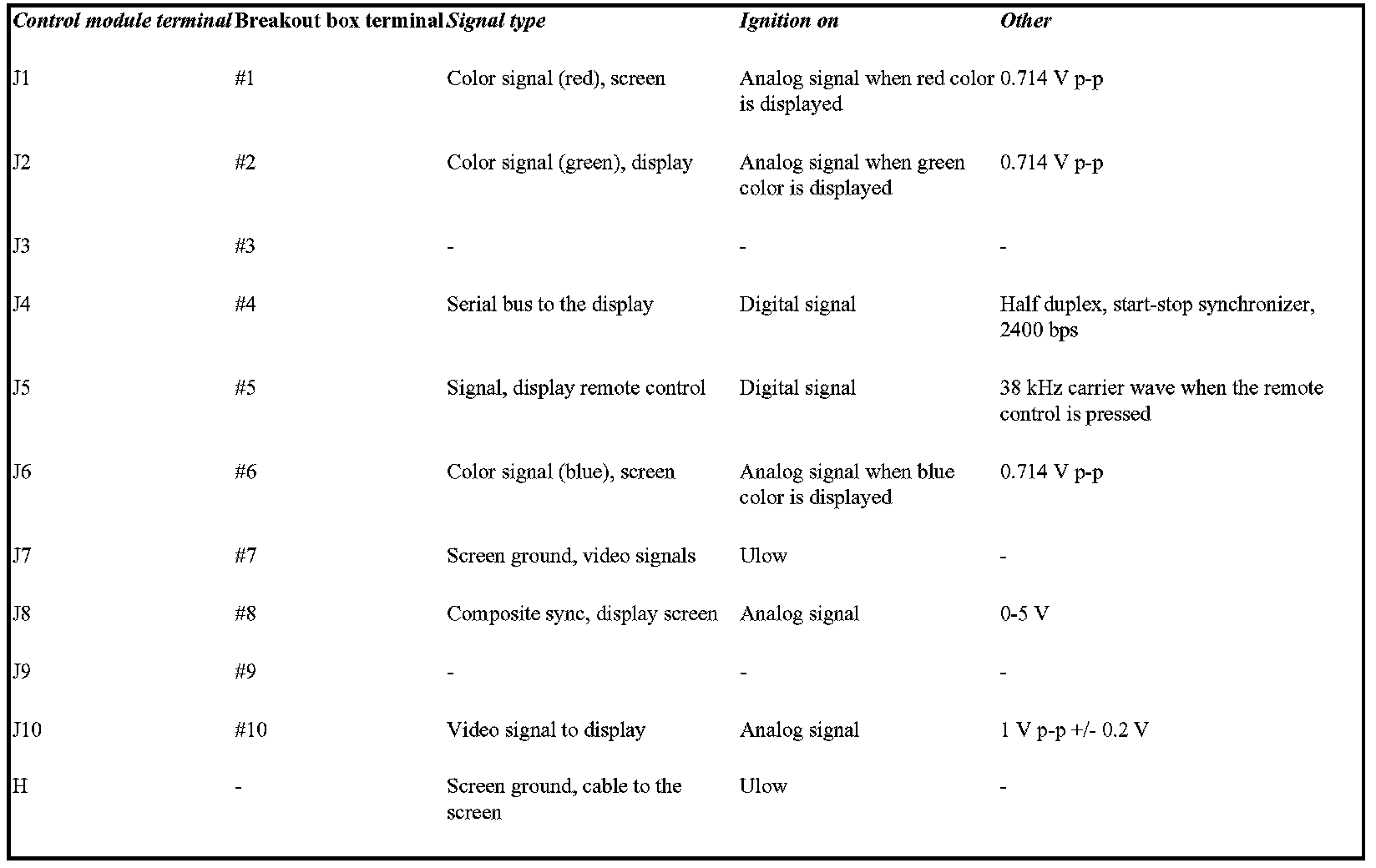

Display terminals J1 - J10 correspond to terminals #1 - #10 on the breakout box.

Display
Before taking readings, the breakout box must be connected and the ground terminal must be checked.










TV receiver (to RTI control module)
Before taking readings, the breakout box must be connected and the ground terminal must be checked.

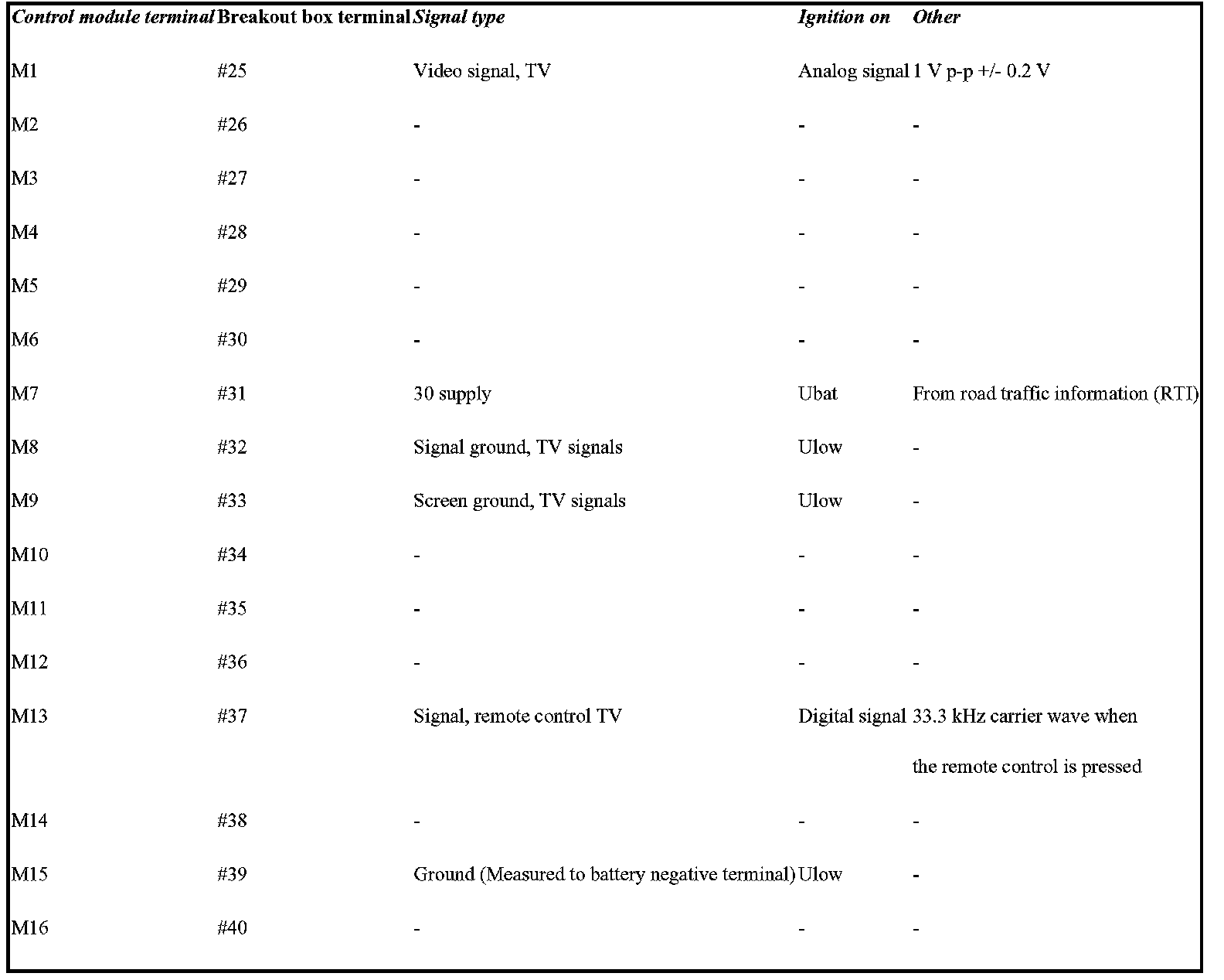

TV receiver terminals M1 - M16 correspond to terminals #25 - #40 on the breakout box.

TV receiver (to the video)
Before taking readings, the breakout box must be connected and the ground terminal must be checked.

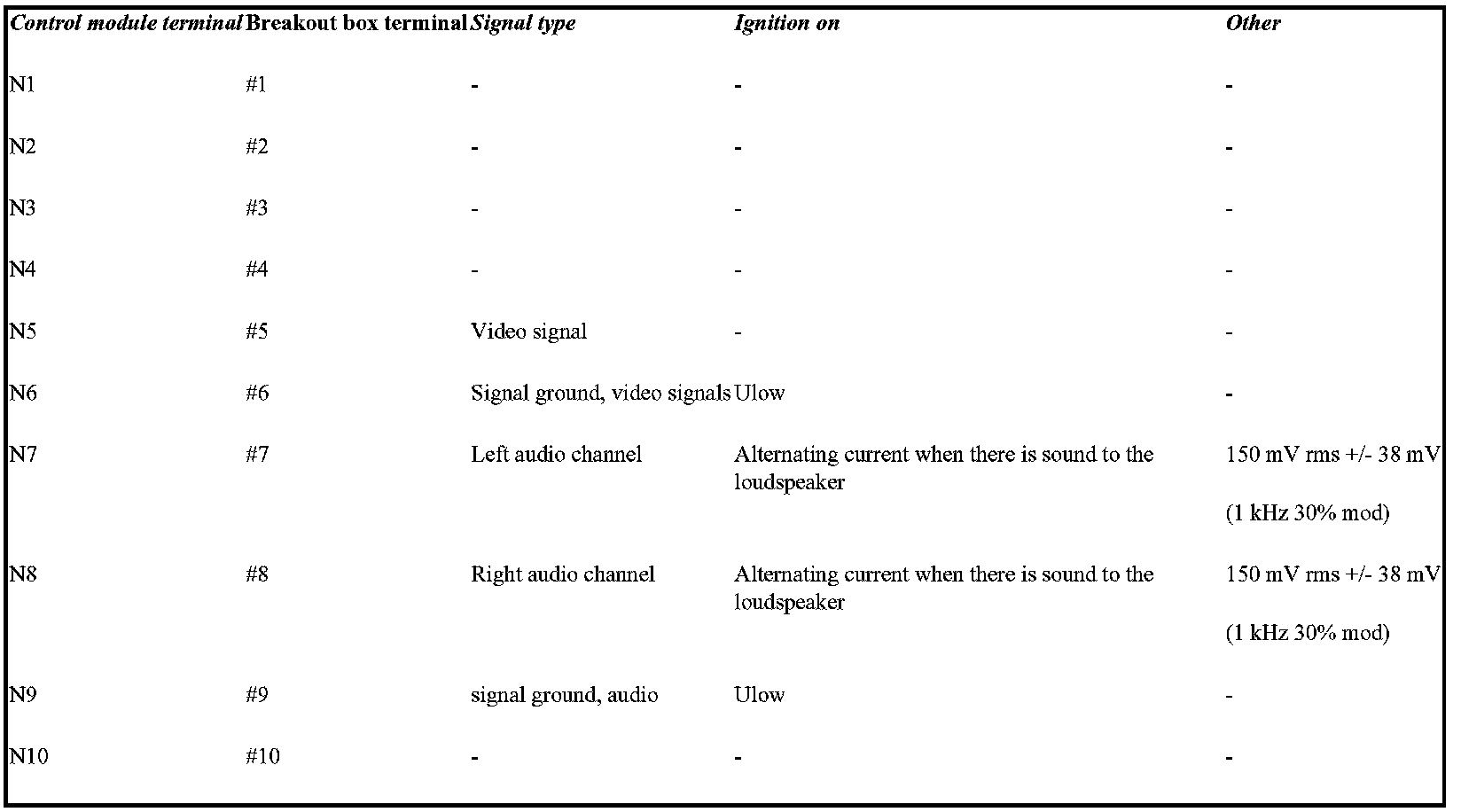

TV receiver terminals N1 - N10 correspond to #1 - #10 on the breakout box.

TV receiver (to RTI control module)
Before taking readings, the breakout box must be connected and the ground terminal must be checked.










TV receiver terminals O1 - O8 correspond to terminals #16 - #23 on the breakout box.

TV receiver (to CD player)
Before taking readings, the breakout box must be connected and the ground terminal must be checked.

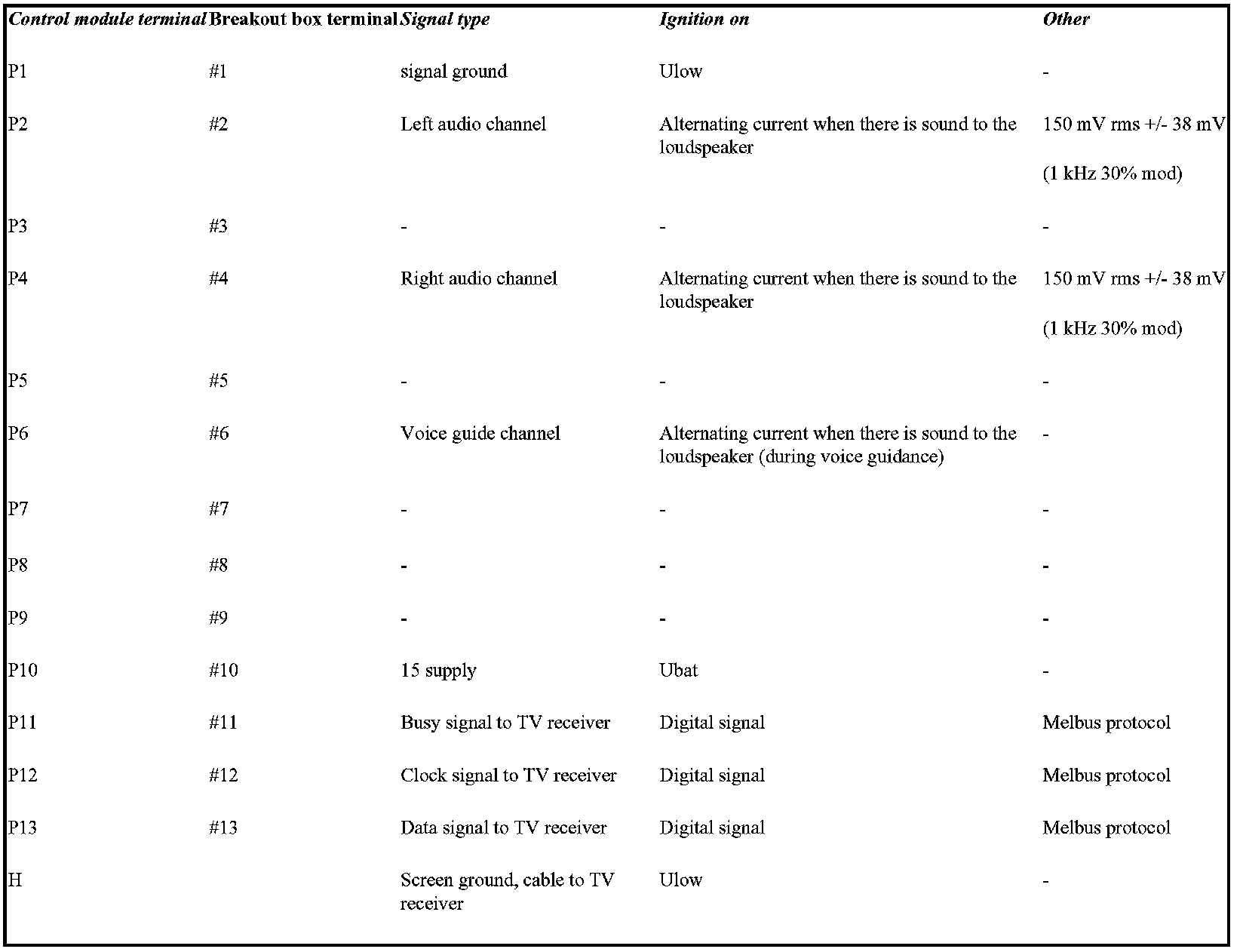

TV receiver terminals P1 - P13 correspond to terminals #1 - #13 on the breakout box.

TV receiver (to TV tuner A)
Before taking readings, the breakout box must be connected and the ground terminal must be checked.










TV receiver (to TV tuner B)
Before taking readings, the breakout box must be connected and the ground terminal must be checked.
