Home >> Volvo >> 2006 >> S60 2.5T AWD L5-2.5L Turbo VIN 59 B5254T2 >> Repair and Diagnosis >> Accessories and Optional Equipment >> Entertainment Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Signal Specification, Rear Sound Separation Electronic Module. Rear Seat Entertainment, Generation 4.1

Signal Specification, Rear Sound Separation Electronic Module. Rear Seat Entertainment, Generation 4.1

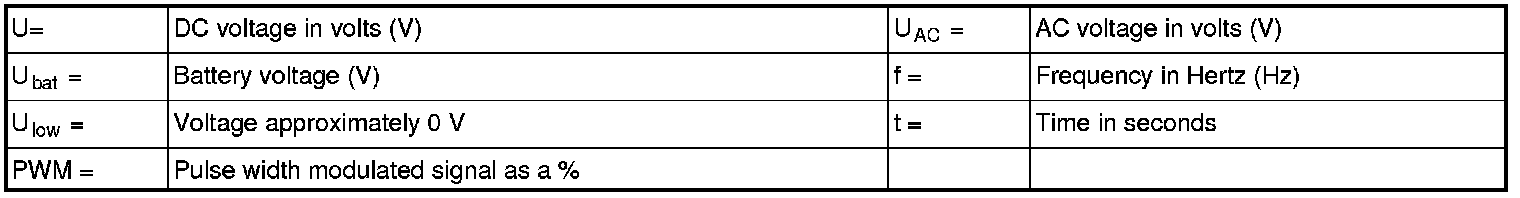

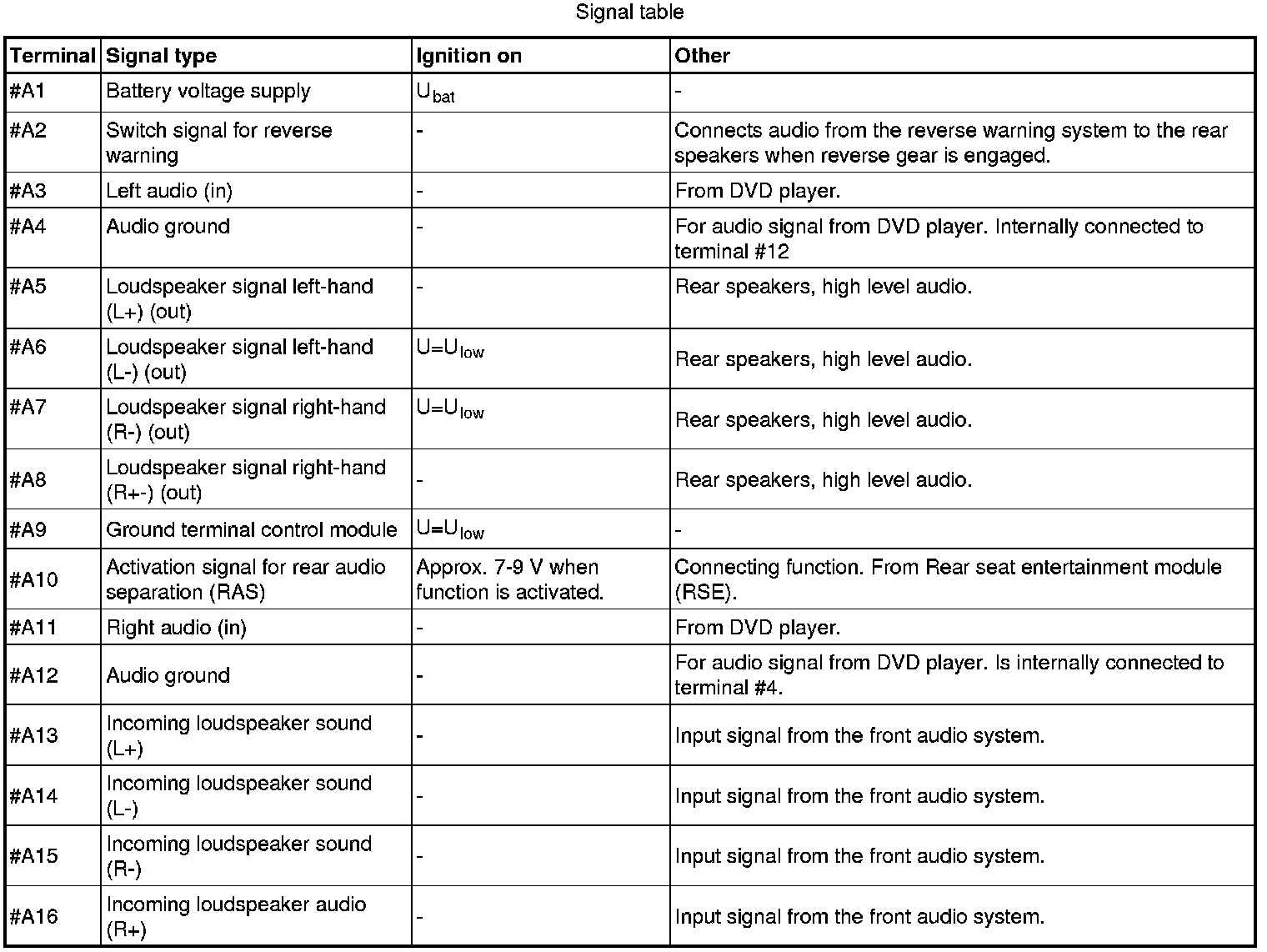

Signal specification, rear audio separation
