Diagnostic Trouble Code (DTC) Information

SRS-0020 Diagnostic trouble code information

Condition




If the circuit voltage is too high for more than 10 seconds, diagnostic trouble code SRS-0020 is displayed.

Substitute value
- Nothing.

Possible source
- Short circuit to voltage supply in igniter wire or connectors between the passenger air bag and the supplemental restraint system (SRS) control unit

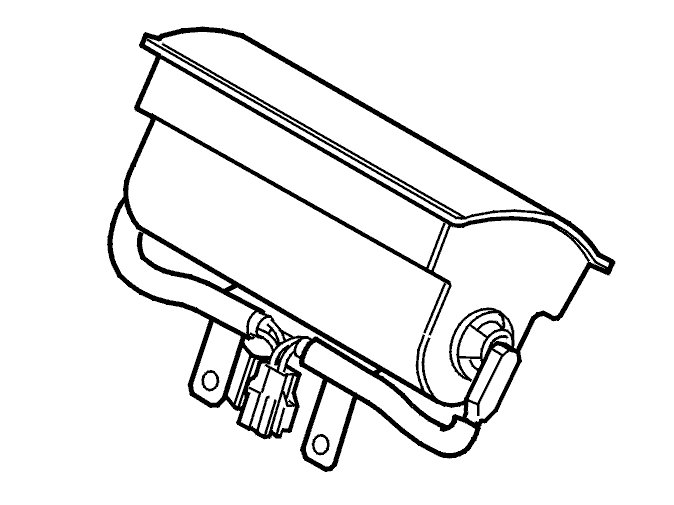

- Short circuit to voltage supply in passenger air bag.

Fault symptom[s]
- SRS warning lamp on.
