Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information REM-8B21

Condition

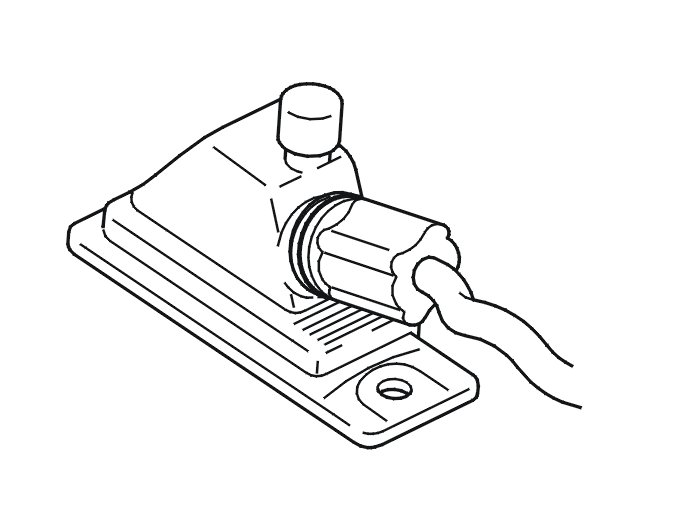

The rear electronic module (REM) powers the license plate lighting directly via an output.
The diagnostic trouble code (DTC) is stored if the rear electronic module (REM) detects a faulty signal.
The diagnostic trouble code (DTC) can be diagnosed at key position II.

Substitute value
- None.

Possible source
- Short-circuit to ground in the signal cable.

Fault symptom[s]
- The license plate lighting does not operate.
