Faulty Signal

Faulty signal

Checking components
Check that the engine speed (RPM) sensor is correctly installed.

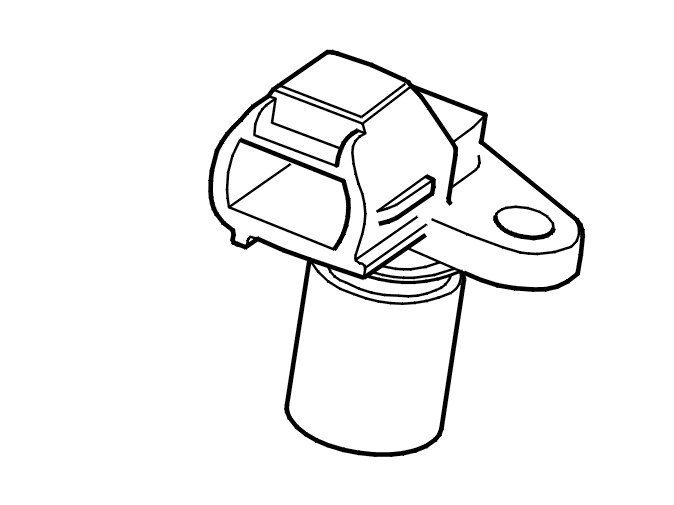

Check the engine speed (RPM) sensor. Check that it is not damaged or dirty.

Hint: The diagnostic trouble code (DTC) can be caused by damage in the flywheel / carrier plate. Look for damage to the flywheel / carrier plate.

Other information
- Engine speed (RPM) sensor, replacing Service and Repair






Continue - Verification

-------------------------------------------------

Verification




Verification

Verification

Hint: After carrying out the repair, check that the fault has been remedied.








- Ignition off
- Reconnect the connectors, reinstall components etc.
- Start the engine
- Read off the diagnostic status and fault status for the diagnostic trouble code (DTC) by selecting the relevant diagnostic trouble code (DTC) from the list.
Increase the engine speed a number of times until the diagnostic is "Complete".
Check the fault status for the diagnostic trouble code (DTC) when the diagnostic is "Complete". If the function is correct, the fault status must be "No fault found" when the diagnostic is complete.

Hint: In some cases several functions of the component will be diagnosed. The affects the amount of time taken to run the diagnostic.





Is the function OK?

Yes - VERIFIED

No - VERIFICATION FAILED

------------------------

VERIFICATION FAILED - Fault-tracing information

VERIFIED - Fault Found

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.

Do you want to exit fault-tracing?

Yes - FAULT-TRACING FAILED

No - Attempt New Test

------------------------

FAULT-TRACING FAILED - FAULT-TRACING FAILED

Attempt New Test - Checking components

-------------------------------------------------
