Signal Too Low
Signal too low
Checking components and wiring
Check the cable that relates to the diagnostic trouble code (DTC). Check for a short-circuit to ground.
Check between:

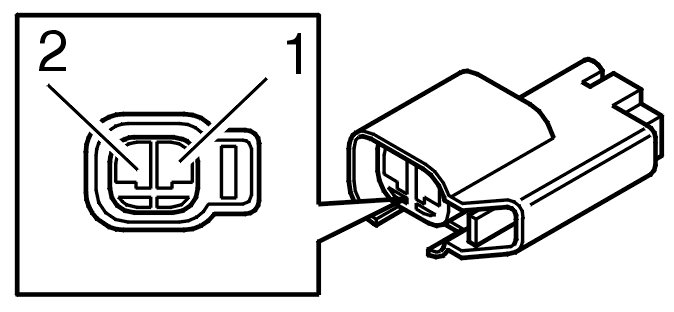

- Engine control module (ECM) terminal #A16 (#A16) and injector terminal #2 (ECM-200D, injector 1)
- Engine control module (ECM) terminal #A34 (#A34) and injector terminal #2 (ECM-201D, injector 2)
- Engine control module (ECM) terminal #A15 (#A15) and injector terminal #2 (ECM-202D, injector 3)
- Engine control module (ECM) terminal #A33 (#A33) and injector terminal #2 (ECM-203D, injector 4)
- Engine control module (ECM) terminal #A14 (#A14) and injector terminal #2 (ECM-204D, injector 5).
Remedy as necessary.
Other information
- Connecting the breakout box, B5244T5, B5254T2 Connecting the Breakout Box
- Signal specification Signal Description / Specification
- Injectors/pulsation dampers, replacing Service and Repair
- Checking wiring and terminals Checking Wiring And Terminals
Continue - Verification
-------------------------------------------------
Verification
Verification
Hint: After carrying out the repair, check that the fault has been remedied.
- Ignition off
- Reconnect connectors, reinstall components etc.
- Ignition on
- Activate the relevant injector.
A "click" should be heard when the injector is activated.
Is the injector working?
Yes - VERIFIED
No - VERIFICATION FAILED
------------------------
VERIFICATION FAILED - Fault-tracing information
VERIFIED - Fault Found
-------------------------------------------------
Fault-tracing information
Information
Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.
Do you want to exit fault-tracing?
Yes - FAULT-TRACING FAILED
No - Attempt New Test
------------------------
FAULT-TRACING FAILED - FAULT-TRACING FAILED
Attempt New Test - Checking components and wiring
-------------------------------------------------
