Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information CEM-8F11

Condition




The central electronic module (CEM) checks the signal for the headlamp beam height control.
The diagnostic trouble code (DTC) is stored if the central electronic module (CEM) detects that the voltage to headlamp beam height control exceeds 90% of the supply voltage.
The diagnostic trouble code (DTC) can be diagnosed at ignition switch position II.

Substitute value
- None.

Possible source

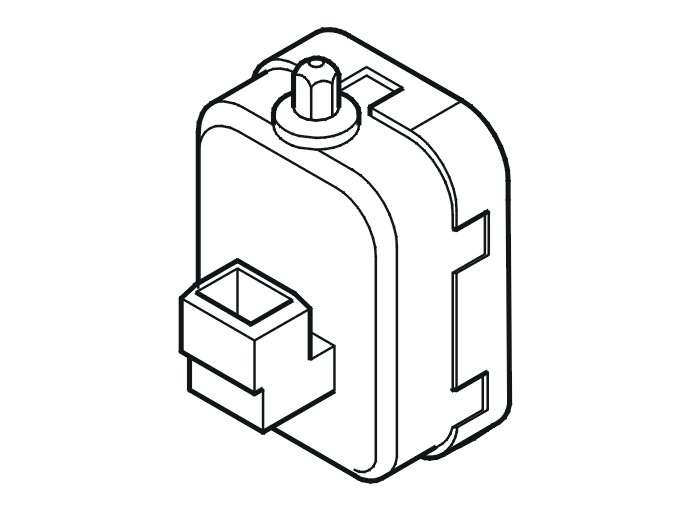

- Damaged actuator motor for headlamp beam height control
- Short-circuit to supply voltage in signal cable.

Fault symptom[s]
- Incorrect setting for low beam.
