Faulty Signal

Faulty signal

Checking the function of the water pump




- Ignition on.
- Activate the combustion fan.
Listen for a buzzing sound which indicates that the combustion fan is running.





Is the combustion fan working?

Yes - Checking components and wiring

No - Checking components and wiring

-------------------------------------------------

Verification




Verification

Verification

Hint: After carrying out the repair, check that the fault has been remedied.








- Ignition off
- Reinstall the connectors, components etc.
- Ignition on
- Activate the combustion fan.
Listen for a buzzing sound which indicates that the combustion fan is running.





Is the combustion fan working?

Yes - VERIFIED

No - VERIFICATION FAILEDPAPER

------------------------

VERIFIED - Fault Found

VERIFICATION FAILED - Fault-tracing information

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.

Do you want to exit fault-tracing?

Yes - FAULT-TRACING FAILED

No - Attempt New Test

------------------------

FAULT-TRACING FAILED - FAULT-TRACING FAILED

Attempt New Test - Checking the function of the water pump

-------------------------------------------------

Checking components and wiring

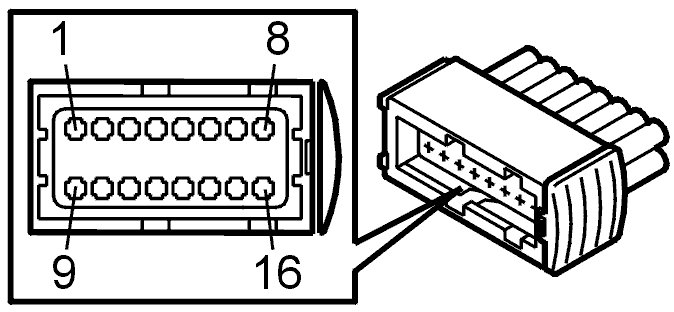

Check the electrical terminals for the combustion fan and the combustion preheater module (CPM) connector. Check for contact resistance and oxidation.
- Reinstall the components, reconnect the connectors etc.
- Ignition on
- Activate the combustion fan.
Listen for a buzzing sound which indicates that the combustion fan is running. If the combustion fan now operates, the cause of the fault was loose connections in the connectors.
The combustion fan must be replaced if no faults are found.
Remedy as necessary.

Other information
- Connecting the breakout box Connecting the Breakout Box
- Signal specification Signal Specification
- Fuel injection nozzle / fan motor / pressure equalizer, replacing Fuel Injection Nozzle / Fan Motor / Pressure Equalizer, Replacing
- Checking wiring and terminals Checking Wiring And Terminals






Continue - Verification

-------------------------------------------------

Checking components and wiring
Check the electrical terminals for the combustion fan and the combustion preheater module (CPM) connector. Check for contact resistance and oxidation.
Remedy as necessary.

Other information
- Connecting the breakout box Connecting the Breakout Box
- To access or replace the combustion fan, see: Fuel injection nozzle / fan motor / pressure equalizer, replacing Fuel Injection Nozzle / Fan Motor / Pressure Equalizer, Replacing
- Signal specification Signal Specification
- Checking wiring and terminals Checking Wiring And Terminals





Continue - Verification

-------------------------------------------------
