Power Steering - Pump and Harness Replacement
NO: 64-22DATE: 6-26-2007
MODEL:
S40, V50
YEAR:
2004-2006
SUBJECT:
Power Steering Pump and Harness Replacement
REFERENCE:
VIDA
THIS TNN SUPERSEDES TNN 64-22 DATED 5-19-2006. THE LABOR OPERATION NUMBER HAS CHANGED. PLEASE UPDATE YOUR FILES.
DESCRIPTION:
There is a new version of the power steering pump. With the introduction of the new power steering pump, the separate fluid reservoir with delivery hose will be discontinued. The fluid reservoir is now integrated in the power steering pump. The cable harness is also replaced with a new version.
This TNN describes replacement using the late edition power steering pump and conversion of the cable harness to fit the new power steering pump.

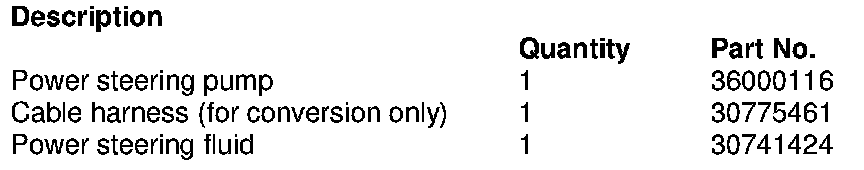

MATERIAL
SERVICE:
Power steering pump, replacing
Note!
As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.
1. Preparatory work
Ignition off.
Remove:
- the negative battery cable. See:
^ Removal, replacement and installation
^ Battery and mounting parts
^ Battery
- both headlamps. See:
^ Removal, replacement and installation
^ Front lighting
^ Headlamp/bulb, replacing
- the bumper shell. See:
^ Removal, replacement and installation
^ Bumper, mud flap
^ Bumper front, replacing
Note:
be sure to also disconnect front fog light wiring, if so equipped.
2. Removal
Removing power steering pump

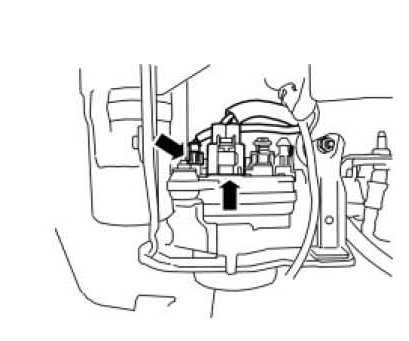

Disconnect the 2 electrical connectors.

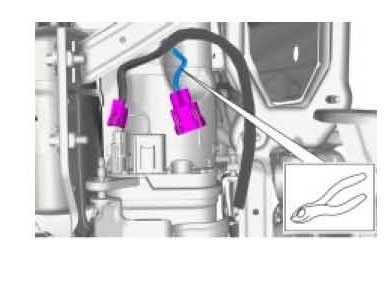

Suck up the fluid in the reservoir. Use fluid evacuation equipment 951 2859.
Warning!
Be ready to catch all the fluid that runs out. Place a receptacle under the pump.

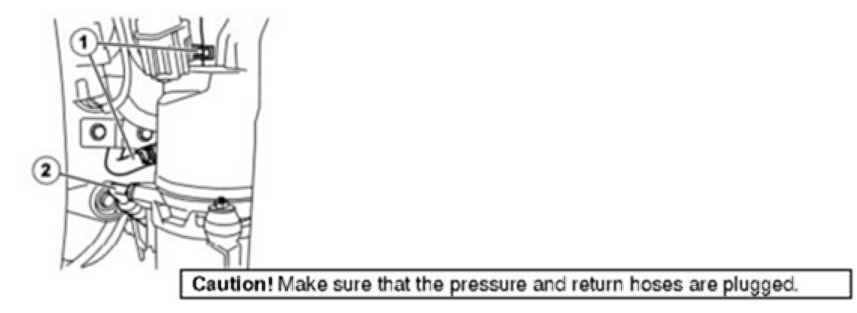

Remove:
- the 2 hoses (1)
- the pipe (2)
Caution!
Make sure that the pressure and return hoses are plugged.

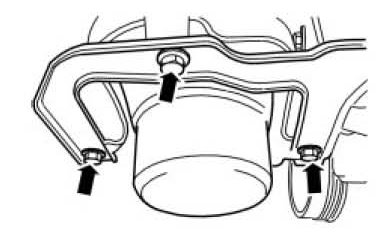

4. Remove:
- 3 screws
- the power steering pump

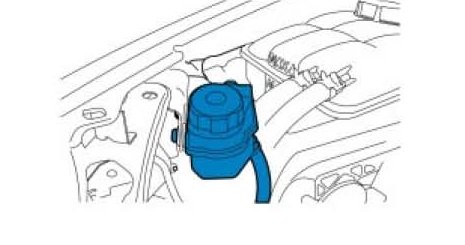

5. Remove the fluid reservoir and the hose to the power steering pump, by pushing up on the reservoir. Discard these pieces.
6. Installation
Installing power steering pump

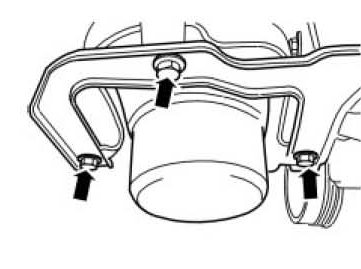

Install:
- the power steering pump
- the 3 screws. Tighten to 25 Nm /19 lb-Ft.

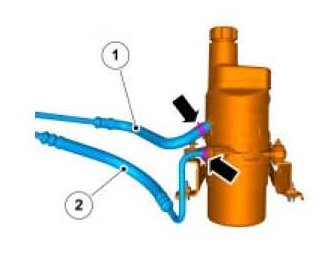

7. Reinstall:
- the return hose (1) with clamp to the pump reservoir
- the delivery pipe to the power steering pump (2) and tighten to 30 Nm /23 Lb-Ft.
8. Cable harness, conversion
Cut the cables of the larger connector at the front of the pump (large red and black cables). Isolate cut cables by wrapping with plastic tape.
9. Removing cable terminals

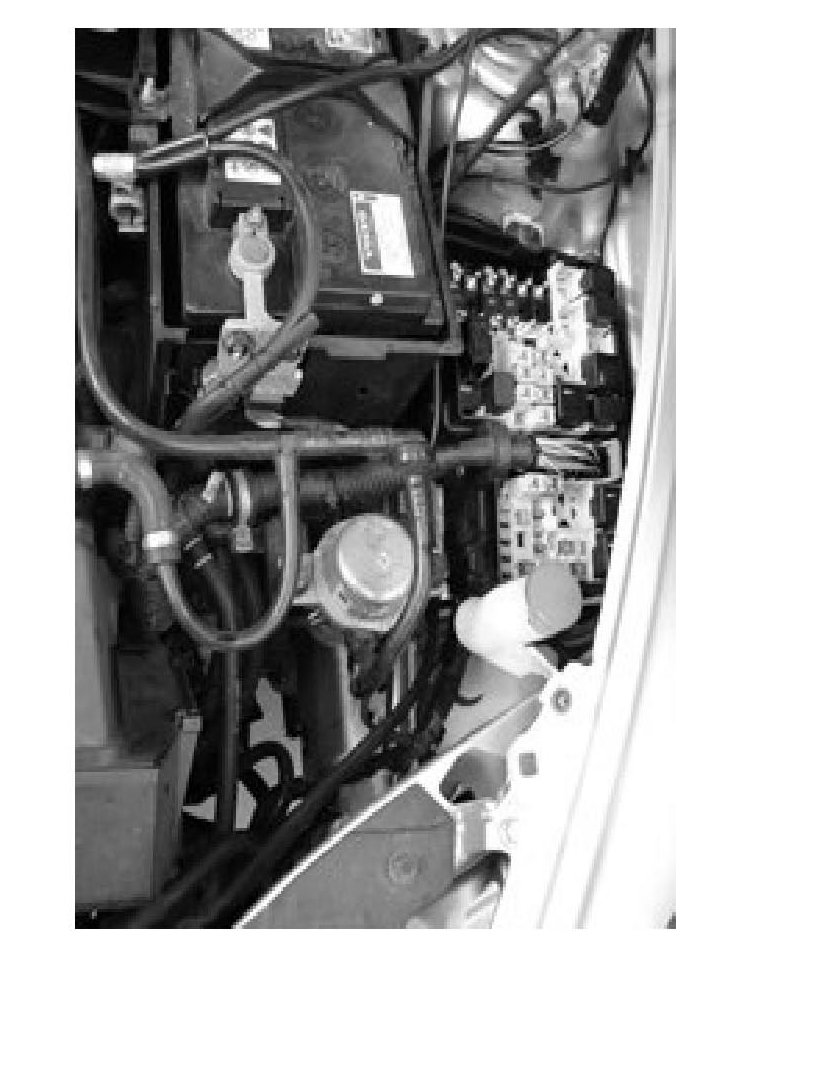

- Remove fuse F2 for the power steering pump.

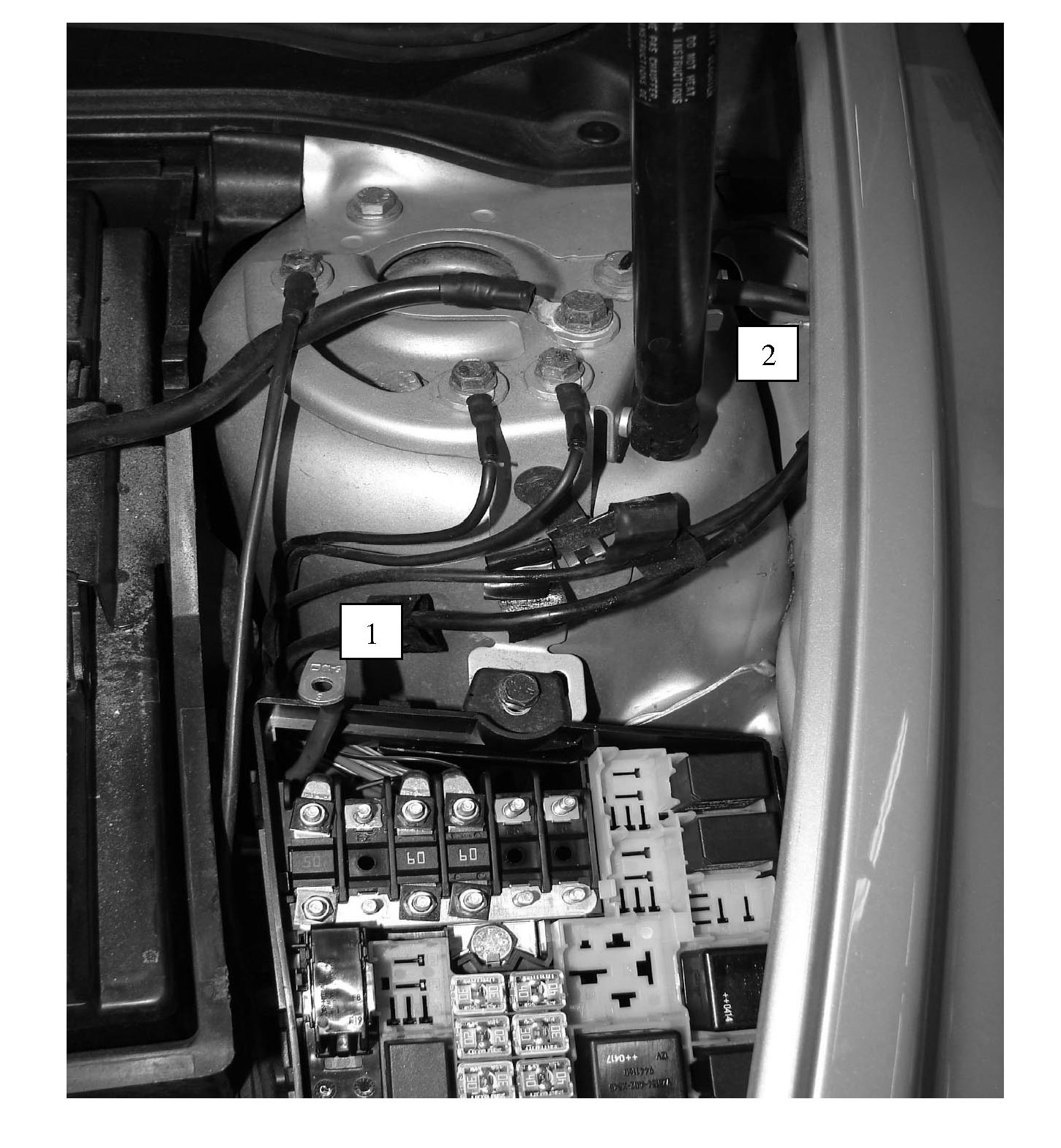

- Pull up the red cable under the fuse post [1], and cut it behind the cable terminal. Isolate cut cable by wrapping with plastic tape, and press it down into the fuse holder.
- Remove the ground cable for the power steering pump (the larger 4 sq2 cable, behind hood strut in this photo [2]) and cut the cable terminal. Isolate cut cable by wrapping with plastic tape.
10. Installing the new cable harness
Install:

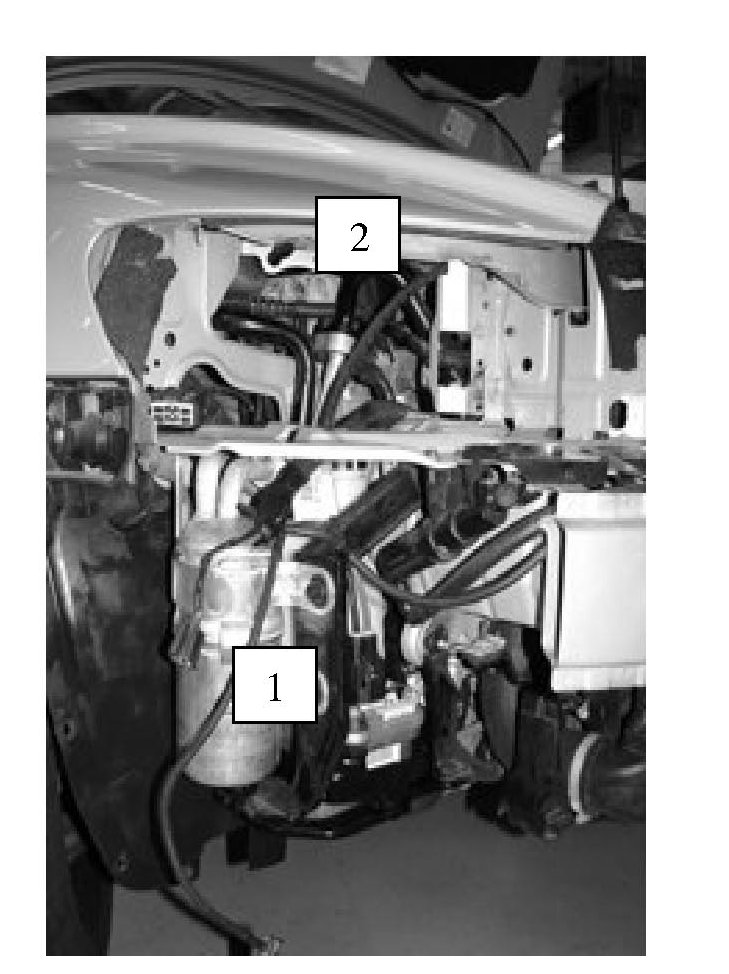

- First install the large connector of the new cable harness onto the power steering pump [1].
- Route the harness directly upward toward coolant overflow bottle [2].
Note!
Be sure to leave enough slack to avoid conflict with headlamp assy.
- Route cable along front of car, above radiator. Use 3 clips [1, 2, 3] on harness to attach harness to coolant overflow hose.
- Route cable between battery and fuse box, using wire ties to secure cable to existing harness at front of fuse box.
- Install positive (red) cable at fuse box. Reinstall fuse. Tighten to 5 Nm /4 Lb-Ft.
- Install negative (black) cable at previously removed ground connection. Tighten to 10 Nm /8 Lb-Ft.
- Connect the smaller electrical connector to the power steering pump.
11. Finishing work

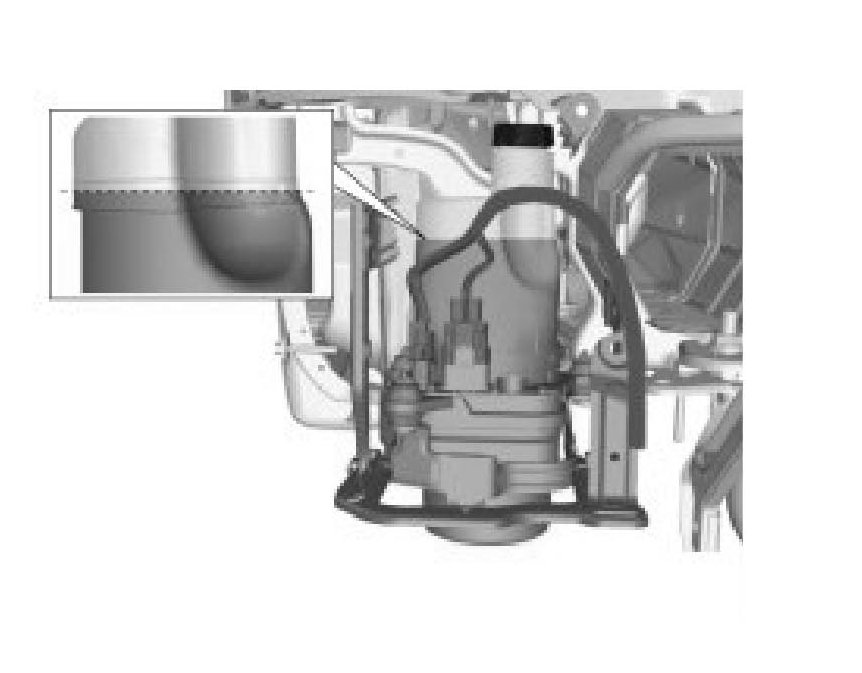

- Fill with power steering fluid up to the mark on the reservoir. Use Volvo power steering fluid, part no. 30741424.
12. Install
- the bumper shell. See:
^ Removal, replacement and installation
^ Bumper, mud flap
^ Bumper front, replacing
Note:
reinstall fog lamp wiring connectors, it equipped.
- both headlamps. See:
^ Removal, replacement and installation
^ Front lighting
^ Headlamp/bulb, replacing
- the negative battery cable. See:
^ Removal, replacement and installation
^ Battery and mounting parts
^ Battery
Order software and program. See: Removal, replacement and installation
^ Wheel suspension, steering
^ Electrical power steering
13. module (EPS), replacing
Start the engine and bleed the power steering system through full steering wheel movements, alternating left and right until the steering feels good.
Note!
After moving the steering wheel a few turns, move the vehicle a bit so that the tires are not loaded too hard in one spot.

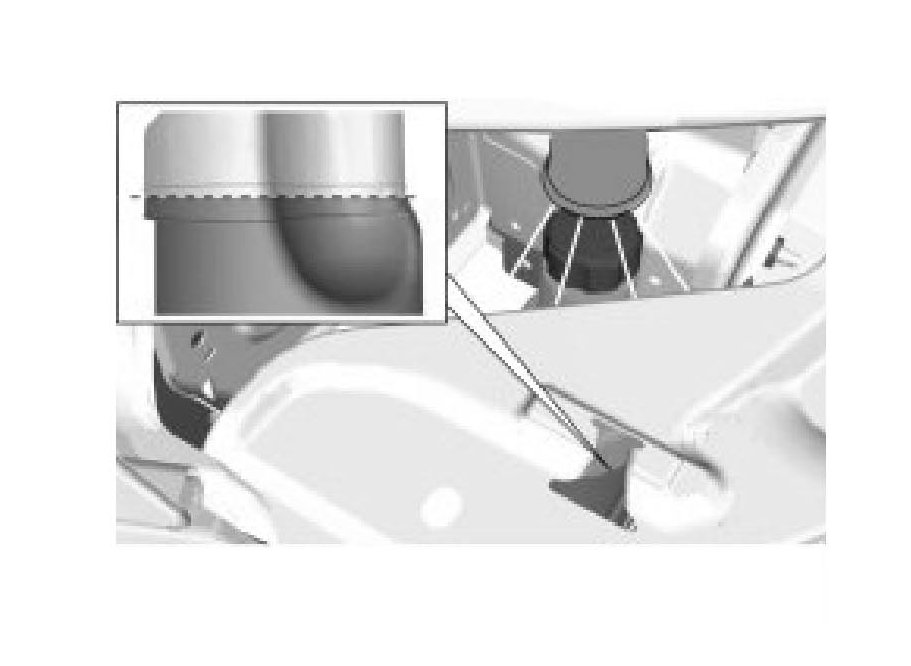

Recheck the fluid level. See:
^ Cleaning, checking and adjusting
^ Wheel suspension, steering
^ Power steering pump, fluid level check.
^ Re-bleed if necessary.
WARRANTY CLAIM INFORMATION
