Windows - Rear Window Fails To Lower Using Global Open
TIE Technical JournalTitle Rear window does not lower when using Global Open
Ref No US15943.1.0 en-GB
Issuer -
Partner 3 US 7510 Volvo Cars North America
Func Group 9353
Func Desc electric motor
Status Released
Status Date 2007-05-08
Reference

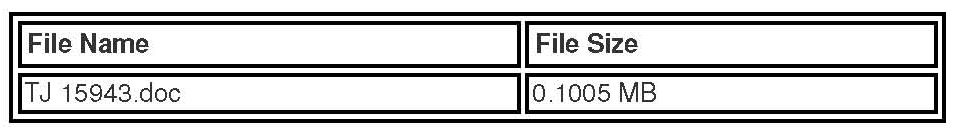

Attachment

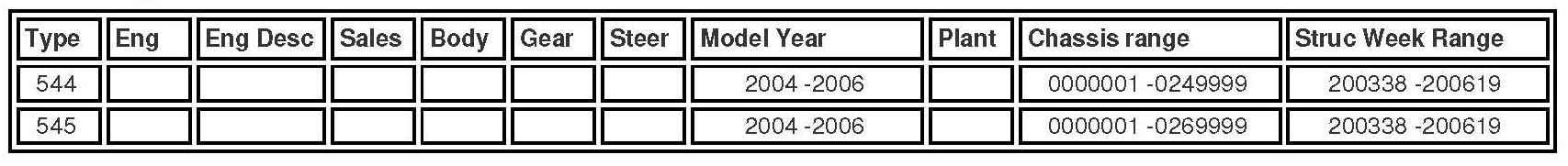

Vehicle Type

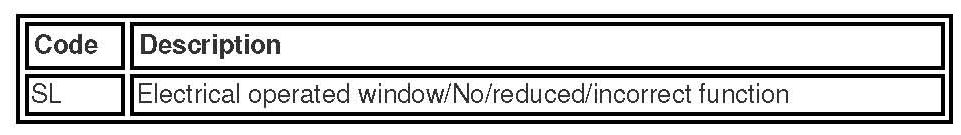

CSC
DTC
Text
DESCRIPTION:
After activation of Global Open one or more rear windows may tail to open completely. Investigations have revealed that in cases where this concern occurs the rear windows have lost initialization. The initialization can be manually lost if the rear window switch is pulled up for short moment and then released before a new initialization routine is completed.
PRODUCT MODIFICATION:

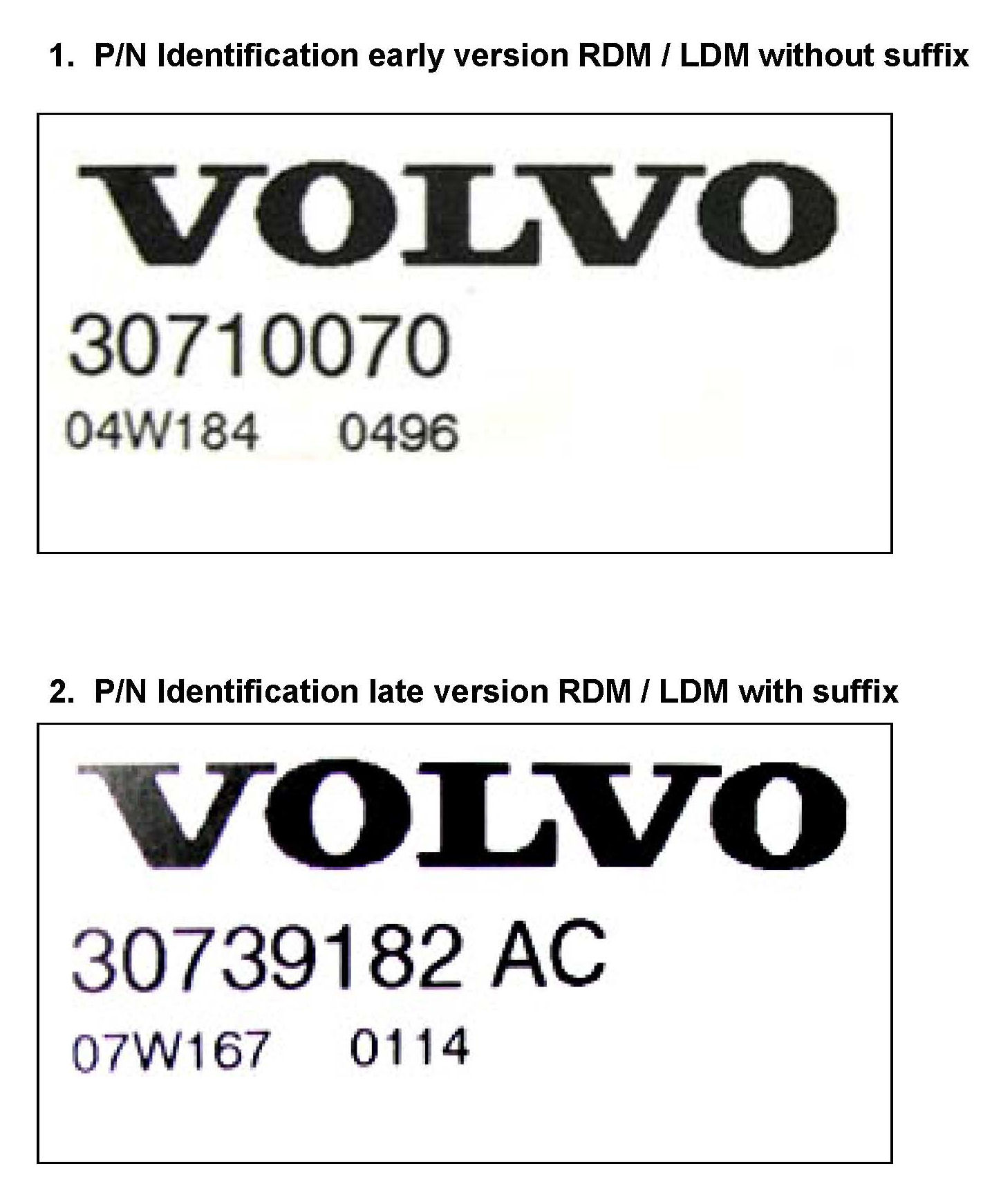

New LDM and RDM have been introduced with changed logic to prevent that initialization is lost. The new rear door modules can be identified by a two character suffix at the end of the P/N. See attachment for identification. All aftersales inventory are now of the new type.
Early type RDM/LDM P/N XXXXXXXX
Late type RDM/LDM P/N XXXXXXXX-XX
MATERIAL RETURN: No
TECHNICAL REPORT: No
SERVICE:
Replace the RDM or LDM if the door modules are of the early type and the customer concern is reported.
VSTG OPERATION NUMBER:
36071-2 Control module rear door LDM/RDM replace
