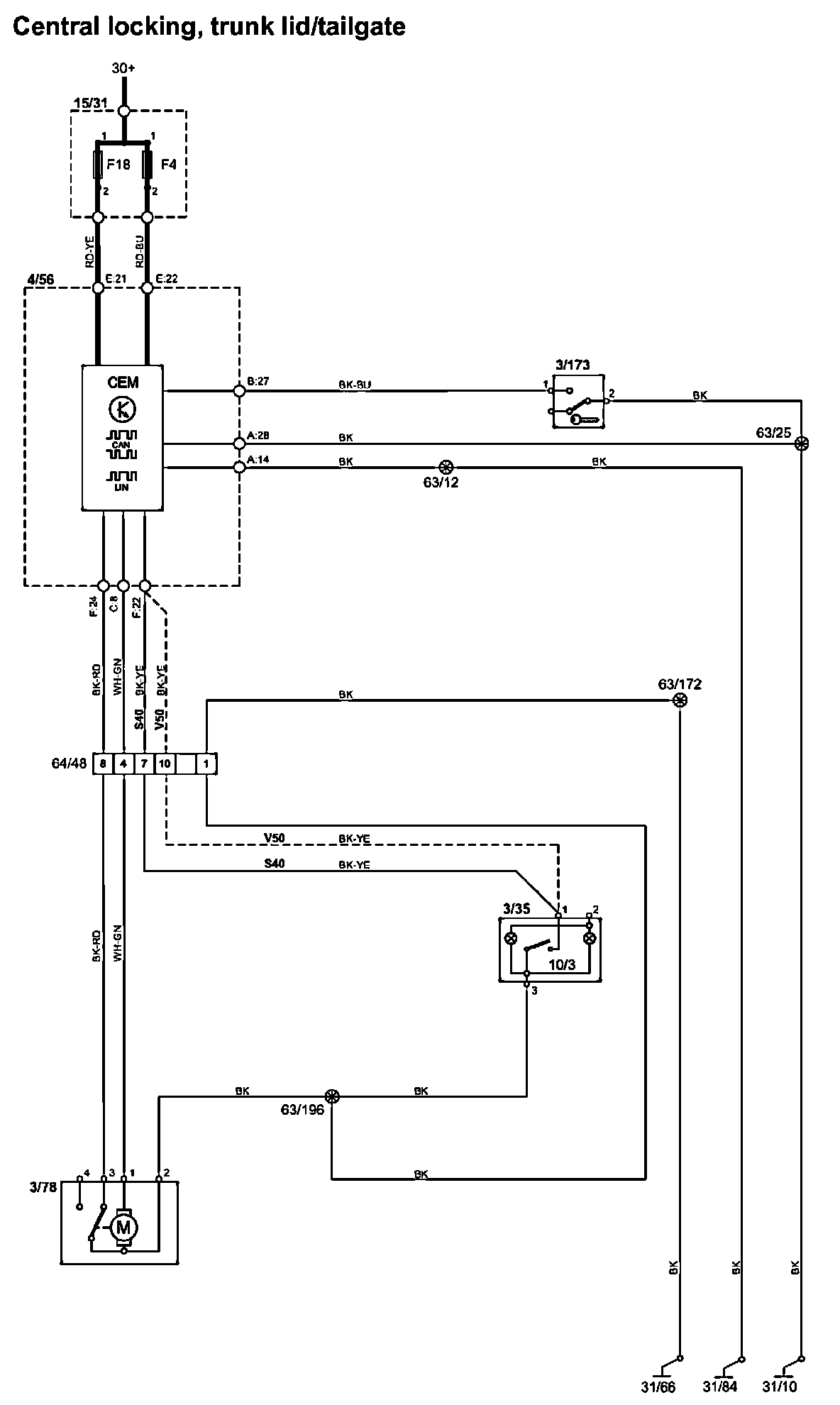

Central Locking, Trunk Lid/Tailgate



Central Locking, Trunk Lid/Tailgate

Central Locking,Trunk Lid/Tailgate:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code Identification and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
